Description

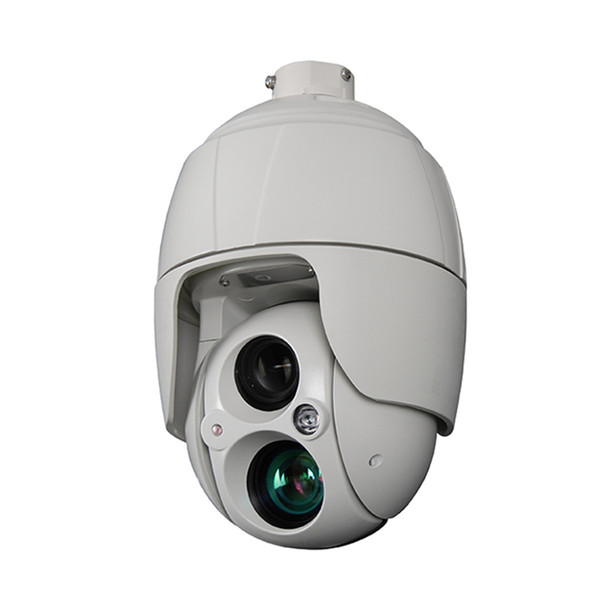

Digital Watchdog DWC-MPTZ30X 2.1MP IR Outdoor PTZ Dome IP Security Camera
The MEGApix® 30x PTZ Camera delivers crystal-clear 2.1 Megapixel (1080p) resolution video at real-time 30fps and Smart IR™ up to 1300ft (400m). The camera features 30x optical zoom, 16x digital zoom and 0~360° endless pan in an IP66 weather resistant dome housing. A wall mount and ceiling mount are available, sold separately and necessary to complete the camera's installation.
Key Features:
- 2.1 Megapixel Image Sensor (1080p, 30fps)
- Wide Dynamic Range (WDR)
- Multiple Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
- 4.3 ~ 129mm Remote Auto Focus Lens
- 1/2.8″ CMOS Sensor
- 30x Optical Zoom + 16x Digital Zoom
- Smart IR™ with Intelligent Camera Sync. 1300ft Range
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night with Mechanical IR Cut Filter
- Digital Image Stabilizer (DIS)
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- Programmable Privacy Zones
- Motion Detection
- Pan 0~360° Endless, 380° Per Second Pan Speed
- Vector Drive Technology - Pan/Tilt Motion in Shortest Path
- 2-Way Audio
- 256 Preset Positions, 8 Patterns, 8 Tours
- Micro SD/SDHC/SDXC Class 10 Card Slot for Emergency Backup (card not included)
- Alarm Sensor Input
- Relay Output
- Web Server Built-in
- PoE Injector and DC12V, 55W PoE Injector Included
- ONVIF Conformant, Profile S
- IP66 Certified (Weather Resistant)
Downloads
Datasheet
DWC-MPTZ30X-A1.pdf
Quick Start Guide
DWC-MPTZ30X-Quick_Start_Guide-A1.pdf
User Manual
DWC-MPTZ30X-User-Manual-A1.pdf
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compression:
|
MJPEG
H.264
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Key Features:
|
ONVIF
Motion Detection
|
|
Lens Size:
|
4.3~129mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Night Vision Range (ft):
|
1300
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Optical Zoom:
|
30x Optical Zoom
|
|
Product Series:
|
Digital Watchdog MEGApix Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2.1MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
