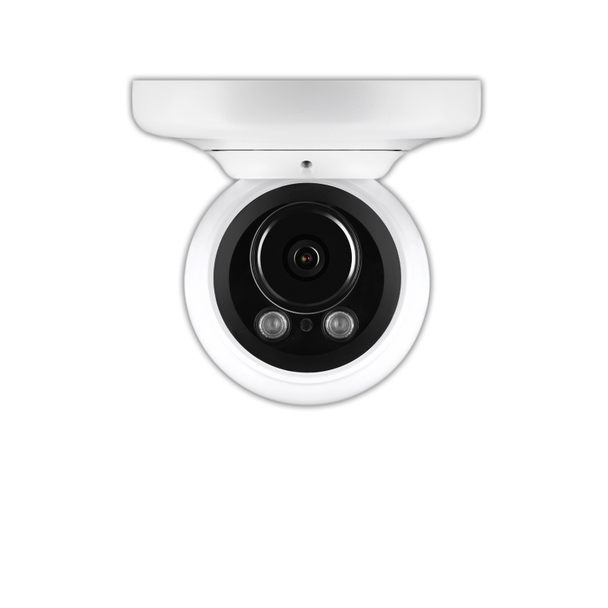

Digital Watchdog DWC-MVA5Wi28T 5MP Night Vision Outdoor Eyeball IP Security Camera
✅ Help me pick a security camera
- Compression : H.264, H.265, MJPEG,
- Field of View (Horizontal) : 103°Field of View
- Max. FPS and Resolution : 30fps at 2592 x 1944
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Protection Code : IP67 IK10
- Material : Aluminum
- Environmental : Outdoor
- Sensor Size : 1/2.8"
- Aperture : F1.8
Description
Digital Watchdog DWC-MVA5Wi28T 5MP Vandal Resistant Outdoor Eyeball IP Security Camera with Color in Near-Total Darkness and IR
This MEGApix IVA IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera features Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The weather-resistant vandal ball cameras are IP67-rated and offer true 90° tilting and 360° rotation, eliminate IR reflections and offer easy angle adjustment to pan, rotate and tilt the camera for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR with intelligent camera sync and no IR reflection
- Vandal ball housing reduces IR reflection with true 90° tilting and 360° rotation
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Compatible products
Additional Information
Aperture:
|
F1.8
|
Built-in Analytics:
|
Built-in Analytics
|
Camera Style:
|
Eyeball
|
Certifications:
|
CE
FCC
RoHS
|
Compatible Integration (API):
|
ONVIF Profile S
|
Compression:
|
H.264
H.265
MJPEG
|
Connection Type:
|
Wired
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
Dimensions:
|
125 x 122 mm (4.92 x 4.8 in)
|
Durability:
|
Vandal Proof
Weatherproof
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
103
|
Iris:
|
Fixed Iris
|
Lens Size:
|
2.8mm
|
Lens Type:
|
Fixed Lens
|
Material:
|
Aluminum
|
Max Power Consumption:
|
6.5 Watts
7.8 Watts
|
Max. FPS and Resolution:
|
30fps at 2592 x 1944
|
Minimum Illumination (B/W):
|
0 lux
|
Minimum Illumination (Color):
|
0.13 Lux
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
|
NDAA Compliance:
|
NDAA Compliant
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
Night Vision Range (ft):
|
100
|
Night Vision Type:
|
Night Vision (IR)
|
Noise Reduction:
|
3D DNR
|
Operating Humidity:
|
10% to 90% (non-condensing)
|
Operating Temperature:
|
-20 °C to 50 °C (-4 °F to 122 °F)
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Product Series:
|
Digital Watchdog MEGApix Series
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
5MP (3K)
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Shutter Speed:
|
1/15-1/32000s
|
Special Technologies:
|
Star-Light Plus
IVA (Intelligent Video Analytics)
|
Technology:
|
Network (IP)
|
Warranty:
|
5-year Manufacturer Warranty
|
Web Browser:
|
Internet Explorer
Safari
Chrome
Firefox
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
