Digital Watchdog DWC-PB2M4TIR 2.1MP IR Multi-sensor Outdoor IP Security Camera

Part Number: DWC-PB2M4TIR
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Digital Watchdog DWC-PB2M4TIR 2.1MP IR Multi-sensor Outdoor IP Security Camera
  • Digital Watchdog DWC-PB2M4TIR 2.1MP IR Multi-sensor Outdoor IP Security Camera
  • Digital Watchdog DWC-PB2M4TIR 2.1MP IR Multi-sensor Outdoor IP Security Camera

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : MJPEG, H.264,
  • Field of View (Horizontal) : 180°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 4.3mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP67
  • Color : Dark Gray
  • Environmental : Outdoor

Description

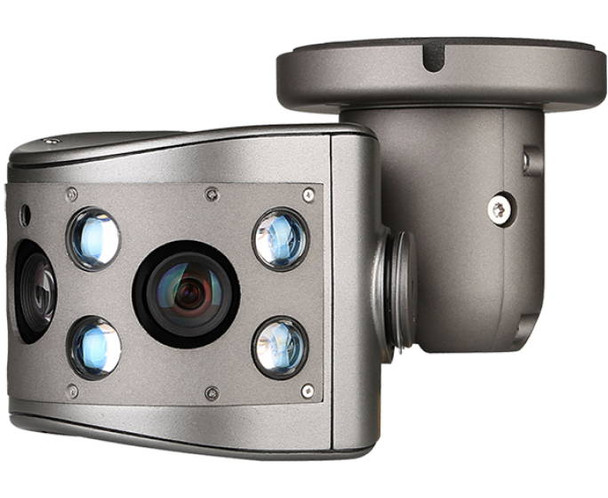

Digital Watchdog DWC-PB2M4TIR 2.1MP IR Multi-sensor Outdoor IP Security Camera

The DW® Three-Sensor 180° Panoramic IP Camera provides 1080p video streams at up to 30fps. Our revolutionary technology stitches the three images into a single 180° view. The user can zoom into the stitched image to the extent of each single 1080p sensor while maintaining the fast frame rate.

Key features of Digital Watchdog DWC-PB2M4TIR

  • 3x 2.1MP 1/2.8" Image Sensor at Real-time 30fps
  • 2.1MP 180° Panoramic View IP Camera
  • 3x 4.5mm Fixed Lens
  • Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
  • 114' Smart IR™ with Intelligent Camera Sync.
  • Two-Way Audio
  • Easy Image Alignment and Stitching
  • Smart DNR™ 3D Digital Noise Reduction
  • True Day/Night with Mechanical IR Cut Filter
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Auto White Balance (AWB)
  • Motion Detection
  • Micro SD/SDHC Class 10 Card Slot (card not included)
  • Alarm Sensor Input
  • Relay Output
  • Web Server Built-in
  • ONVIF Conformant, Profile S
  • PoE+ High Power and DC12V
  • IP67 Certified Weather and Tamper Resistant
  • 5 Year Warranty
Compatible Products:
  • DWC-BLJUNC Junction box for panoramic bullet cameras
  • DWC-PMB-BU Pole Mount Bracket

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Additional Features:
180-degree Panoramic View
Analytics:
Motion Detection
Angle of View:
180 Degree
Audio Capability:
Two-Way Audio
Built-in Features:
Built-in Web Server
Camera Style:
Multi-sensor
Color:
Dark Gray
Compatible Integration (API):
ONVIF
Compression:
MJPEG H.264
Day/Night:
ICR (True Day/Night)
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
180
Image Enhancements:
Auto Gain Control (AGC)
Lens Size:
4.3mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
115
Night Vision Type:
Night Vision (IR)
Product Series:
Digital Watchdog MEGApix PANO Series
Protection Code:
IP67
Resolution:
2.1MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Specialized Camera Feature:
Multi-directional
Technology:
Network (IP)
Warranty:
5-year Manufacturer Warranty
