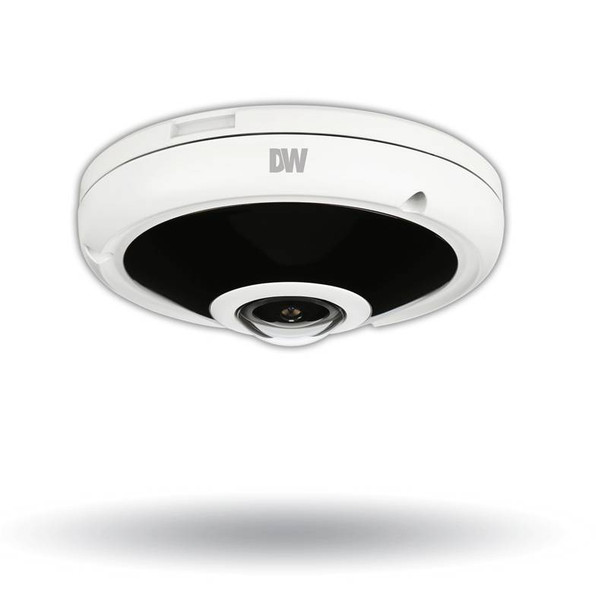

Digital Watchdog DWC-PVF5M1TIRC1 5MP IR Outdoor CaaS Fisheye IP Security Camera with 128GB Storage

(No reviews yet) Write a Review

SKU:

DWC-PVF5M1TIRC1

Description
Specifications
Additional Information

Description

Digital Watchdog DWC-PVF5M1TIRC1 5MP IR Outdoor CaaS Fisheye IP Security Camera with 128GB Storage

The MEGApix CaaS™ series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum IPVMS pre-loaded and on-board storage, MAKING EACH CaaS CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!

Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW Cloud online portal. On-board storage options at 256GB, 128GB or 64GB provide up to 30 days of retained video. Need more storage? Add a Blackjack® NAS device to any DW Spectrum system.

Key Features:

All-in-one cameras, no server required
5MP 1/1.8" image sensor at real-time 30fps
1.5mm fisheye lens
Built-in 256/128/64GB storage options for up to 30 days retained video*
Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic views
Edge-to-edge image clarity
Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
24/7 access to live and recorded video feed
Automatic installation and licensing with first power on

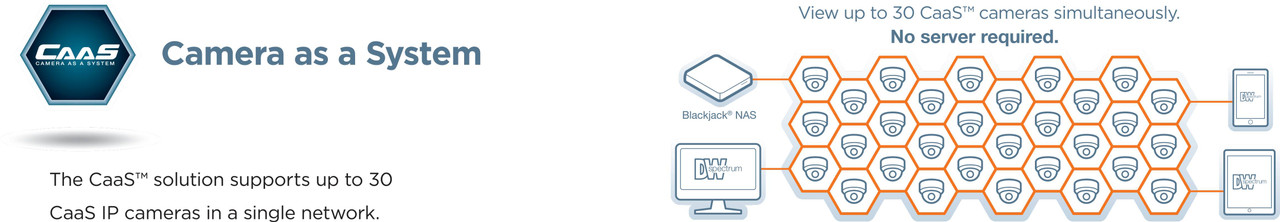

Connect up to 30 MEGApix® CaaS™ edge cameras
Dual recording option with Blackjack® NAS appliance
Dual codecs (H.264, MJPEG) with simultaneous dual-stream
55’ Smart IR™ with intelligent camera sync
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Web server built-in
PoE class 3 and DC12V
Waterproof cabling
UL listed
ONVIF conformant, profile S
NDAA/TAA compliant
IP66 environmental-rated dust-tight and water-resistant
5 year warranty

Downloads

Datasheet Digital-Watchdog-DWC-PVF5M1TIRC2-Datasheet-A1

View AllClose

Specifications

Image sensor	6.4MP 1/1.8" CMOS
Total pixels	3096 (H) X 2080 (V)
Minimum scene illumination	0.39 lux (color)
Minimum scene illumination	0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75), 4:3 aspect ratio
Resolution	5MP (2592x1944)
LENS
Focal length	1.55mm, F2.5
Lens type	Fisheye lens
Field of view (FoV)	360degree
IR distance	55ft range
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR 3D digital noise reduction	0~11
Privacy zone	4 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server or SD card recording (card not included)
NETWORK
LAN	10/100 based-T, RJ-45 connector
Video compression type	H.264, MJPEG
Resolution	2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows, Mac OS, Linux Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari
Video management software	DW Spectrum IPVMS
Number of DW Spectrum CaaS licenses included	1 DW Spectrum CaaS license included
Local server recording	DWC-PVF5M1TIRC2: 256GB local memory for recording DWC-PVF5M1TIRC1: 128GB local memory for recording DWC-PVF5M1TIRC6: 64GB local memory for recording
Max. number of CaaS cameras in the same network/system	Up to 30 MEGApix CaaS cameras in the same network/system
ENVIRONMENTAL
Operating temperature	-4degreeF ~ 122degreeF (-20degreeC ~ 50degreeC)
Operating humidity	Less than 90% (Non-Condensing)
IP rating	IP66-rated weather and tamper-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	LED On: 6.5W LED Off: 3.6W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome

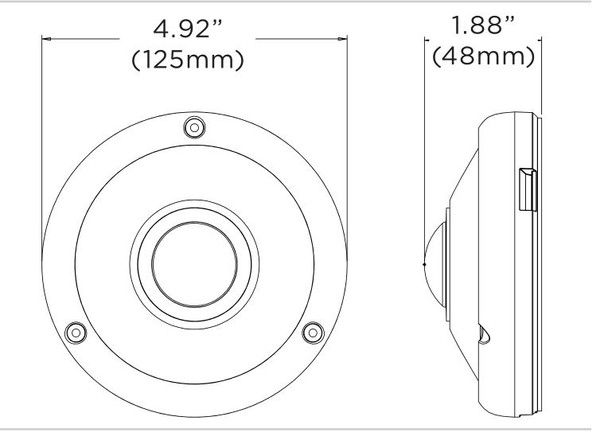

Dimensions	4.9" x 1.88" (125 x 48mm)
Weight	1.1 lbs (0.5kg)

View AllClose

Additional Information

Technology:	Network (IP)
Camera Style:	Fish Eye
Environmental:	Outdoor
Resolution:	5MP (3K)
Lens Type:	Fixed Lens
NDAA Compliant:
Lens Size:	1.55mm
Night Vision Range (ft):	55ft
Field of View (Horizontal):	360
