Image sensor
|
6.4MP 1/1.8" CMOS
|
|
Total pixels
|
3096 (H) X 2080 (V)
|
|
Minimum scene illumination
|
0.39 lux (color)
|
|
0 lux (B/W)
|
|
Video output
|
Local video output CVBS 1.0V p-p (75), 4:3 aspect ratio
|
|
Resolution
|
5MP (2592x1944)
|
|
LENS
|
|
Focal length
|
1.55mm, F2.5
|
|
Lens type
|
Fisheye lens
|
|
Field of view (FoV)
|
360degree
|
|
IR distance
|
55ft range
|
|
OPERATIONAL
|
|
Shutter mode
|
Auto, manual, anti-flicker, slow shutter
|
|
Shutter speed
|
1/30~1/32000
|
|
Slow shutter
|
1~1/5,1/7.5, 1/10
|
|
Auto gain control
|
Auto
|
|
Day / night
|
Auto, day (color), night (B/W)
|
|
Smart DNR 3D digital noise reduction
|
0~11
|
|
Privacy zone
|
4 programmable privacy masks
|
|
Alarm notifications
|
Notifications via e-mail, FTP server or SD card recording (card not included)
|
|
NETWORK
|
|
LAN
|
10/100 based-T, RJ-45 connector
|
|
Video compression type
|
H.264, MJPEG
|
|
Resolution
|
2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps
|
|
Frame rate
|
Up to 30fps at all resolutions
|
|
Video bitrate
|
100Kbps ~ 10Mbps, multi-rate for preview and recording
|
|
Bitrate control
|
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
|
|
Streaming capability
|
Dual-stream at different rates and resolutions
|
|
IP
|
IPv4
|
|
Protocol
|
Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
|
|
Security
|
HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
|
|
ONVIF conformance
|
Yes
|
|
Web viewer
|
OS: Windows, Mac OS, Linux Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari
|
|
Video management software
|
DW Spectrum IPVMS
|
|
Number of DW Spectrum CaaS licenses included
|
1 DW Spectrum CaaS license included
|
|
Local server recording
|
DWC-PVF5M1TIRC2: 256GB local memory for recording
DWC-PVF5M1TIRC1: 128GB local memory for recording
DWC-PVF5M1TIRC6: 64GB local memory for recording
|
|

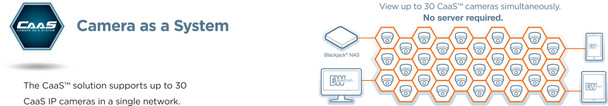

Max. number of CaaS cameras in the same network/system
|
Up to 30 MEGApix CaaS cameras in the same network/system
|
|
ENVIRONMENTAL
|
|
Operating temperature
|
-4degreeF ~ 122degreeF (-20degreeC ~ 50degreeC)
|
|
Operating humidity
|
Less than 90% (Non-Condensing)
|
|
IP rating
|
IP66-rated weather and tamper-resistant
|
|
Other certifications
|
CE, FCC, RoHS
|
|
ELECTRICAL
|
|
Power requirement
|
DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
|
|
Power consumption
|
LED On: 6.5W LED Off: 3.6W
|
|
MECHANICAL
|
|
Material
|
Aluminum vandal housing, polycarbonate dome
|
|
Dimensions
|
4.9" x 1.88" (125 x 48mm)
|
|
Weight
|
1.1 lbs (0.5kg)
|
