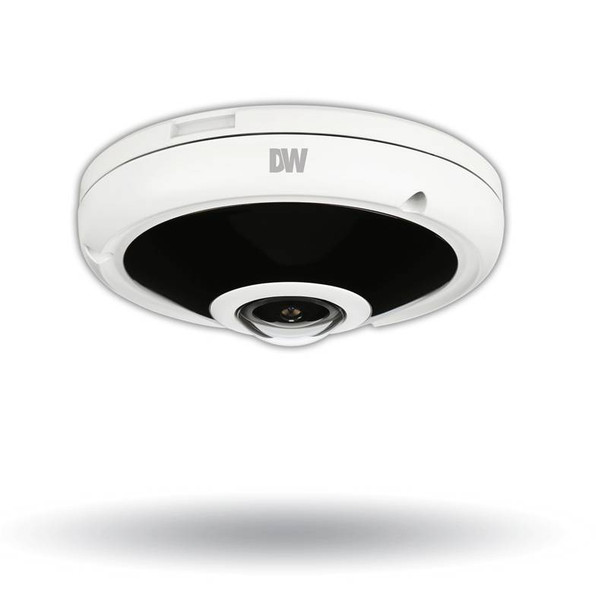

Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage

Part Number: DWC-PVF5M1TIRC6
Write a Review
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
  • Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
$860.68

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Field of View (Horizontal) : 360°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 1.55mm Lens
  • Environmental : Outdoor

Description

Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage

The MEGApix CaaS™ series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum IPVMS pre-loaded and on-board storage, MAKING EACH CaaS CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!

Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW Cloud online portal. On-board storage options at 256GB, 128GB or 64GB provide up to 30 days of retained video. Need more storage? Add a Blackjack® NAS device to any DW Spectrum system.

Key Features:

  • All-in-one cameras, no server required
  • 5MP 1/1.8" image sensor at real-time 30fps
  • 1.5mm fisheye lens
  • Built-in 256/128/64GB storage options for up to 30 days retained video*
  • Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic views
  • Edge-to-edge image clarity
  • Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
  • 24/7 access to live and recorded video feed
  • Automatic installation and licensing with first power on
  • Connect up to 30 MEGApix® CaaS™ edge cameras
  • Dual recording option with Blackjack® NAS appliance
  • Dual codecs (H.264, MJPEG) with simultaneous dual-stream
  • 55’ Smart IR™ with intelligent camera sync
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 3 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA/TAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • 5 year warranty
Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage
Digital Watchdog DWC-PVF5M1TIRC6 5MP IR Outdoor CaaS Fisheye IP Security Camera with 64GB Storage

Specifications


Image sensor
6.4MP 1/1.8" CMOS
Total pixels
3096 (H) X 2080 (V)
Minimum scene illumination
0.39 lux (color)
0 lux (B/W)
Video output
Local video output CVBS 1.0V p-p (75), 4:3 aspect ratio
Resolution
5MP (2592x1944)

LENS

Focal length
1.55mm, F2.5
Lens type
Fisheye lens
Field of view (FoV)
360degree
IR distance
55ft range

OPERATIONAL

Shutter mode
Auto, manual, anti-flicker, slow shutter
Shutter speed
1/30~1/32000
Slow shutter
1~1/5,1/7.5, 1/10
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W)
Smart DNR 3D digital noise reduction
0~11
Privacy zone
4 programmable privacy masks
Alarm notifications
Notifications via e-mail, FTP server or SD card recording (card not included)

NETWORK

LAN
10/100 based-T, RJ-45 connector
Video compression type
H.264, MJPEG
Resolution
2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps
Frame rate
Up to 30fps at all resolutions
Video bitrate
100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4
Protocol
Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security
HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows, Mac OS, Linux Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari
Video management software
DW Spectrum IPVMS
Number of DW Spectrum CaaS licenses included
1 DW Spectrum CaaS license included
Local server recording
DWC-PVF5M1TIRC2: 256GB local memory for recording
DWC-PVF5M1TIRC1: 128GB local memory for recording
DWC-PVF5M1TIRC6: 64GB local memory for recording
Max. number of CaaS cameras in the same network/system
Up to 30 MEGApix CaaS cameras in the same network/system

ENVIRONMENTAL

Operating temperature
-4degreeF ~ 122degreeF (-20degreeC ~ 50degreeC)
Operating humidity
Less than 90% (Non-Condensing)
IP rating
IP66-rated weather and tamper-resistant
Other certifications
CE, FCC, RoHS

ELECTRICAL

Power requirement
DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption
LED On: 6.5W LED Off: 3.6W

MECHANICAL

Material
Aluminum vandal housing, polycarbonate dome
Dimensions
4.9" x 1.88" (125 x 48mm)
Weight
1.1 lbs (0.5kg)
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at [email protected] with any design questions.

Additional Information

Camera Style:
Fisheye
Environmental:
Outdoor
Field of View (Horizontal):
360
Lens Size:
1.55mm
Lens Type:
Fixed Lens
NDAA Compliance:
NDAA Compliant
Night Vision Range (ft):
55ft
Resolution:
5MP (3K)
Technology:
Network (IP)
Warranty:
5-year Manufacturer Warranty
