Description

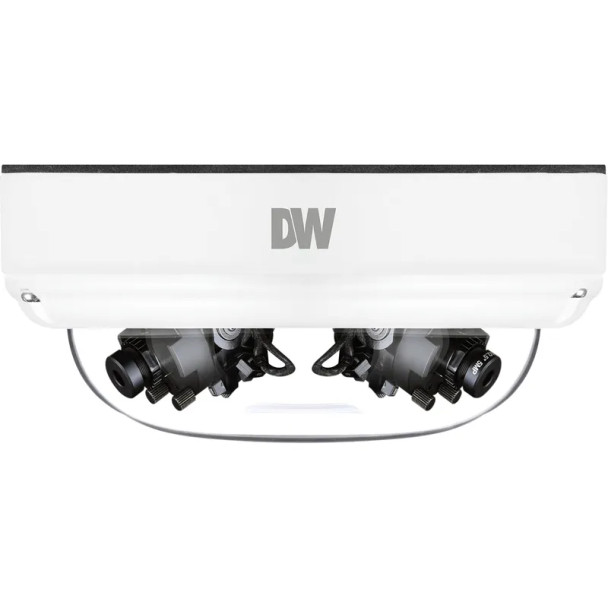

Digital Watchdog DWC-PVX16W4W 16MP Outdoor Multi-sensor IP Security Camera, with 4x 4.0mm Lenses
MEGApix® Flex™ 16MP multi-sensor configurable panoramic view IP cameras reduce total system cost by providing four 4MP CMOS sensors in one housing and installation. The Flex™ camera produces four video streams at real-time 30fps. Zoom-in for forensic-quality details with DW Spectrum® IPVMS.
The camera comes as a complete solution including 4 fixed lenses installed or is fully customizable with camera base unit plus selection of up to 4 sensor/lens modules. Modules DO NOT need to be same lens size. Modules available with 2.8mm, 4.0mm, 6.0mm or 8.0mm lenses. Camera base unit and sensor/lens modules are sold separately.
Key Features:
- 16MP 1/3" image sensors at real-time 30fps
- 360° and 180° flexible panoramic view IP camera
- Available as a complete system with 4x 2.8mm or 4x 4.0mm lens modules or camera and other lens options sold separately.
- Four cameras in one installation
- Flexible sensor positioning with magnets
- True wide dynamic range (WDR)
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- 4x Micro SD/SDHC/SDXC class 10 card (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- ONVIF conformant, profile S
- PoE class 3 and DC12V
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdog-DWC-PVX16WW-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-PVX16WW-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
External Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
192 x 84 mm (7.55 x 3.3 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
81
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
18 Watts
|
|
Max. FPS and Resolution:
|
30fps at 10752 x 1520
|
|
Minimum Illumination (Color):
|
0.41 Lux
|
|
Mounting:
|
Wall Mount
Pole Mount
Corner Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 1000 Mbps Port
|
|
Noise Reduction:
|
Smart DNR
3D DNR
|
|
Power Supply:
|
PoE+ (IEEE802.3at)
12 VDC
|
|
Product Series:
|
Digital Watchdog MEGApix FLEX Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
16MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
