Description

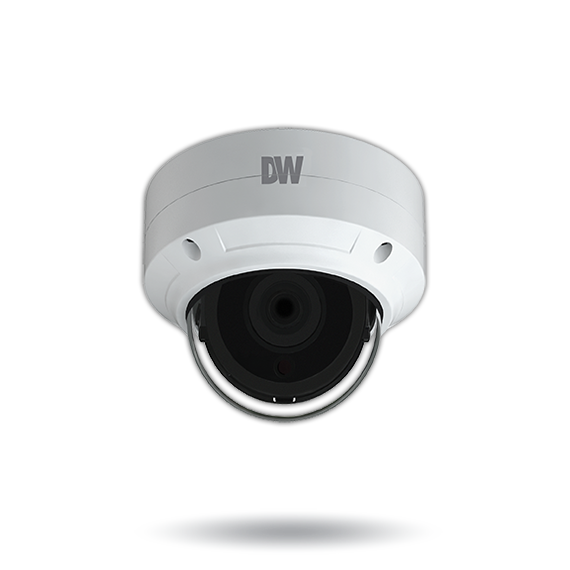

Digital Watchdog DWC-V8553TIR 5MP dome HD CCTV Security Camera with 2.8mm fixed lens and IR
5MP Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals and analog signals up to 960H. The fixed lens IK10 impact resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus HD over Coax DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- 5MP 1/2.7" image sensor at 20fps / 4MP at real-time 30fps
- 2.8mm fixed lens
- Digital Wide Dynamic Range (D-WDR)
- OSD control via Coaxial (UTC)
- 100' range IR
- 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
User Manual
Digital-Watchdog-DWC-V8553TIR-User-Manual-A1
Quick Start Guide
Digital-Watchdog-DWC-V8553TIR-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
RoHS
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
90 x 116.7 mm (3.54 x 4.59 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
91
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Input Current:
|
0.23A
|
|
Input Voltage:
|
12VDC
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
4 Watts
1 Watt
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.01 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
|
|
Night Vision Range (ft):
|
100
|
|
Noise Reduction:
|
DNR
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/60-1/100000s
|
|
Special Technologies:
|
Digital Watchdog Universal HD over Coax
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
