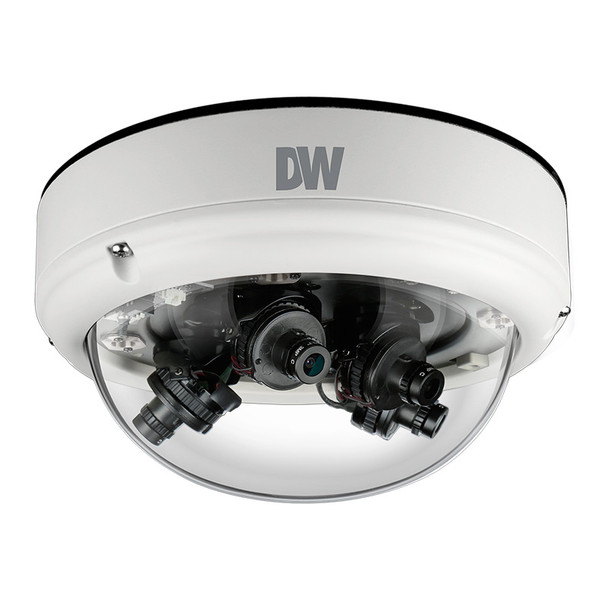

Name: Digital Watchdog DWC-VS753WT2222 8MP 4K Multi-sensor HD Analog Security Camera with Starlight Flex
Brand: Digital Watchdog
SKU: DWC-VS753WT2222
Price: 913.32 USD
Availability: OutOfStock

Digital Watchdog DWC-VS753WT2222 8MP 4K Multi-sensor HD Analog Security Camera with Starlight Flex

Brand: Digital Watchdog

Part Number: DWC-VS753WT2222

Write a Review

Replacement: There is no direct replacement. Ask a representative.

Check other similar products:

Digital Watchdog Security Cameras

Outdoor Security Cameras

Digital Watchdog HD CCTV Security Cameras

8MP Security Cameras

Multi-sensor Security Cameras

Discontinued

? Help me pick a security camera

Free Shipping

Technical Support

5 Year Warranty

Key Features:

Lens Type : Fixed Lens
Lens Size : 2.8mm Lens
Sensor Size : 1/3" Sensor
Protection Code : IP66
Environmental : Outdoor

Description

Digital Watchdog DWC-VS753WT2222 8MP 4K Multi-sensor HD Analog Security Camera with Starlight Flex

Star-Light Flex™ 8MP user-configurable multi-sensor vandal dome camera.

STAR-LIGHT Flex™ 8 Megapixel Multi-Sensor High Definition Analog cameras transmit crystal-clear 1080p images over coaxial cable with complete sensor position and field-of-view customization. The cameras reduce installation time and complexity by offering four different lens modules, each individually configurable and independent, easily positioned on a secure magnetic track and adjustable using a 3-axis gimbal.

Important Note: The camera requires a DVR that supports HD over Coax protocols, like the VMAX A1.

Key Features:

Analog high definition (HD-Analog) HD over Coax™ Technology
Four cameras in one installation
Four 2.8mm Fixed Lenses
4x 2.1MP/1080p 1/3" image sensors

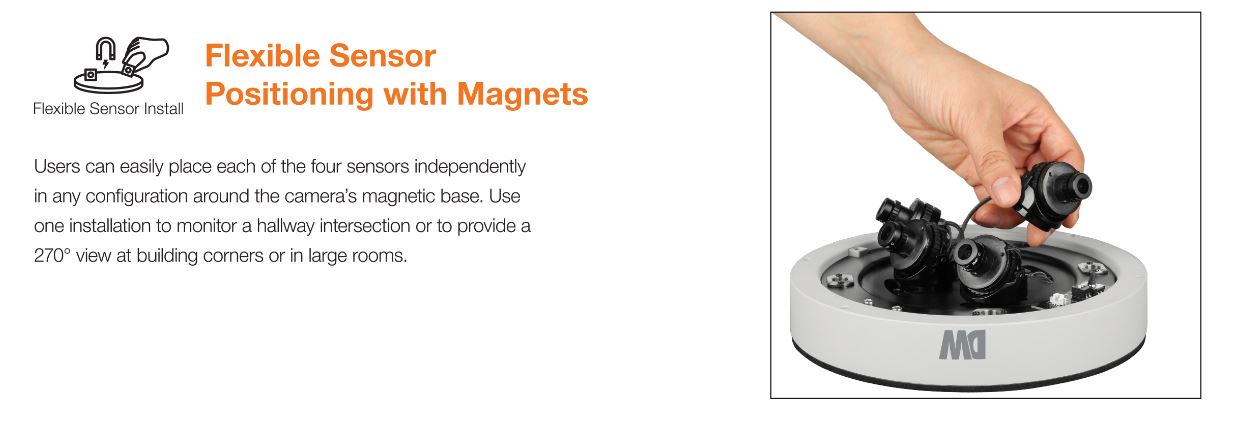

Flexible sensor positioning with magnets
8MP resolution at 30fps (4x 2.1MP/1080p)
Customizable 2.8mm, 4.0mm, 6.0mm and 8.0mm fixed lens options
Star-Light™ super low light technology
True Wide Dynamic Range (WDR)
True day/night mechanical IR cut filter
OSD control via coaxial (UTC)
Easy icon driven OSD menu with built-in joystick
Secondary video-BNC output
Smart DNR™ 3D digital noise reduction
De-Fog™ extreme weather image compensation
Highlight masking exposure (HME)
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
RS-485 built-in
Auto sensing 24VAC/12VDC with line lock
IP66 environmental-rated dust-tight and water-resistant
5 year warranty

Optional Accessories:

DWC-PZCM Ceiling mount bracket for multi-sensor cameras
DWC-V1CNM Corner mount bracket for outdoor dome cameras
DWC-PZADP Parapet mount adapter for DWC-PZPARAM
DWC-PZPARAM Parapet mount bracket
DWC-PMB-WL Pole mount bracket for outdoor dome cameras
DWC-PZWM Wall mount bracket for multi-sensor cameras
DW-BALUNHD HD video balun converter

Downloads

Datasheet Digital-Watchdog-DWC-VS753WT2222-Datasheet-A1

Popular Search

Digital Watchdog Security Cameras

Outdoor Security Cameras

Digital Watchdog HD CCTV Security Cameras

8MP Security Cameras

Multi-sensor Security Cameras

Specifications

Image sensor	4x 2.1MP 1/3” CMOS
Active pixels	4x 1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	HD over Coax® technology with HD-Analog signal support
Synchronization	Internal
Resolution	8 megapixel (4x 1920x1080 sensors)
Minimum scene illumination	0.06 lux (color)
Minimum scene illumination	0.01 lux (B/W)
S/N ratio	55dB
Video output	HD analog (4x 1080p at 30fps)
Alarm output	4 alarm outputs
LENS
Focal length	2.8mm, 4.0mm, 6.0mm, 8.0mm combination options
Lens type	Fixed lens
OPERATIONAL
Operational	x4 (below specs are per sensor)
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, On, Off
Wide Dynamic Range (WDR) dB	100dB
Digital noise reduction (DNR)	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	Max 60dB
Motion detection	15 motion zones per camera, total 60 motion zones
Privacy zones	24 privacy zones per camera, total 96 privacy zones
Sharpness	0 ~ 10
Gamma	0.5
RS485 / UTP built-in	Pelco D / A-PC
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V: 8.36W, 696mA
Power consumption	AC24V: 8.36W, 348mA
MECHANICAL
Material	Aluminum vandal outdoor housing, polycarbonate dome
Dimensions	7.54" x 3.5" (191.6 x 89.5 mm)
Weight	4.4lbs (2kg)

Model #*	Description
DWC-VS753WT2222 (Default Model)	Four 2.8mm Fixed Lenses
DWC-VS753WT2224	Three 2.8mm, One 4.0mm Fixed Lenses
DWC-VS753WT2226	Three 2.8mm, One 6.0mm Fixed Lenses
DWC-VS753WT2228	Three 2.8mm, One 8.0mm Fixed Lenses
DWC-VS753WT2244	Two 2.8mm, Two 4.0mm Fixed Lenses
DWC-VS753WT2246	Two 2.8mm, One 4.0mm, One 6.0mm Fixed Lenses
DWC-VS753WT2248	Two 2.8mm, One 4.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2266	Two 2.8mm, Two 6.0mm Fixed Lenses
DWC-VS753WT2268	Two 2.8mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2288	Two 2.8mm, Two 8.0mm Fixed Lenses
DWC-VS753WT2444	One 2.8mm, Three 4.0mm Fixed Lenses
DWC-VS753WT2446	One 2.8mm, Two 4.0mm One 6.0mm Fixed Lenses
DWC-VS753WT2448	One 2.8mm, Two 4.0mm One 8.0mm Fixed Lenses
DWC-VS753WT2466	One 2.8mm, One 4.0mm, Two 6.0mm Fixed Lenses
DWC-VS753WT2468	One 2.8mm, One 4.0mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2666	One 2.8mm, Three 6.0mm Fixed Lenses
DWC-VS753WT2668	One 2.8mm, Two 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2688	One 2.8mm, One 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT2888	One 2.8mm, Three 8.0mm Fixed Lenses
DWC-VS753WT4444 (Default Model)	Four 4.0mm Fixed Lenses
DWC-VS753WT4446	Three 4.0mm, One 6.0mm Fixed Lenses
DWC-VS753WT4448	Three 4.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4466	Two 4.0mm, Two 6.0mm Fixed Lenses
DWC-VS753WT4468	Two 4.0mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4488	Two 4.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT4666	One 4.0mm, Three 6.0mm Fixed Lenses
DWC-VS753WT4668	One 4.0mm, Two 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4688	One 4.0mm, One 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT6666	Four 6.0mm Fixed Lenses
DWC-VS753WT6668	Three 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT6688	Two 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT6888	One 6.0mm, Three 8.0mm Flxed Lenses
DWC-VS753WT6888	Four 8.0mm Fixed Lenses

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:	Multi-sensor
Durability:	Weatherproof
Environmental:	Outdoor
Image Enhancements:	Auto Gain Control (AGC)
Lens Size:	2.8mm
Lens Type:	Fixed Lens
Product Series:	Digital Watchdog Universal HD over COAX Series Digital Watchdog Star-Light Flex Series
Protection Code:	IP66
Resolution:	8MP (4K)
Sensor Size:	1/3"
Technology:	HD CCTV
Warranty:	5-year Manufacturer Warranty
