Description

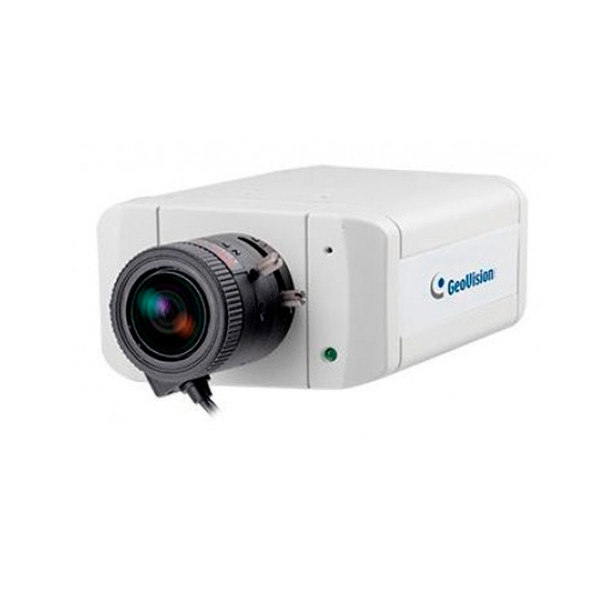

Geovision GV-BX4700-3V 4MP Indoor Box IP Security Camera
The GV-BX4700 is a series of indoor IP cameras containing a varifocal and a fixed focal model. GV-BX4700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.
Key Features:
- 4MP
- 3~10.5mm Varifocal Lens,
- 1/3"progressive scan super low lux CMOS
- Min. illumination at 0.02 lux
- Dual streams from H.265, H.264 and MJPEG
- Up to 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- P-Iris for auto iris adjustment
- Built-in / external microphone
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
- Mini USB slot for WiFi Adapter or USB hard drive
- Wide Dynamic Range Pro (WDR Pro)
- 3D noise reduction, Smart streaming, Defog, Privacy mask, IP address filtering
- DC 12V / PoE (IEEE 802.3af)
- Day and night function (with removable IR-cut filter)
- Varifocal megapixel lens
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Compatible Accessories:
- GV-Mount300 / GV-Mount300-1 Convex Corner Adapter Kit
- GV-Mount310 / GV-Mount310-1 Concave Corner Adapter Kit
- GV-Mount400 / GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6")
- GV-Mount410 / GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5")
- GV-Housing102 Housing Box (with heater and fan)
- GV-Housing103 (not supported by GV-BX4700-8F) Housing Box (with IR)
- GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter
- GV-Relay V2
- GV-WiFi Adaptor V2
Note:
- No memory card slot & local storage function for Argentina.
- Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
- The signal range and data throughput may vary depending on the network conditions and environmental factors.
- With the standard installation, the supporting rack is not included in the packing list.
- GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
- Specifications are subject to change without notice.
Replacement of:
GV-BX5700-8F
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Additional Features:
|
Mobile App Support (IOS, Android)
|
|
Alternative SKUs:
|
115-BX4700-3VA
84-BX4700V-3010
VC-CAG-BX470-3V
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Box
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
MJPEG
H.264
H.265
|
|
Connection Type:
|
Wired
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
104
|
|
Image Settings:
|
Privacy Mask
|
|
Lens Size:
|
3~10.5mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Max. FPS and Resolution:
|
25fps at 2560 x 1440
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Wide Dynamic Range (WDR)
|
