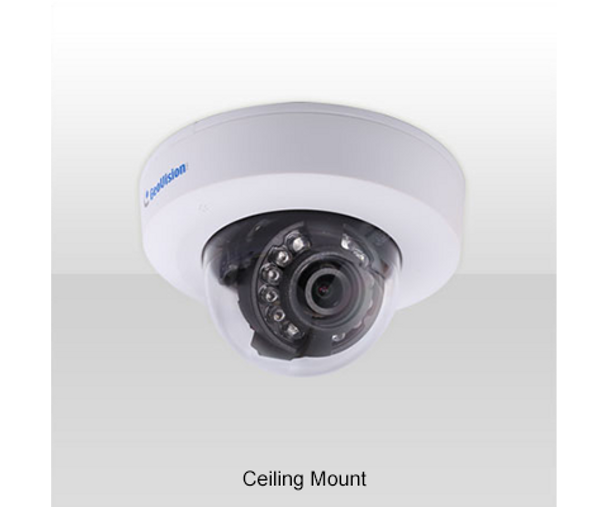

Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010

Brand: Geovision
Part Number: GV-EFD4700-0F
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
  • Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
$183.15

Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 96°Field of View
  • Max. FPS and Resolution : 20fps at 2592 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F2.0
  • Audio Support : Built-in Microphone

Customers Also Viewed

Discontinued
Geovision GV-EFD2700-0F 2MP H.265 IR Indoor Mini Dome IP Security Camera 84-EFD2700-0010

Geovision GV-EFD2700-0F 2MP H.265 IR Indoor Mini Dome IP Security Camera 84-EFD2700-0010

Brand: Geovision

Part Number: GV-EFD2700-0F
$117.52
  • Compression : H.264 Plus, H.265, H.264,
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Environmental : Indoor
  • Sensor Size : 1/2.7"
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
2MP 2MP
131 131 Night Vision
White White
Discontinued
Geovision GV-FER5701 5MP IR H.265 Outdoor Fisheye IP Security Camera

Geovision GV-FER5701 5MP IR H.265 Outdoor Fisheye IP Security Camera

Brand: Geovision

Part Number: GV-FER5701
$396.61
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 180°Field of View
  • Max. FPS and Resolution : 30fps at 2592 x 1944
  • Lens Type : Fixed Lens
  • Lens Size : 1.05mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.5" Sensor
  • Protection Code : IP67 IK10 Plus
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.5"
  • Aperture : F2.8
  • Audio Support : Built-in Microphone
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
5MP 5MP
100 100 Night Vision
White White
4 Megapixel InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP7342W-28M

4 Megapixel InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP7342W-28M

Brand: LTS Security

Part Number: CMIP7342W-28M
$153.23
  • Compression : MJPEG, H.264, H.264 Plus, H.265, H.265 Plus,
  • Field of View (Horizontal) : 103°Field of View
  • Max. FPS and Resolution : 30fps at 2688 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP67 IK10
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/3"
Network (IP) Network (IP)
4MP 4MP
100 100 Night Vision
White White
Discontinued
Geovision GV-UNP2500 2MP Mini IP Security Camera

Geovision GV-UNP2500 2MP Mini IP Security Camera with 3.7mm Fixed Lens

Brand: Geovision

Part Number: GV-UNP2500
$301.83
  • Field of View (Horizontal) : 84°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 3.7mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Color : Black
  • Environmental : Indoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
Black Black
Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010

Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010

Brand: Geovision

Part Number: GV-AVD2700
$165.57
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 30°Field of View 108°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.9" Sensor
  • Protection Code : IK10 IP67
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.9"
Network (IP) Network (IP)
2MP 2MP
98 98 Night Vision
White White
Discontinued
Geovision GV-ABL4701 4MP IR H.265 Outdoor Bullet IP Security Camera 84-ABL470W-0010

Geovision GV-ABL4701 4MP IR H.265 Outdoor Bullet IP Security Camera 84-ABL470W-0010

Brand: Geovision

Part Number: GV-ABL4701
$141.93
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 78°Field of View
  • Max. FPS and Resolution : 30fps at 2048 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP66
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/3"
Network (IP) Network (IP)
4MP 4MP
98 98 Night Vision
White White
Discontinued
Geovision GV-EFD4700-2F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-2010

Geovision GV-EFD4700-2F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-2010

Brand: Geovision

Part Number: GV-EFD4700-2F
$139.00
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 72°Field of View
  • Max. FPS and Resolution : 20fps at 2592 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 3.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Environmental : Indoor
  • Sensor Size : 1/2.7"
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
4MP 4MP
50ft 50ft Night Vision
White White

Description

Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010

The Target Mini Fixed Dome is an indoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 2 axis (pan and tilt), it offers an entry-level surveillance solution with all the essential features and excellent image quality. GV-EFD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Key Features:

  • 1/3" progressive scan super low lux CMOS
  • 2.8mm Fixed Lens
  • Min. illumination at 0.02 lux
  • Dual streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
  • Intelligent Night Vision
  • Day and Night function (with removable IR-cut filter)
  • 2-axis mechanism (pan / tilt)
  • Built-in microphone
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Megapixel lens
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
Model No.Ordering Part No.DescriptionSKU No.
GV-EFD4700-0F 110-EFD4700-0F0 GV-EFD4700, 4MP, H.265, 2.8mm, Super low lux, WDR Pro 84-EFD4700-0010
GV-EFD4700-2F 115-EFD4700-2F0 GV-EFD4700-2F 4MP H.265 3.8mm Super Low Lux, WDR Pro Fixed Dome 84-EFD4700-2010
Compatible Products:
  • GV-Mount910 Power Box Mount Bracket
  • GV-Mount913 Power Box Mount Bracket
  • GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR
  • GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter
Packing List:
  • H.265 Mini Fixed Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring
  • Download Guide
  • Warranty Card

Downloads

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
115-EFD4700-0F0 84-EFD4700-0010 VC-CAG-EFD4700F
Aperture:
F2.0
Audio Support:
Built-in Microphone
Camera Style:
Mini Dome
Color:
White
Compression:
MJPEG H.264 H.265
Dimensions:
100 x 60 mm (3.9 x 2.4 in)
Environmental:
Outdoor
Field of View (Horizontal):
96
Key Features:
ONVIF Night Vision (IR)
Lens Mount:
M12
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
20fps at 2592 x 1520
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Night Vision Range (ft):
50ft
Power Consumption:
6 Watts
Resolution:
4MP
S/N Ratio:
50 dB
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Shutter Speed:
1/5-1/8000s
Technology:
Network (IP)
Vandal Proof:
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
WDR Pro
View AllClose

1 Review

  • 5

    Posted by Luis R. on Oct 9th 2017

    Wow, great product. 1st "Holy-Moly !!!" I bought this for my home. It's a great product, but it has a lot of functions. Pretty much for a business but great for a home if your just a bit tech savvy. I would recommend this product to anyone. A heck of a better quality than the ones sold at SAMS Club, Costco.
