Geovision GV-QSD5730 5MP H.265 Indoor PTZ IP Security Camera with 33x Optical Zoom - 84-QSD5730-0010
The GV-IP Speed Dome (GV-QSD5730) is an indoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. The GV-QSD5730 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5730 supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5730 also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.
Key Features:
- 1/2.8" progressive scan low lux CMOS sensor
- Quad streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2592 x 1944
- Min. illumination at 0.02 lux
- 4.6~152mm motorized lens, Horizontal FOV: 55.4°~1.9°, Maximum Aperture: F/1.6
- 33x optical zoom and unlimited digital zoom
- Servo Feedback, PTZ can return to its original position when encountering external force
- Day and night function (with removable IR-cut filter)
- Two sensor inputs and one alarm output
- Wide Dynamic Range Pro (WDR Pro)
- IPv6 Compatible
- Access browsers without plug-in
- Electrical Image Stabilizer (EIS) Support
- Wide temperature tolerance (-25°C ~ 50°C / -13°F ~ 122°F)
- Support for TV-out
- Two-way audio
- Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
- PoE AC 24V
- Pan 360° endlessly
- Tilt from -10° to 100°
- ONVIF (Profile G, S, T) conformant
Packing List:
- GV-QSD5730
- Drill Template Paster
- 3-Pin Power Terminal Block (AC 24V)
- 14-Pin Alarm/Audio I/O Terminal Block
- Download Guide
- Warranty Card
SKU: 84-QSD5730-0010
MPN: 125-QSD5730-000
Specifications
Camera | ||
Image Sensor | 1/2.8" progressive scan low lux CMOS | |
Optical Zoom | 33x | |
Digital Zoom | Unlimited | |
Picture Elements | 2592 (H) x 1944 (V) | |
Minimum | Color | 0.02 Lux |
Illumination | B/W | 0.002 Lux |
Shutter Speed | Auto / Manual (1 ~ 1/10000 sec) | |
White Balance | Auto / Manual | |
Iris Control | Auto / Manual | |
WDR Pro | Yes | |
Optical Lens | ||
Megapixel | Yes | |
Day / Night | Yes (with removable IR-cut filter) | |
Focal Length | 4.6 ~ 152 mm | |
Maximum Aperture | F/1.6 | |
Horizontal FOV | 55.4°~ 1.9° | |
Operation | Focus | Auto / Manual |
Zoom | 33x | |
Iris | Auto / Manual | |
Video | ||
Video Compression | H.265, H.264, MJPEG | |
Video Streaming | Quad streams from H.265, H.264 or MJPEG | |
Frame Rate | 30 fps at 2592 x 1944 (60/50 Hz) | |
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | ||
Audio | ||
Audio Compression | G.711/G7.26/ LPCM/AAC (optional) | |
Audio Support | Two-way Audio | |
Network | ||
Interface | 10/100 Ethernet | |
Protocol | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, ONVIF (Profile G, S, T) | |
Mechanical | ||
Power | Terminal Block (AC24V), PoE | |
Ethernet | 10/100 Base-T, RJ-45 connector | |
Connectors | Audio | 1 in (Audio In Terminal Block); 1 out (Audio Out Terminal Block) |
Local Storage | SD card slot (SDHC / SDXC, Class 10) | |
TV-Out | BNC connector | |
Digital I/O | I/O Terminal Block | |
Operation | ||
Pan Travel | 360°endless | |
Tilt Travel | -10°~ 100° | |
Manual Speed | Pan | 0.1°~ 90°/s |
Tilt | 0.1°~ 55°/s | |
Preset Speed | Pan | 400°/s |
Tilt | 300°/s | |
Presets | Max. Number | 256 |
Accuracy | 0.1° | |
Sequence | Max. Number | 8 |
Max. Presets Allowed | 64 | |
Automatic Function | Preset, Sequence, Auto Pan, Cruise | |
Mechanical Flip | Yes | |
Digital Slow Shutter | On / Off |
Motion Detection | On / Off |
Wide Dynamic Range | On / Off |
Day/Night: Mechanical IR Cut Filter | On / Off |
Alarm Digital I/O | 4 Inputs |
2 Output | |
General | |
Operating Temperature | -25°C ~ 50°C (-40° ~ 122°F) |
Humidity | 10% ~ 90% (non-condensing) |

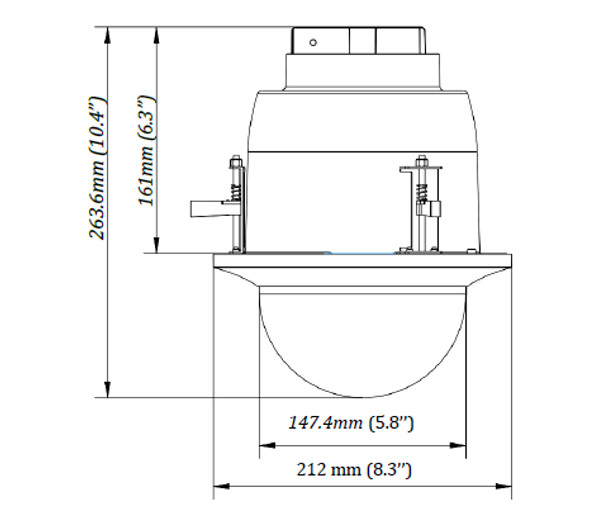

Dimensions | 0 212 x 264 mm (8.35” x 10.39”) |
Weight | 2.6 kg (5.73 lb) |
Power Source | 24 V AC / POE |
Power Consumption | 25.4 W |
Regulatory | CE, FCC, RoHS compliant |
Web Interface | |
Installation Management | Web-based configuration |
Maintenance | Firmware upgrade through Web Browser or Utility |
Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese |
Applications | |
Software Supported | GV-VMS (V17.1.0.100), GV-DVR / NVR (V8.7.4.0), GV-Control Center (V3.5.0.0), GV-Recording Server / Video Gateway (V1.3.0.0), GV-Edge Recording Manager (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software except for GV-VMS (V17.1.0.100). |
Smart Device Access | | GV-Eye for iOS and Android |
Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
Compatible products
Additional Information
|
Alternative SKUs:
|
125-QSD5730-000
84-QSD5730-0010
VC-CAG-QSD5730
GV-QSD5730-In Ceiling
GV-QSD5730-Indoor
|
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
PTZ
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
1.9
55.4
|
|
Lens Size:
|
4.6~152mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Optical Zoom:
|
33x Optical Zoom
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
