- Geovision GV-TDR4703-4F 4MP Night Vision Outdoor Mini Dome IP Security Camera with H.265 ,4mm Fixed Lens

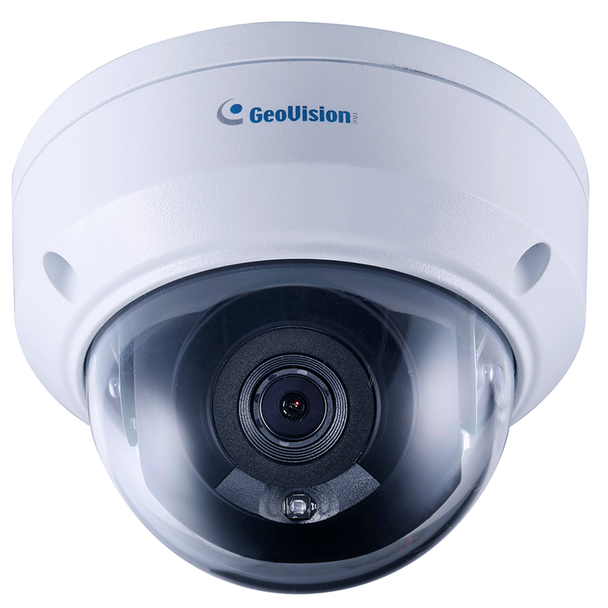

Geovision GV-TDR4703-4F 4MP Night Vision Outdoor Mini Dome IP Security Camera with H.265 ,4mm Fixed Lens
$149.45
✅ Help me pick a security camera
- Lens Type : Fixed Lens
- Lens Size : 4mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Environmental : Outdoor
- Sensor Size : 1/3"
Description
Geovision GV-TDR4703-4F 4MP Night Vision Outdoor Mini Dome IP Security Camera with H.265 ,4mm Fixed Lens, Low Lux, WDR Pro
GV-TDR4703 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Key Features:
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- Two-way audio
- One sensor input and one alarm output
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Packing List:
- GV-TDR4703 Mini Dome
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Torx Wrench
- Download Guide
- Warranty Card
Downloads
Datasheet
Geovision-GV-TDR4703-4F-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
Audio Capability:
|
Two-Way Audio
|
Camera Style:
|
Mini Dome
|
Durability:
|
Weatherproof
|
Environmental:
|
Outdoor
|
Lens Size:
|
4mm
|
Lens Type:
|
Fixed Lens
|
NDAA Compliance:
|
NDAA Compliant
|
Night Vision Range (ft):
|
100
|
Night Vision Type:
|
Night Vision (IR)
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
4MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/3"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Warranty:
|
2-year Manufacturer Warranty
|
