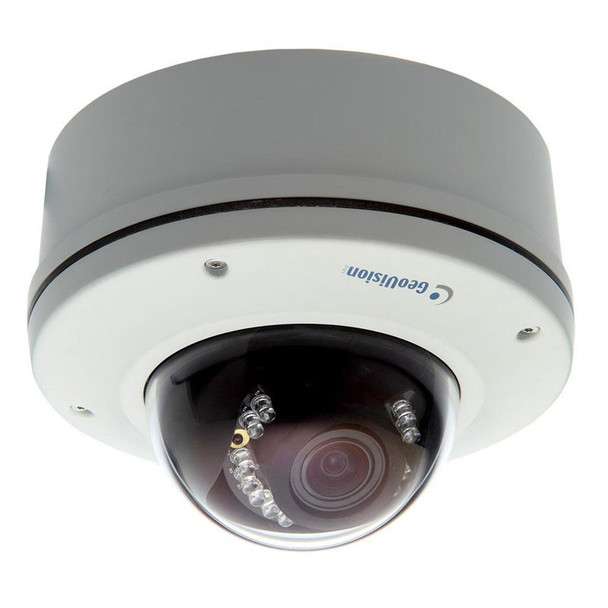

Geovision GV-VD320D 3MP H.264 IR Vandal Proof Dome IP Security Camera
The GV-VD320D 3MP H.264 IR Vandal Proof IP Dome provides reliable surveillance. It has a 1/2.5" CMOS sensor and a varifocal lens to capture what is going on into high-quality videos up to 2048 x 1536 resolutions, two-way audio to provide communication between you and those within range of the camera, and a built-in micro SD card slot to save video data in a micro SD card. Using your existing network or the Internet, it transmits the data control signals to your computer or 3G phone, letting you view the files and control the camera from a remote distance. The GV-VD320D also has a day and night function. It uses a removable IR-cut filter during the day to produce accurate color images. As light diminishes, the camera switches to night mode, turning off the IR-cut filter and utilizing its 10 IR LEDs that provide up to 15 meters (50ft.) of night vision. Plus, the intelligent IR technology improves the quality of the black and white images and minimizes the "whiteout" effect. Other features of the GV-VD320D include 3-axis mechanism, motion detection, privacy mask, tampering alarm, IP67 ingress protection, and IK10+ vandal resistant enclosure.
Secure the premises with the GV-VD320D 3MP H.264 IR Vandal Proof IP Dome.
Key Features:
- Removable IR-cut filter: helps produce accurate color images during the day
- 10 IR LEDs: provides up to 15 meters (50ft.) of night vision
- Intelligent IR technology: improves the quality of black and white images
- Two-way audio: lets you communicate to those within the camera's range
- Built-in micro SD card: offers onboard storage using a micro SD card
- IK10+ vandal resistant enclosure: protects the camera from impacts
The GV-VD320D 3MP H.264 IR Vandal Proof IP Dome Specifications
- Image Sensor: 1/2.5” progressive scan CMOS”
- Picture Elements: 2048 (H) x 1536 (V)
- Minimum Illumination: Color: 0.15 Lux, & B/W: 0.10 Lux, & IR ON: 0 Lux
- Shutter Speed: Automatic, Manual (1/5 ~ 1/8000 sec.)
- White Balance: Automatic, Manual (2800K ~ 8500K)
- Gain Control: Automatic
- S/N Ratio: 45 dB
- BLC: Yes
- Megapixel: Yes
- Day / Night: Yes (with removable IR-cut filter)
- Lens Type: Varifocal
- Focal Length: 3 ~ 9 mm
- Maximum Aperture: F/1.3
- Mount: Ø 14 mm
- Focus: Manual (w / lock)
- Zoom: Manual (w / lock)
- Iris: DC drive
- Maximum Torque (Focus/ Zoom Screws): 0.049 N.m
- IR LED Quantity: 10 IR LEDs
- Maximum IR Distance: 15 m (50ft.)
- Video Compression: H.264, MJPEG
- Video Stream: Dual streams from H.264 and MJPEG
- Frame Rate: 30 fps at 1920 x 1080 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
- Image Setting: Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog
- Audio Compression: G.711
- Two-way Audio: Yes
- Sensor Input: 1 Input (Dry Contact)
- Alarm Output: 1 Output (200mA 5V DC)
- Main Stream: & 4:3 2408 x 1536, 1600 x 1200, 1280 x 960, 16:9 1920 x 1080, 1280 x 720, 5:4 1280 x 1024
- Sub Stream: 4:3 640 x 480, 320 x 240, 16:9 640 x 360, 448 x 252, 5:4 640 x 512, 320 x 256
- Interface: 10/100 Ethernet
- Ethernet Protocol: HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
- Temperature Detector: Yes
- Pan: 0° ~ 350°
- Tilt: 10° ~ 90°
- Rotate: 0° ~ 340°
- Power: 2-pin terminal block, PoE
- Ethernet: RJ-45
- Audio: 1 In (RCA female for microphone) 1 Out (RCA female for speaker)
- Digital I/O: I/O Wire
- Auto Iris: DC drive
- Local Storage: Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)
- TV-Out: BNC connector (640 x 480 resolution)
- LED Indicator: 2 LEDs: Power, Status
- Environment Temperature: -30 °C ~ 50 °C (-22 °F ~ 122 °F)
- Humidity: 10% to 90% (no condensation)
- Power Source: 12V DC / 24V AC / PoE
- Maximum Power Consumption: 12 W
- Dimensions Camera Body: ø 165 x 125 mm (6.49’’ x 4.92‘’)
- Cable Length: 1 m (3.28ft.)
- Cable Diameter: ø 16.7 mm (0.66’’)
- Maximum Connector Diameter: ø16.7 mm (0.66’’)
- Weight: 1.7 kg (3.75 lb)
- Ingress Protection: IP67
- Vandal Resistance: GV-VD220D / GV-VD221D: IK10+, GV-VD222D / GV-VD223D: IK7
- Regulatory: CE, FCC, C-Tick, RoHS compliant
- PoE Standard: IEEE 802.3af Power over Ethernet / PD
- PoE Power Supply Type: End-Span
- PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
- Installation Management: Web-based configuration
- Maintenance: Firmware upgrade through Web Browser or Utility
- Access from Web Browser: Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ
- Language: Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
