Geovision GV-VD5700 5MP IR H.265 Outdoor Dome IP Security Camera - 4~8mm Varifocal Lens

Brand: Geovision
Part Number: GV-VD5700
Write a Review
Discontinued
  • Geovision GV-VD5700 5MP IR H.265 Outdoor Dome IP Security Camera - 4~8mm Varifocal Lens
  • GV-VD5700

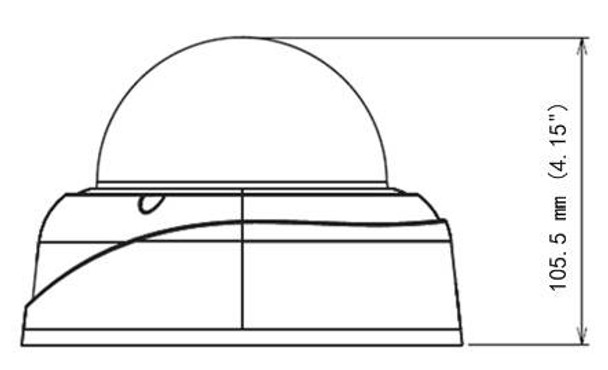

  • Dimension_VD5700

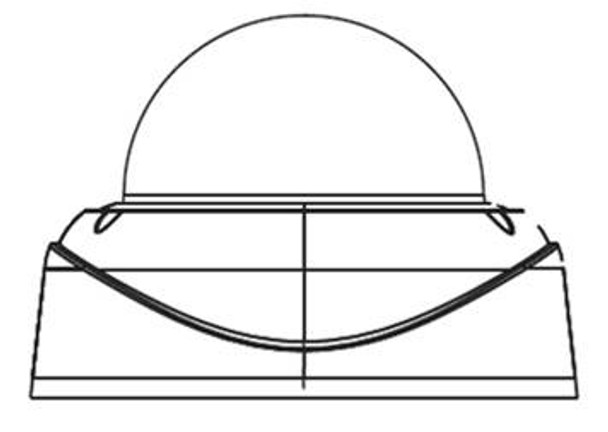

  • Dimension_VD5700
  • Dimension_VD5700

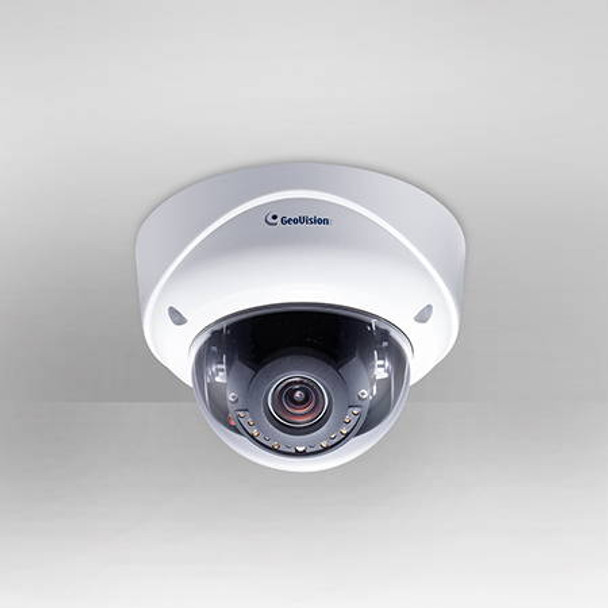

  • VD5700-ceiling
$417.44

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 88°Field of View 51°Field of View
  • Max. FPS and Resolution : 30fps at 2592 x 1944
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 4~8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.8" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/1.8"
  • Audio Support : Built-in Microphone

Customers Also Viewed

Discontinued
Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010

Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010

Brand: Geovision

Part Number: GV-EFD4700-0F
$183.15
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 96°Field of View
  • Max. FPS and Resolution : 20fps at 2592 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F2.0
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
4MP 4MP
50ft 50ft Night Vision
White White
Discontinued
Geovision GV-VD5711 5MP IR H.265 Outdoor Dome IP Security Camera 84-VD57110-0010

Geovision GV-VD5711 5MP IR H.265 Outdoor Dome IP Security Camera 84-VD57110-0010

Brand: Geovision

Part Number: GV-VD5711
$394.13
  • Compression : MJPEG, H.264, H.265,
  • Max. FPS and Resolution : 30fps at 2592 x 1944
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4~8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.8" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/1.8"
  • Audio Support : Built-in Microphone
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
5MP (3K) 5MP (3K)
98 98 Night Vision
White White
Discontinued
Geovision GV-FER12203 12MP 4K Ultra HD IR Outdoor Fisheye IP Security Camera - 84-FER1203-001U

Geovision GV-FER12203 12MP 4K Ultra HD IR Outdoor Fisheye IP Security Camera - 84-FER1203-001U

Brand: Geovision

Part Number: GV-FER12203
$712.27
  • Compression : MJPEG, H.264,
  • Field of View (Horizontal) : 180°Field of View
  • Max. FPS and Resolution : 15fps at 4000 x 3000
  • Lens Type : Fixed Lens
  • Lens Size : 1.83mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.7" Sensor
  • Environmental : Outdoor
  • Sensor Size : 1/1.7"
  • Audio Support : Built-in Microphone
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
12MP (4K) 12MP (4K)
98 98 Night Vision
Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010

Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010

Brand: Geovision

Part Number: GV-AVD2700
$165.57
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 30°Field of View 108°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.9" Sensor
  • Protection Code : IK10 IP67
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.9"
Network (IP) Network (IP)
2MP 2MP
98 98 Night Vision
White White
Discontinued
Geovision GV-VD8700 8MP IR H.265 Outdoor Dome IP Security Camera 84-VD87000-001U

Geovision GV-VD8700 8MP IR H.265 Outdoor Dome IP Security Camera 84-VD87000-001U

Brand: Geovision

Part Number: GV-VD8700
$857.15
  • Compression : H.265, H.264,
  • Field of View (Horizontal) : 106°Field of View 42°Field of View
  • Max. FPS and Resolution : 30fps at 4K (8MP)
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 3.3~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.5" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.5"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
8MP (4K) 8MP (4K)
131 131 Night Vision
White White
Discontinued
GeoVision GV-EDR2700-0F 2MP IR H.265 Outdoor Mini Dome IP Security Camera

GeoVision GV-EDR2700-0F 2MP IR H.265 Outdoor Mini Dome IP Security Camera

Brand: Geovision

Part Number: GV-EDR2700-0F
$129.03
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 100°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
Network (IP) Network (IP)
2MP 2MP
131 131 Night Vision
White White
Discontinued
Geovision GV-VD2702 2MP Outdoor Dome IP Security Camera

Geovision GV-VD2702 2MP Outdoor Dome IP Security Camera

Brand: Geovision

Part Number: GV-VD2702
$378.00
  • Compression : H.265,
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP

Description

Geovision GV-VD5700 5MP IR H.265 Outdoor Dome IP Security Camera

GV-VD5700 is an outdoor camera for optimal day and night surveillance. GV-VD5700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4ft) IR effective distance. The camera also uses P-iris to produce images with better clarify and contrast. It is adjustable in 3 axis (pan, tilt and rotate).

Key features:

  • 5MP
  • 4~8mm Varifocal Lens
  • 1/1.8" progressive Low Lux CMOS
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 2592 x 1944
  • P-Iris for auto iris adjustment
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Megapixel varifocal lens
  • 3-axis mechanism (pan / tilt / rotate)
  • Day and Night function (with removable IR-cut filter)
  • External microphone
  • Intelligent IR
  • Two-way audio
  • One sensor input and digital output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Dimensions: Ø 150.3 x 105.5 mm (5.92'' x 4.15'')
  • Horizontal angle of view: 88° ~ 51°

Compatible Accessories:

  • GV-Mount100 Straight Tube and Junction Box Kit
  • GV-Mount101 Straight Tube Kit
  • GV-Mount200 Wall Pendant Tube
  • GV-Mount203 Wall Pendant Tube and Junction Box Kit
  • GV-Mount206 Wall Mount Bracket Kit
  • GV-Mount300 Convex Corner Adapter Kit
  • GV-Mount310 Concave Corner Adapter Kit
  • GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6")
  • GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5")
  • GV-Mount702 Extension Tube
  • GV-Mount903 GV-FE / GV-VD Dome Housing
  • GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter
  • GV-Relay V2

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
125-VD5700-000 88-VD57000-0010 VC-CAG-VD5700
Audio Capability:
Two-Way Audio
Audio Support:
Built-in Microphone
Camera Style:
Dome
Color:
White
Compression:
H.265 H.264 MJPEG
Durability:
Vandal Proof Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
88 51
Key Features:
Mobile App Support (IOS, Android) Night Vision (IR) Wide Dynamic Range (WDR) ONVIF
Lens Size:
4~8mm
Lens Type:
Varifocal (Manual Zoom) Lens
Max. FPS and Resolution:
30fps at 2592 x 1944
Night Vision Range (ft):
98
Optical Zoom:
2x Optical Zoom
Resolution:
5MP (3K)
SD Card Support:
Sensor Size:
1/1.8"
Sensor Type:
CMOS
Technology:
Network (IP)
Warranty:
2-year Manufacturer Warranty
