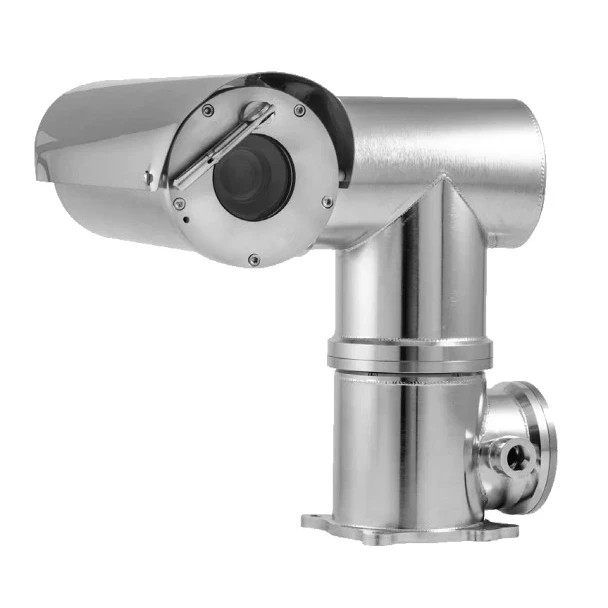

Hanwha Vision TNU-X6320A2F2WT1-M 2MP Explosionproof Outdoor PTZ IP Security Camera with 4.44-142.6mm Lens, 32x Optical Zoom, Single-Mode Fiber and Integrated Wiper
The Hanwha Vision TNU-X6320A2F2WT1-M is a premium explosion-proof PTZ security camera engineered for hazardous industrial environments requiring INMETRO certification. This advanced IP surveillance camera features a robust 316L electro-polished stainless steel housing with INMETRO hazardous location certification, making it ideal for explosive-prone areas in Brazilian and Latin American markets. The camera delivers exceptional 2.4MP sensor performance with 32x optical zoom capabilities and built-in single-mode fiber optic connectivity for long-range monitoring in oil refineries, chemical plants, gas facilities, and other hazardous locations.
Professional-grade optics and intelligent features set this PTZ camera apart from standard industrial surveillance solutions. The motorized 4.44-142.6mm lens provides extraordinary zoom range from wide-angle 64.44° to telephoto 2.29° field of view, enabling detailed monitoring of distant targets. Built-in digital image stabilization with gyro sensor ensures steady footage during zoom operations, while the integrated silicone wiper system maintains clear vision through harsh weather conditions. The single-mode fiber optic module (9/125μm) provides secure, interference-free data transmission over long distances, making it ideal for large industrial facilities.
Advanced video analytics and enterprise-grade networking capabilities enhance security monitoring effectiveness. The camera supports multiple compression formats including H.265, H.264, and MJPEG with WiseStreamII technology for optimized bandwidth utilization. Comprehensive video analytics include motion detection, tampering detection, directional detection, and facial recognition capabilities. The system operates reliably in extreme temperatures from -40°C to +60°C with 110VAC power supply, featuring IP66/67 weatherproof protection for ultimate durability in INMETRO-regulated hazardous environments.
Key Features:
- Explosion-proof certified for hazardous locations (INMETRO approval)
- 2.4MP CMOS sensor with 1920x1080 resolution at 60fps
- 32x optical zoom with 16x digital zoom (4.44-142.6mm lens)
- Single-mode fiber optic connectivity (9/125μm duplex)
- Integrated wiper system with silicone blades for harsh weather
- 316L electro-polished stainless steel construction
- IP66/67 weatherproof protection
- 110VAC power supply for industrial applications
- Extreme temperature operation: -40°C to +60°C
- H.265/H.264/MJPEG compression with WiseStreamII optimization
Downloads
Additional Information
Camera Style:
|
PTZ
|
Compression:
|
H.265
H.264
MJPEG
|
Day/Night:
|
ICR (True Day/Night)
|
Dimensions:
|
18.0 x 15.7 x 15.7 in
|
Lens Size:
|
4.44-142.6mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
Optical Zoom:
|
32x Optical Zoom
|
Power Supply:
|
110 VAC
|
Protection Code:
|
IP66
|
Resolution:
|
2MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
