Description

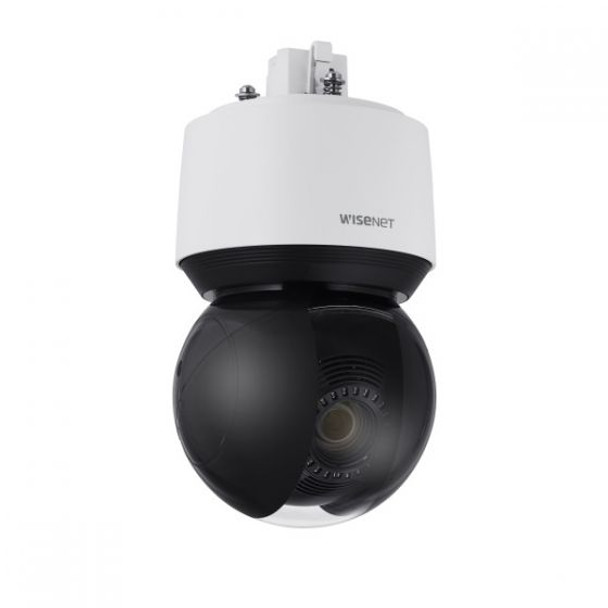

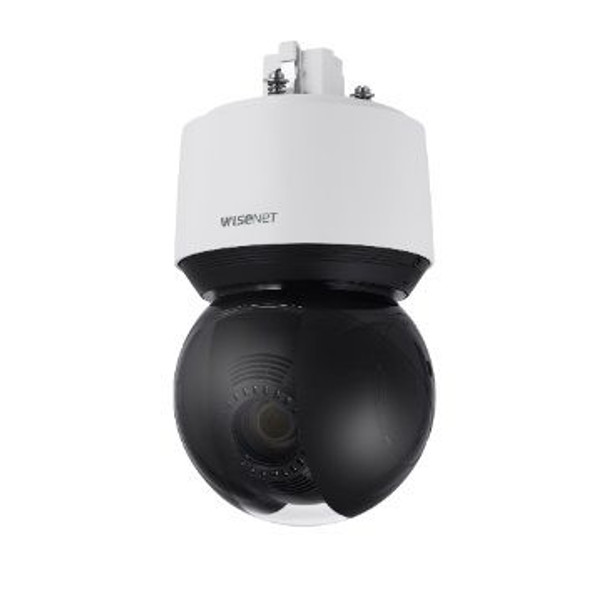

Samsung Hanwha XNP-6400 2MP Outdoor PTZ IP Security Camera with 40x Optical Zoom
Key Features:
- Increased look-up tilt range
- 360° endless pan
- advanced video analytics and sound classification (Optional SPM-4210 I/O box required for audio detection/classification)
- dual SD card slots
- PoE+
- Temperature range from -40°F ~ +131°F.
- Max. 2MP resolution
- 4.25~170mm (40X optical zoom) zoom (digital 32x, total 1280x zoom)
- Day & Night (ICR), DIS (Built-in gyro sensor)
- Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
- Triple codec H.264, H.265, MJPEG codec, WiseStream II
- IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
- PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
- extreme WDR
Downloads
User Manual
Hanwha-Techwin-(Samsung)-XNP-6400-User-Manual-A1
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNP-6400-Quick-Start-Guide-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Audio Detection
|
|
Aperture:
|
F1.6
F4.95
|
|
Camera Style:
|
PTZ
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
MJPEG
H.265
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
|
|
Digital Zoom:
|
32
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
65.66
1.88
|
|
Image Enhancements:
|
Digital Image Stabilizer (DIS)
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Turkish
Spanish
|
|
Lens Size:
|
4.25~170mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
25 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (Color):
|
0.05 Lux at F1.6 1/30sec
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Noise Reduction:
|
SSNRV
|
|
Optical Zoom:
|
40x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
NEMA-TS 2
|
|
RAM:
|
4GB
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
WDR 150dB
Extreme WDR
|
