Hikvision DS-2CD6D52G0-IHS 6mm 5MP Dual-Directional PanoVu IP Security Camera with Built-In IR
The Hikvision DS-2CD6D52G0-IHS 6mm is a dual-directional PanoVu network camera designed to provide flexible multi-angle coverage using two adjustable lenses in a single housing . Featuring a 1/2.7" progressive scan CMOS sensor, it captures video at up to 2560 × 1920 resolution at 30 fps and supports advanced compression technologies including H.265+, H.265, H.264+, and H.264 for efficient bandwidth and storage management . With 120 dB WDR, built-in IR illumination up to 10 m, and IP67/IK10-rated metal housing, this camera is suitable for demanding indoor and outdoor surveillance environments .
Key Features:
- 5MP resolution up to 2560 × 1920 at 30 fps
- 6mm fixed lens with 49° horizontal field of view and F1.6 aperture
- Dual-lens dual-directional PanoVu design
- 120 dB wide dynamic range
- H.265+/H.265/H.264+/H.264/MJPEG video compression
- Built-in IR illumination up to 10 m (850 nm) with Smart Supplement Light
- Built-in microSD/SDHC/SDXC card slot up to 256 GB
- ONVIF Profile S/G/T compliant
- IP67 weatherproof and IK10 vandal-resistant metal housing
- Power supply 12VDC or PoE (802.3af), max. 11 W
- Operating temperature -40°C to 60°C

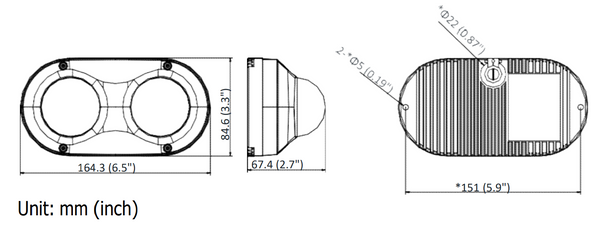

- Dimensions 164.3 × 84.6 × 67.4 mm
- Weight 770 g
Downloads
Quick Start Guide
Hikvision-DS-2CD6D52G0-IHS-6MM-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2CD6D52G0-IHS-6MM-User-Manual-A1
Firmware
Firmware:-Hallway-mode_5.5.94_200707
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
DS-2CD6D52G0-IHS
HX-OD6D52G06
|
|
Analytics:
|
Motion Detection
Tampering
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
CB
FCC
REACH
UL Listed
WEEE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
164.3 x 84.6 x 67.4 mm (6.5 x 3.3 x 2.7 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
63
|
|
Field of View (Horizontal):
|
49
|
|
Field of View (Vertical):
|
35
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Defog
Electronic Image Stabilization (EIS)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Mirror
Privacy Mask
Saturation
Sharpness
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
11 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1920
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
0.0018 lux at F1.6 AGC on
|
|
Minimum Illumination (Color):
|
0.009 lux
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
33
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision PanoVu Series
Hikvision Smart Series
|
|
Protection Code:
|
IK10
IP67
|
|
Region of Interest (ROI):
|
4
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
