Description

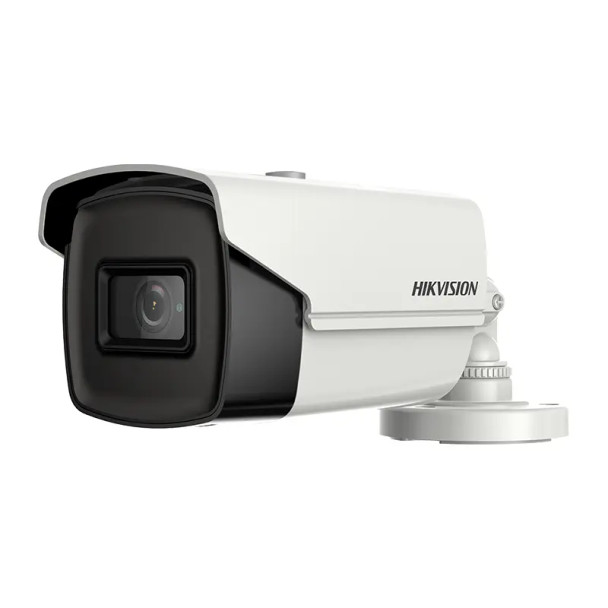

Hikvision DS-2CE16U1T-IT3F(3.6MM) TurboHD 8MP Outdoor 195' EXIR Bullet Analog Security Camera, 3.6mm Fixed Lens, White
The Hikvision DS-2CE16U1T-IT3F 8 MP Outdoor Bullet Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
EXIR 2.0 is Hikvision’s proprietary IR extended range technology, which has a range of 195 feet (60 meters).
The 2.8 mm and 6 mm fixed lens options are optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Key Features:
- 8 MP High Performance CMOS
- Up to 3840 x 2160 Resolution
- 2.8 mm and 6 mm Fixed Lens Options
- 3D DNR, DWDR
- EXIR 2.0 up to 195 ft (60 m) IR Range
- Multiprotocol Output: TVI/AHD/CVI/CVBS
- Up-the-Coax (HIKVISION-C)
- IP67 Protection
Downloads
User Manual
Hikvision-DS-2CE16U1T-IT3F(3.6MM)-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
DS-2CE16U1T-IT3F
HX-BL16U1T33
DS-2CE16U1T-IT3F 3.6MM
|
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
cULus
FCC
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
81.9 x 86.7 x 217.9 mm (3.22 x 3.41 x 8.58 in))
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
79
|
|
HD CCTV Type:
|
HD-TVI
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Mirror
Sharpness
|
|
Languages:
|
English
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
3.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
5.3 Watts
|
|
Max. FPS and Resolution:
|
15fps at 3840 x 2160
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.01 Lux at F1.2 AGC ON
|
|
Night Vision Range (ft):
|
195
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
8MP (4K)
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/50000s
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
WDR 105dB
|
