Description

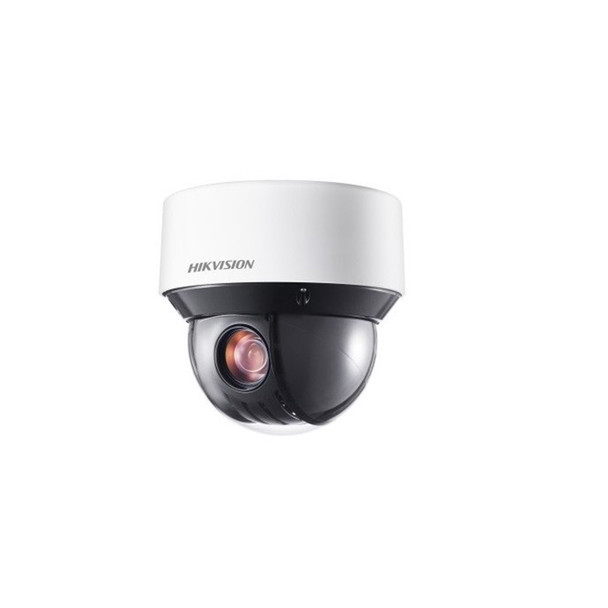

Hikvision DS-2DE4A225IW-DE 2MP IR H.265 Outdoor PTZ IP Security Camera
Hikvision DS-2DE4A225IW-DE 2 MP 25x Network IR PTZ Camera adopts 1/2.8" progressive scan CMOS chip. With the 25x optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
Key Features:
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 25x optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, BLC
- Up to 50 m IR distance
- 12 VDC & PoE+ (802.3 at, class4)
- Support H.265+/H.265 video compression
Replacement of:
DS-2DE4A204IW-DE
DS-2DE5230W-AE3
Downloads
Quick Start Guide
11336_QuickStartGuideofESeriesNetworkSpeedDomeV5.5.020170815-A1.pdf
User Manual
Click to download!
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
57.6
2.5
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Product Series:
|
Hikvision Value Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
