Description

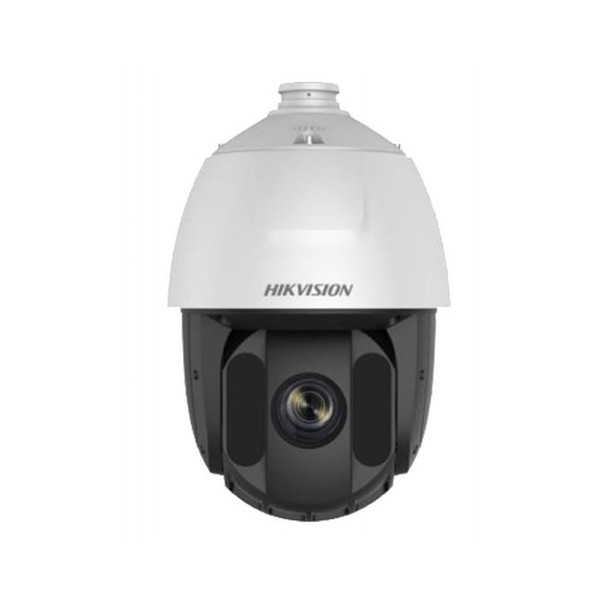

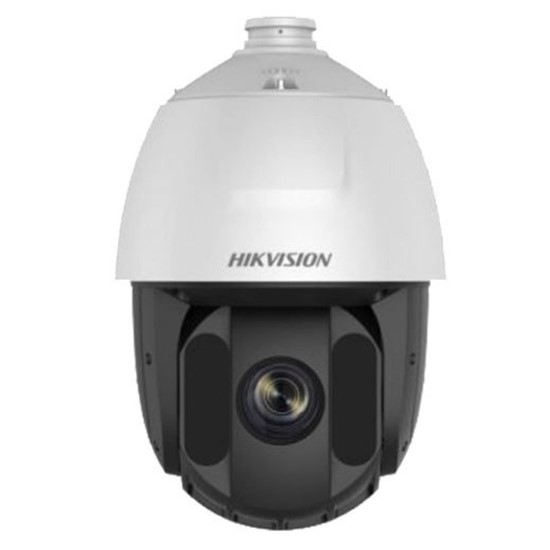

Hikvision DS-2DE5225IW-AE 2MP IR Outdoor PTZ IP Security Camera with 25x Optical Zoom
Hikvision DS-2DE5225IW-AE IR Speed Dome IP Security Camera Cameras produce images with a resolution of up to 1920 x 1080 pixels. The embedded 1/2.8" progressive scan CMOS chip supports 120 dB WDR, and the 25x optical zoom allows for greater detail to be collected over more expansive areas.
Key Features:
- Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0.001 Lux @ (F1.6, AGC ON) 0 Lux with IR
- Up to 1920 x 1080 Resolution
- H.265+/H.265 Video Compression
- Main Stream: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 fps (1280 × 960, 1280 × 720)
- Up to 490ft (150 m) IR Distance
- 24 VAC and Hi-PoE (maximum 30 W)
Related Products:
JBPW-L Wall Mounting Bracket for Speed Dome, CPM-S Ceiling pendant mount - Short, WMP-L Wall mount PTZ - Long
Replacement of:
EPI-5225I-AE
Downloads
Datasheet
Hikvision-DS-2DE5225IW-AE-Datasheet-A1
User Manual
Hikvision-DS-2DE5225IW-AE-User-Manual-A1
Quick Start Guide
Hikvision-DS-2DE5225IW-AE-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
PTZ
|
|
Compression:
|
H.265 Plus
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
57.6
2.5
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Night Vision Range (ft):
|
490
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Product Series:
|
Hikvision Value Series
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
