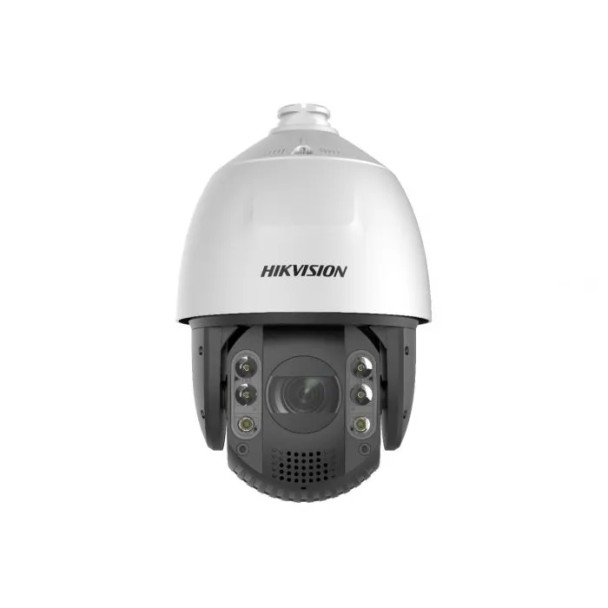

Hikvision DS-2DE7A425IW-AEB AcuSense 4MP IR Outdoor PTZ IP Security Camera, 25x Optical Zoom, 4.8~120mm Lens, White
Hikvision DS-2DE7A425IW-AEB(T5) 4 MP 25× IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- 1/2.8" progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 200 m IR distance
- Focuses on human and vehicle targets classification based on deep learning
- Face capture: Up to 5 faces captured at the same time
Downloads
User Manual
Hikvision-DS-2DE7A425IW-AEB-User-Manual-A1
Datasheet
Hikvision-DS-2DE7A425IW-AEB-Datasheet-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Face Capture
|
|
Aperture:
|
F1.6
|
|
Audio Support:
|
Built-in Speaker
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
ISUP
|
|
Compression:
|
H.264
H.265
H.265 Plus
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
7217.8
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|
220 x 363.3 mm (8.66 x 13.91 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
50.8
2.6
|
|
Focus:
|
Auto Focus
Semi-Auto
Manual
|
|
Identify (ft):
|
721.8
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
ADC12
|
|
Max Power Consumption:
|
42 Watts
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
0.001 Lux at F1.6 AGC ON
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Mount Type:
|
Pendant
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
656
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
2864.2
|
|
Optical Zoom:
|
2.5x Optical Zoom
|
|
Power Supply:
|
Hi-PoE
24 VAC
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Value Series
|
|
Protection Code:
|
IP66
IK10
|
|
Recognize (ft):
|
1443.6
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/30000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
