Description

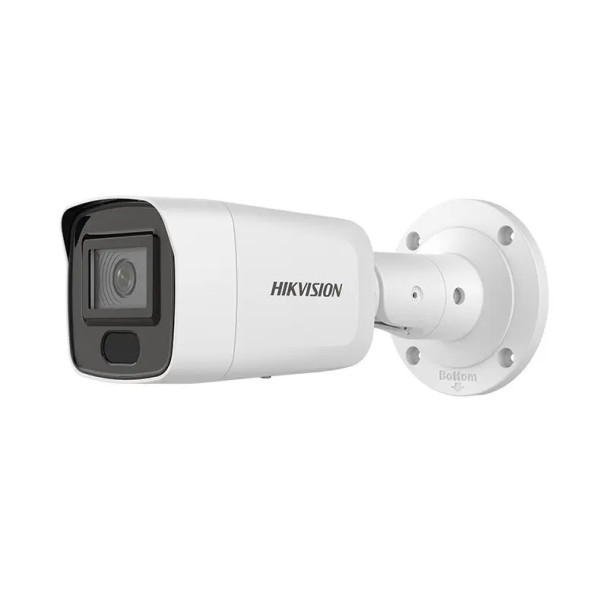

Hikvision PCI-B15F4S 5MP Outdoor Bullet IP Security Camera with 4mm Lens and Built-In IR
The Hikvision PCI-B15F4S is a high-performance 5MP outdoor bullet IP security camera designed to provide superior image clarity and advanced surveillance capabilities for both residential and commercial applications. Featuring a 1/2.7 inch progressive scan CMOS sensor, this camera delivers a maximum resolution of 2592x1944 at up to 20 fps, ensuring detailed video capture for accurate identification. To maintain clear visibility in challenging lighting, it utilizes Powered-by-DarkFighter technology for excellent low-light performance and 120 dB True Wide Dynamic Range (WDR) to handle high-contrast scenes with heavy backlighting. The PCI-B15F4S is equipped with AcuSense technology, which leverages deep learning algorithms to classify human and vehicle targets, significantly reducing false alarms caused by animals or environmental factors. Its rugged IP67-rated housing provides complete protection against dust and water, making it an ideal choice for outdoor environments with extreme weather conditions ranging from -30°C to 60°C. With a 4mm fixed lens offering a 78 degree horizontal field of view and integrated IR illuminators reaching up to 40 meters, this camera provides reliable 24/7 monitoring. This model is perfectly suited for users requiring intelligent perimeter protection and high-definition video evidence in areas such as parking lots, building entrances, and perimeter fences.
Key Features:
- 5MP high resolution; captures detailed images at a maximum resolution of 2592x1944.
- AcuSense technology; utilizes deep learning for human and vehicle target classification to minimize false alarms.
- Powered-by-DarkFighter technology; provides exceptional color imaging in ultra-low light conditions.
- 120 dB True WDR; ensures balanced and clear images in scenes with strong backlight or high contrast.
- 40 meter IR range; offers high-quality black and white video in complete darkness for long-range night vision.
- Efficient H.265+ compression; reduces bandwidth and storage requirements without compromising video quality.
- IP67 weather resistance; protects the camera against water and dust for reliable outdoor performance.
- Built-in microSD slot; supports local storage up to 256 GB for data redundancy.
- Advanced streaming technology; ensures smooth live view and data self-correction even in poor network environments.
- Smart events; includes line crossing, intrusion, region entrance, and region exiting detection for proactive security.
- 1/2.7 inch progressive scan CMOS; delivers high-quality sensor performance for professional surveillance.
- Audio and alarm interfaces; features one audio input and output along with alarm I/O for integrated security systems.
- Multiple video streams; supports up to four simultaneous streams for flexible monitoring and recording.
- Wide operating temperature; functions reliably in extreme environments from -30°C to 60°C.
- Flexible power options; supports both 12 VDC and Power over Ethernet (802.3af) for simplified installation.
Downloads
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-B15F4S
|
|
Analytics:
|
Motion Detection
Tampering
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.4
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
252.62
|
|
Dimensions:
|
78.8 x 78.6 x 235.9 mm (3.1 x 3.1 x 9.3 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
102
|
|
Field of View (Horizontal):
|
78
|
|
Field of View (Vertical):
|
58
|
|
Identify (ft):
|
22.97
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Electronic Image Stabilization (EIS)
Defog
|
|
Image Settings:
|
Brigthness
Contrast
Sharpness
Saturation
Privacy Mask
Mirror
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
5MP
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2592 x 1944
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.4 AGC ON
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
98.43
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Performance Series
|
|
Protection Code:
|
IP67
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
49.21
|
|
Region of Interest (ROI):
|
5
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
