Description

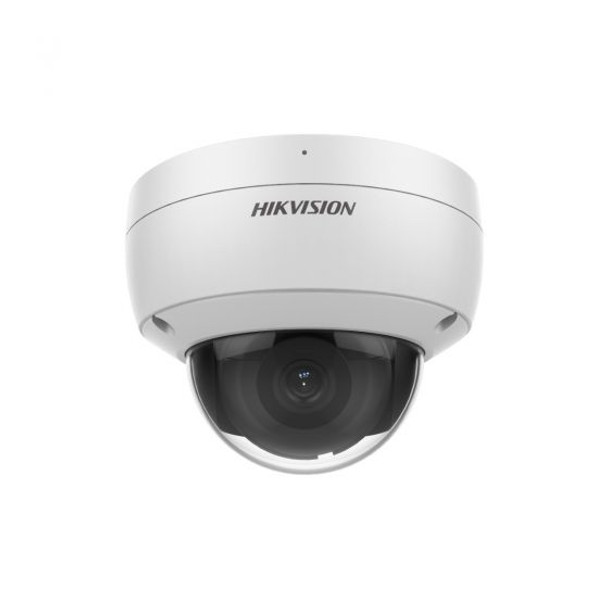

Hikvision PCI-D18F4S 8MP AcuSense WDR Dome Outdoor IP Security Camera, 4mm Fixed Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-byDarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle target classification based on deep learning
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Downloads
Datasheet
Hikvision-PCI-D18F4S-Datasheet-A1
User Manual
Hikvision-PCI-D18F4S-User-Manual-A1
Quick Start Guide
Hikvision-PCI-D18F4S-Quick-Start-Guide-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-D18F4S
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
Tampering
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
AAC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
324.80
|
|
Dimensions:
|
121.4 x 92.2 mm (4.8 x 3.6 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
100
|
|
Field of View (Horizontal):
|
88
|
|
Field of View (Vertical):
|
50
|
|
Identify (ft):
|
32.81
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Mirror
Privacy Mask
Saturation
Sharpness
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
25fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 lux at F1.6 AGC on
|
|
Network Interface:
|
1x RJ-4510M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
127.95
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
|
|
Protection Code:
|
IK10
IP67
|
|
Recognize (ft):
|
65.62
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
