Honeywell 269R Hardwired Hold-Up Switch with Stainless Steel Cover

Brand: Honeywell
Part Number: 269R
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
  • Honeywell 269R Hardwired Hold-Up Switch with Stainless Steel Cover - 1
  • Honeywell 269R Hardwired Hold-Up Switch with Stainless Steel Cover - 2
Fast Shipping Fast Shipping
Technical Support Technical Support

Description

Honeywell 269R Hardwired Hold-Up Switch with Stainless Steel Cover

Honeywell’s series of hold-up devices have been designed for silent operation. Available in a stainless steel cover or hardwired, V-Plex® and wireless versions, they mount quickly and easily in discreet locations. They are ideally suited for use in locations such as banks, jewelry stores, retail establishments or any situation that requires hold-up notification.

Key Features:

  • Silent operation
  • Double-pole double-throw contacts for multi-notifications
  • Twin 45° screw terminals with EOL resistor splicing terminal
  • Adhesive pads for temporary positioning while installing
  • Stainless steel cover (269R and 269SN)
  • Fully supervised
  • Convenient reset key for testing and/or reset of alarm

Downloads

Specifications

Part No.Description
269R Hardwired Hold-Up switch with stainless steel cover

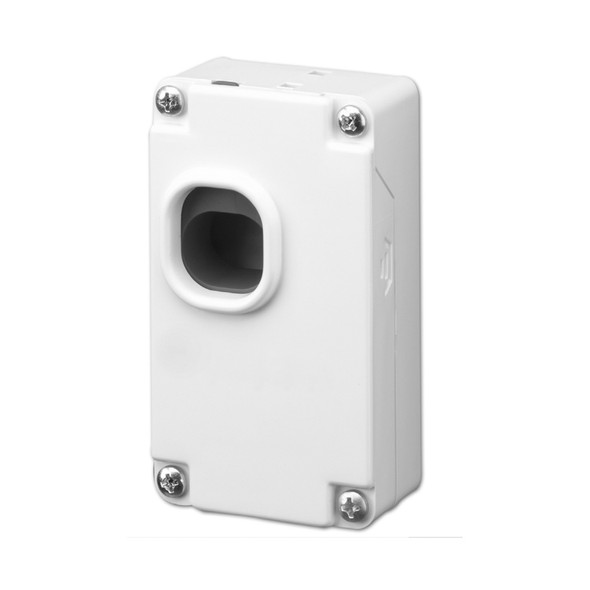

270R Hardwired Hold-Up switch in plastic case
269SN V-Plex Hold-Up switch with stainless steel cover (polling loop only)
5869 5800 Series Wireless Hold-Up Switch



  • Switch type
    • Plunger type DPDT
  • Switch action
    • Selectable latching or momentary
  • Switch Rating
    • 0.2A @ 30VDC max.
  • Connections
    • Four position 45° screw terminal block for each output side with EOL resistor splicing terminals
  • Operating Temp
    • 14° F to 140° F (-10° to 60°C)
  • Dimensions
    • 3.5" L x 2.0" W x 1.25" D
    • Listed for UL636 Hold-Up alarm units and systems
