12-Camera Dome IP Security Camera System 4MP - 2.8mm Fixed Lens, 100ft Night Visibility, WDR, 3TB of Storage, LTN8712-D2F

LTN8712-D2F
Save
24%
12-Camera Dome IP Security Camera System 4MP - 2.8mm Fixed Lens, 100ft Night Visibility, WDR, 3TB of Storage, LTN8712-D2F
Hover on image to enlarge
$2,800.00
$2,136.00
You save: $664.00 (24%)



This item has been discontinued and is not in stock. Below is the suggested replacement. Please contact us by phone, chat, or email to confirm compatibility. 12-Camera 4MP Dome IP Security Camera System - 2.8mm Fixed Lens, 100ft Night Visibility, True WDR, 3TB of Storage, LTN8712-D4W.

  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Description

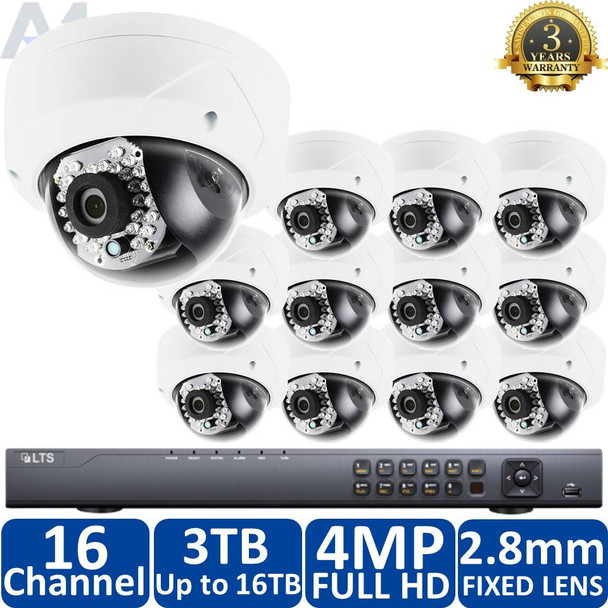

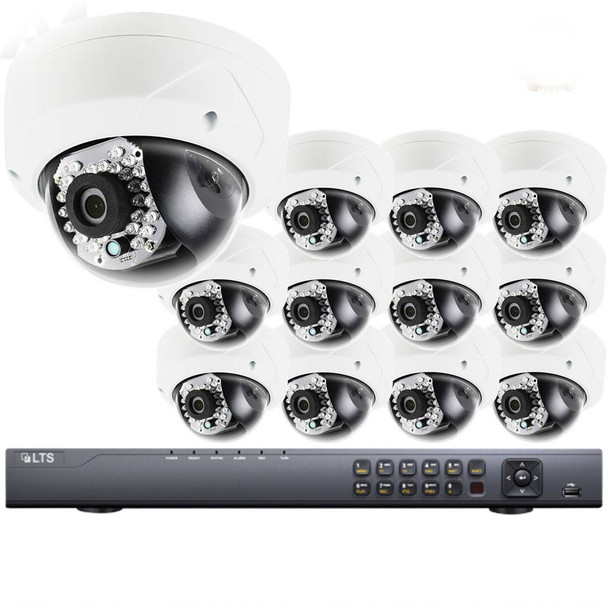

LTS 12-camera 4MP HD Dome IP Security Camera System LTN8712-D2F

Incredible video quality and an unbeatable price make this 12-camera IP camera system a great choice for any home or small business. Equipped with 12 vandal proof dome cameras, this surveillance system gives you impressive 4MP Full HD video quality and simple plug and play installation. Ready for any indoor or outdoor application, this system offers the versatility needed to meet any demand.

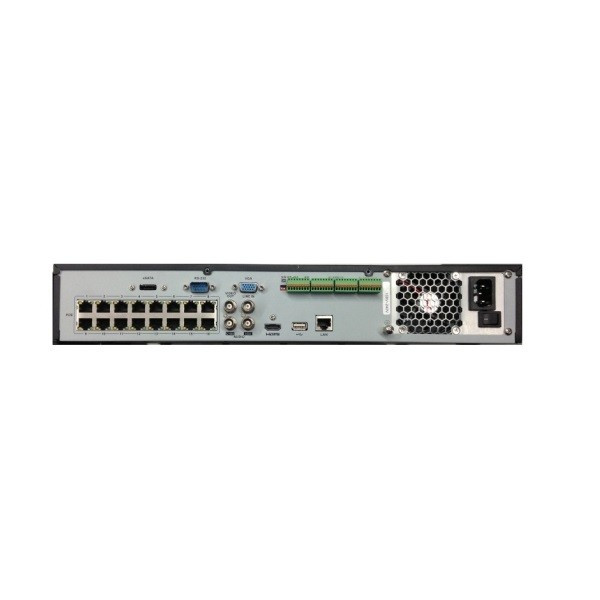

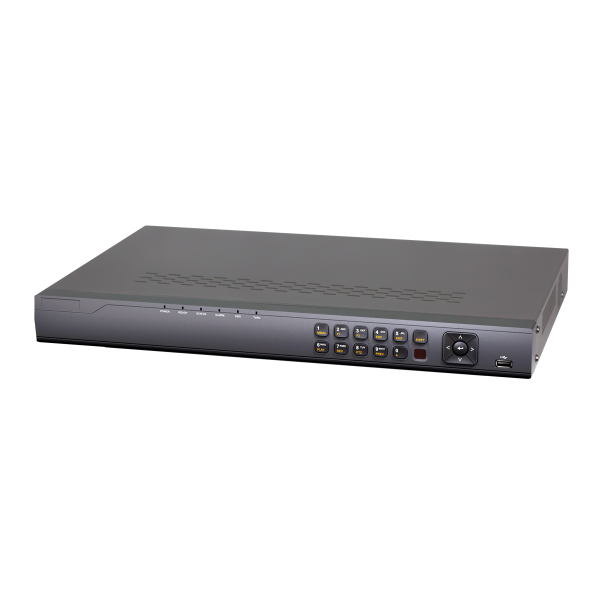

Tying everything together is theLTS LTN8716K-P16 16ch Network Video Recorder. The LTN8716K-P16 offers a true plug & play installation thanks to its built-in 16-port POE switch. Power and video transmission for each camera is provided via a single CAT5E cable and the LTS NVR automatically connects preventing the long process of IP camera configuration common to most IP Security Camera systems. This NVR comes with up to 12TB of storage (3TB of Pre-installed).

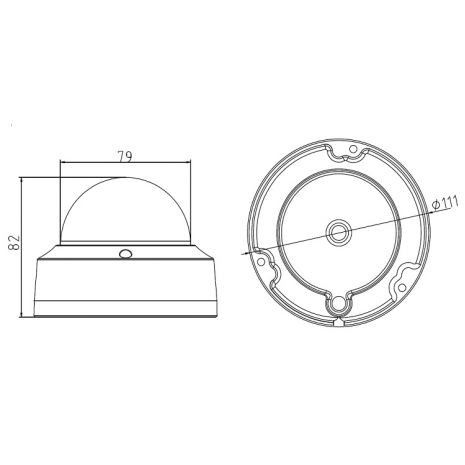

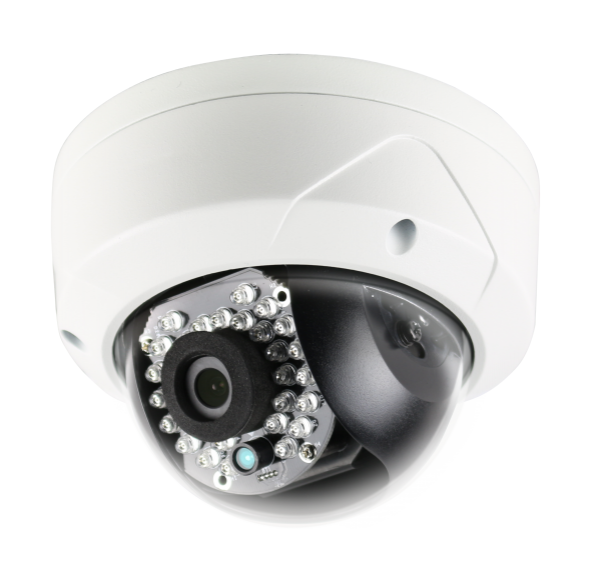

The LTS Security CMIP7442-28M Security Camera is a dome camera designed for indoor or outdoor usage. It comes equipped with a 2.8mm fixed lens capable of producing images up to 20fps @ 2688x1520p resolution. WDR technology lets this camera create clear and crisp images in otherwise difficult low lux and high contrast settings. With IP66 and IK08 protection standards, this camera is well protected from inclement weather as well as free ranging vandals and vagabonds.

Key Features of the LTN8716K-P16 Platinum NVR

  • 16 Channel Network Video Recorder
  • Platinum Series
  • Support Live View,
  • Playback up to 4K(8MP) IP Camera
  • 160MB Bandwidth
  • 1U
  • 16 Built-in PoE
  • 4K (3840x2160) HDMI Video Output
  • 2 SATA up to 12TB
  • H.265/H.264/H.264+/MPEG4

Key Features of the CMIP7442-28M

  • 4.1MP High Definition
  • 1/3″ CMOS
  • 2.8mm Fixed Lens
  • 20fps @ 2688x1520p
  • WDR Technology - 120dB
  • Weather and Vandalproof
  • 30 IR LEDs up to 100ft
  • 3D DNR, BLC, VCA
  • DC12V, POE

This system includes:

1x LTN8716K-P16
12x CMIP7442-28M
12x 100ft of Pre-made cable
3TB of Storage
3-Year Warranty

This product is also associated with:
Security Camera Systems

Features

Manufacturer:
LTS Security
Product Type:
Systems
Warranty:
3-year Manufacturer Warranty
Discontinued:
yes

Security Camera Systems Features

Lens (Systems):
2.8mm
Lens Type (Systems) :
Fixed Lens
Pre-Installed Storage:
3 TB Storage
Recorder Channel Capacity:
16 Channel
Resolution (System):
4 Megapixel
Security Camera Types:
Dome Security Cameras
Surveillance Technology:
IP Security System
Number of Security Cameras:
12 camera system
Technical Specs

Video/Audio Input
IP Video Input 16-CH
Two-Way audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 80Mbps
Remote Connection 128
Video/Audio Output
Recording Resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA Output 1-ch, resolution: 1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
Audio Output 1-ch, RCA (Linear, 1kΩ)
Decoding
Live View/Playback Resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 16-ch@4CIF, 12-ch@720P, 6-ch@1080P
Hard Disk
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 6TB for each disk
External Interface
Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
USB Interface 1 × USB 2.0 and 1 × USB 3.0
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Max. Power 200W
Supported Standard AF and AT
General
Power Supply 100~240V AC
Consumption ≤ 15W
Working Temperature +14 ºF~ + 131 ºF(-10 ºC ~ +55 ºC )
Working Humidity 10% - 90%
Casing 19-inch rack-mounted 1U casing
Dimensions (WxDxH) 445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch)
Weight ≤ 1 kg (2.2 lb)
