Description

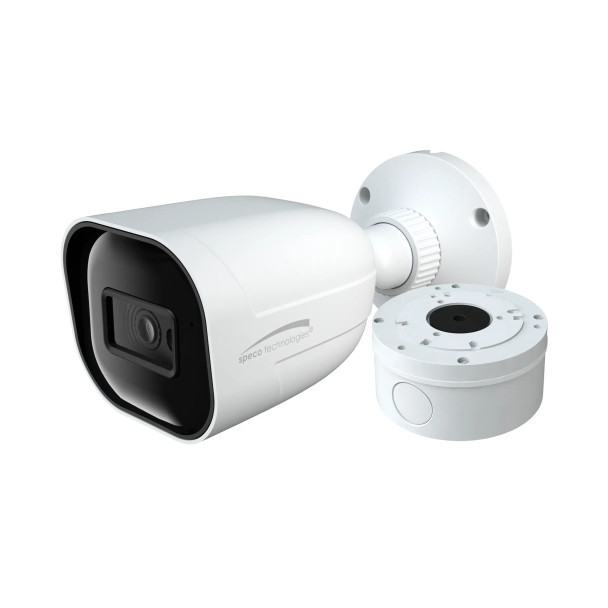

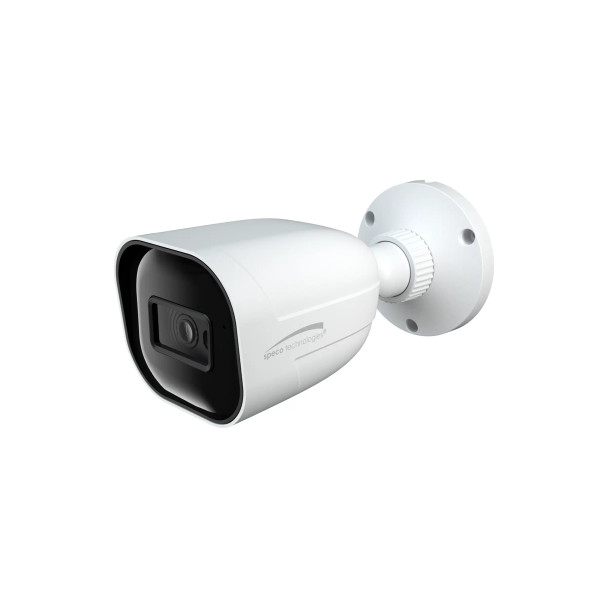

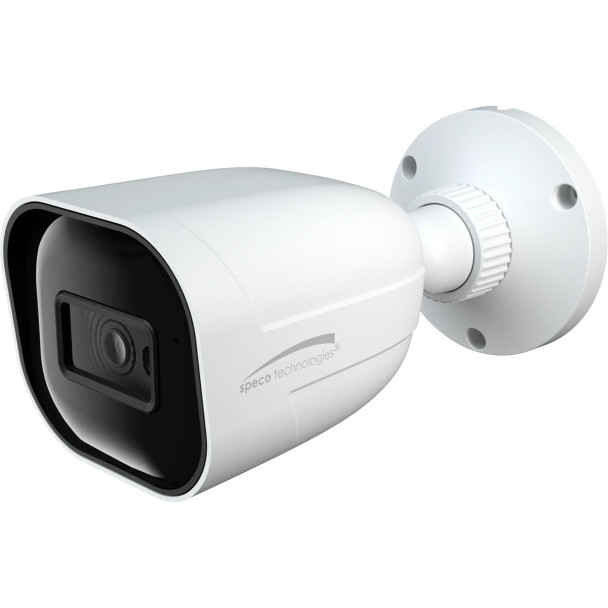

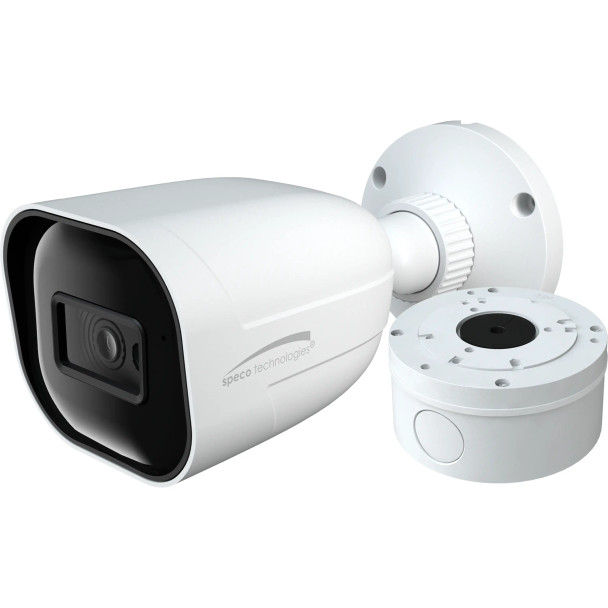

Speco O4B9 4MP WDR Outdoor IR Bullet IP Security Camera with Advanced Analytics, 2.8mm Fixed Lens, White
Key Features:
- Supports up to 4MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- H.265/H.264/MJPEG compression supported
- True Day/Night operation (IR cut filter)
- Adaptive IR LEDs reduce IR saturation
- IR range: Up to 98’ (depending on scene reflection)
- Micro SD slot up to 256GB (card not included)
- True WDR (wide dynamic range) operation
- IP67 compliant, weather resistant

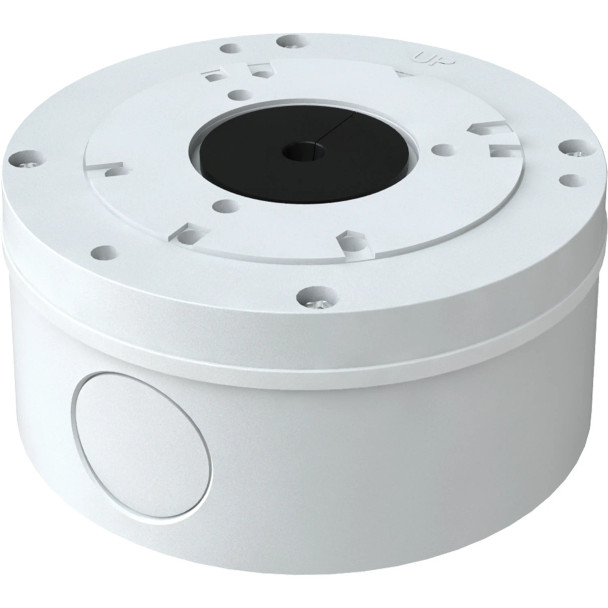

- Junction box included (works with NPT/BSP specifications)
- Conformant with ONVIF Profile G/S/T
- 5 year warranty
- NDAA Compliant*
- UL listed**
*Products are in compliance with NDAA Section 889 Part B Guidelines
**As of May 2023
Replacement of:
O4B6N
Downloads
Datasheet
Speco-O4B9-Datasheet-A1
User Manual
Speco-O4B9-User-Manual-A1
Quick Start Guide
Speco-O4B9-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
Line Crossing
Object Detection
Intrusion Detection
Face Detection
Tampering
People Counting
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x 3.5mm
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
cULus
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
115
|
|
Field of View (Horizontal):
|
95.3
|
|
Field of View (Vertical):
|
53.2
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Auto Gain Control (AGC)
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Flip
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
4MP
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2592 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Mobile Apps:
|
Speco Blue
SecureGuard Client
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Speco Blue Series
|
|
Protection Code:
|
IP67
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Sub Stream:
|
720P
D1
CIF
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
