Description

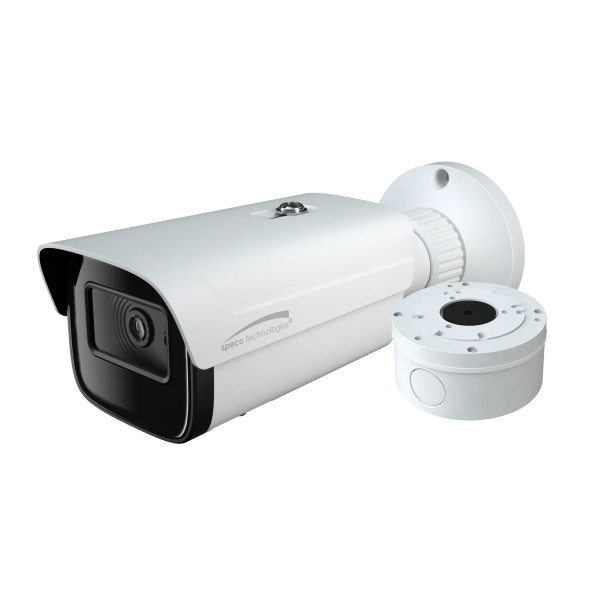

Speco O8B9 8MP Night Vision Bullet IP Security Camera with Advanced Analytics, Junction Box, 2.8mm Fixed Lens
Key Feature:
- Captures up to 8MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- True Day/Night operation (IR cut filter)
- IR range: up to 165’ (depending on scene reflection)
- True WDR operation
- Micro SD card slot up to 256GB (card not included)
- Conformant with ONVIF G/S/T
- Line crossing, region intrusion, and video blurring detection
- Face, People, and Vehicle Detection and Capture*
- People/Vehicle Detection*
- IP67 Weather Resistance

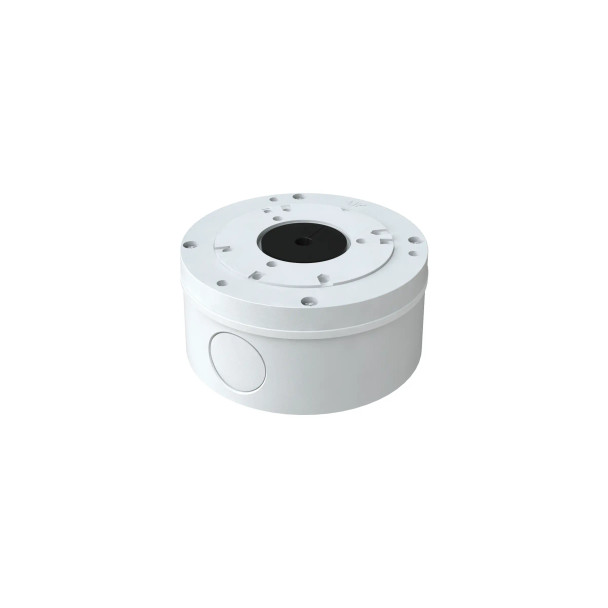

- Junction box included
- 5 year warranty
- NDAA Compliant**
*with compatible Speco Blue recorder
**Products are in compliance with NDAA Section 889 Part B Guidelines
Downloads
Datasheet
Speco-O8B9-Datasheet-A1
User Manual
Speco-O8B9-User-Manual-A1
Quick Start Guide
Speco-O8B9-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Line Crossing
Region Entrance Detection
Region Exiting Detection
Intrusion Detection
Face Capture
Face Detection
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x 3.5mm
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
DDNS Functionality:
|
Speco DDNS
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
216.92 x 80.26 x 80.26 mm (8.54 x 3.16 x 3.16 in.)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
127.9
|
|
Field of View (Horizontal):
|
106.9
|
|
Field of View (Vertical):
|
56.9
|
|
Image Enhancements:
|
Defog
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Saturation
Contrast
Sharpness
Corridor Format
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
8MP
|
|
Max Power Consumption:
|
9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.02 Lux at F1.6 AGC ON
|
|
Mobile Apps:
|
SecureGuard Client
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
165
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Speco Blue Series
|
|
Protection Code:
|
IP67
|
|
Remote Users:
|
Up to 10
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
IP address filtering
Password protection
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Sub Stream:
|
1080P
720P
D1
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
CIF
D1
720P
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
