Description

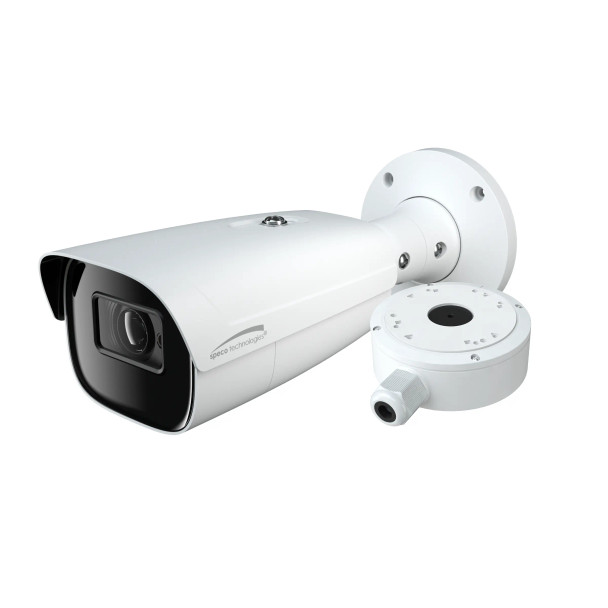

Speco O8B9M 8MP 4K IR Bullet IP Security Camera with Advanced Analytics and Junction Box, 2.8~12mm Motorized Lens, White
Monitor an indoor or outdoor area with the white O8B9M 8MP Network Bullet Camera from Speco Technologies. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 30 fps. IR LEDs provide up to 229' of night vision. The camera features a 2.8-12mm motorized varifocal lens, a wide 96 to 32° horizontal field of view, and two-way audio thanks to a 3.5mm audio input and output. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot supports microSD cards up to 256GB.
Key Features:
- Captures up to 8MP @ 30fps
- Up to 4x optical zoom
- Built-in standard PoE (IEEE 802.3af)
- True Day/Night operation (IR cut filter)
- IR range: up to 229’ (depending on scene reflection)
- True WDR operation
- Micro SD card slot up to 256GB (card not included)
- Conformant with ONVIF G/S/T
- Line crossing, region intrusion, and video blurring detection
- Face/People/Vehicle/Scene Change Detection*
- Two-way audio support
- IP67 Weather Resistance
- Junction box included (works with NPT/BSP specifications)
- 5 year warranty
- NDAA Compliant**
*with compatible Speco recorder
**Products are in compliance with NDAA Section 889 Part B Guidelines
Downloads
Datasheet
Speco-O8B9M-Datasheet-A1
User Manual
Speco-O8B9M-User-Manual-A1
Quick Start Guide
Speco-O8B9M-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Face Capture
Face Detection
Intrusion Detection
Line Crossing
Region Entrance Detection
Region Exiting Detection
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
|
|
Connection Type:
|
Wired
|
|
DDNS Functionality:
|
Speco DDNS
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
100.3 x 279.5 x 88.9 mm (3.93 x 11.00 x 3.5 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
103.8
36.5
|
|
Field of View (Horizontal):
|
96
32
|
|
Field of View (Vertical):
|
64
18.4
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Defog
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Corridor Format
Saturation
Sharpness
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Main Stream:
|
8MP
|
|
Max Power Consumption:
|
12 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.015 Lux
|
|
Mobile Apps:
|
SecureGuard Client
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
229
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Speco Blue Series
|
|
Protection Code:
|
IP67
|
|
Remote Users:
|
Up to 10
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
IP address filtering
Password protection
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Sub Stream:
|
1080P
720P
D1
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
720P
CIF
D1
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
