Ultimate Fever Screening Package for Human Body Temperature Measurement

(No reviews yet) Write a Review
SKU:
OHBTMUv1
Maximum Purchase:
100 units
in High Demand!
  • Ultimate Fever Screening Package for Human Body Temperature Measurement
  • Ultimate Fever Screening Package for Human Body Temperature Measurement
  • Ultimate Fever Screening Package for Human Body Temperature Measurement
  • Ultimate Fever Screening Package for Human Body Temperature Measurement
  • Ultimate Fever Screening Package for Human Body Temperature Measurement
$17,766.00
Frequently bought together:

Description

Ultimate Fever Screening Package for Human Body Temperature Measurement

Key Features:

  • Thermal: 256 × 192px, 7mm Lens
  • Visible: 2MP, 8mm Lens
  • White Light and Loudspeaker Alarm
  • Temperature Accuracy: ±0.5°F (With Blackbody)
  • Thermal Body Temperature Measurement
  • Blackbody working with thermal camera
  • Accurate temperature measurement, safe and effective
  • Non-contact screening, fast pass
  • Multi-person measurement, efficient access
  • Visual abnormal alert to facilitate back-tracking
  • Non-mask detection for the intelligent control

This kit includes:

  • 1x Thermal Camera
  • 1x Blackbody working with thermal camera
  • 2x Tripod for blackbody and thermal camera
  • 2x connector for the tripods
  • 1x 16 Channel AI Deep Learning NVR
  • 1x Fever Screening Management Software

Special order item. No returns accepted.

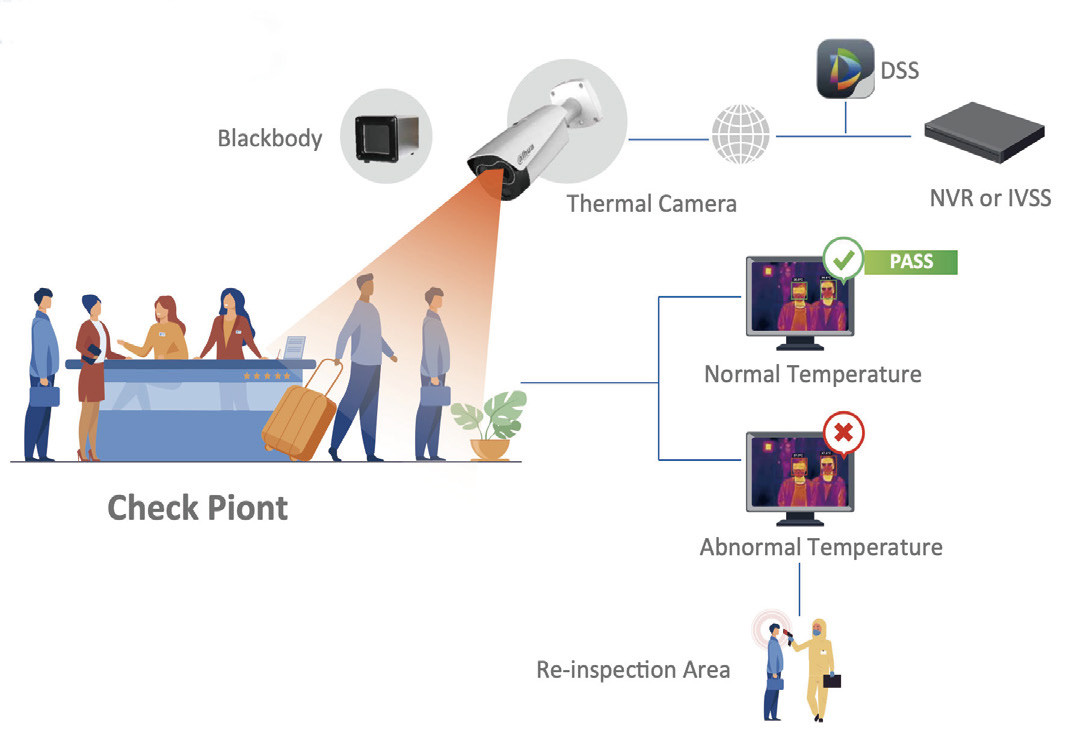

Solution Overview

The Human Body Temperature Monitoring solution offers the latest hybrid thermal network camera that combines a Vanadium Oxide (VOx) sensor with a 2 MP visible-light sensor. The solution also provides a blackbody calibration device that maintains a constant temperature as a reference point for the thermal camera. The thermal camera coupled with the blackbody calibration device and a feature-rich 4 TB Network Video Recorder delivers a contactless solution for continuous, contactless, and non-invasive temperature monitoring.

Human Body Temperature Measuring technology assists in preventing the spread of viral diseases by allowing for quick, accurate detection of elevated body temperatures. Thermal imaging equipment can easily be installed and implemented to detect elevated body temperature in environments such as airports, hospitals, clinics, office buildings, cruise ships, and any large public gathering location.

Thermal Camera Functions

Uncooled Vanadium Oxide (VOx) Technology

Thermal cameras use an uncooled Vanadium Oxide (VOx) sensor that delivers higher thermal sensitivity in a more compact and cost-effective package. Vanadium Oxide cameras are also more reliable, as compared to other thermal imaging technologies, due to less moving parts.

High Thermal Sensitivity

The VOx detector offers high thermal sensitivity (≤ 50 mK) that allows thermal cameras to distinguish objects in a scene with minimal temperature differences. The camera captures detailed images where thermal contrast between object and background is minimal.

Smart Alarm

The camera is equipped with a white-light illuminator and an external speaker that can be triggered when the camera detects an abnormal event either via the thermal or the visible-light sensor. The camera also takes a snapshot of the scene and can record the snapshot.

NVR Functions

The NVR combines Analytics+ algorithms with ePoE technology into an all-in-one network video recorder. This NVR uses a powerful multi-core processor to provide 4K resolution processing for applications where impeccable image details are required. In addition, the NVR can be employed as edge storage, central storage, or backup storage with an intuitive shortcut operation menu for remote management and control. The Analytics+ algorithms significantly improve accuracy and reliability, as compared to standard intelligent features, to achieve precision human facial analysis. The NVR processes 24 facial images per second on up to four (4) channels of video stream face recognition and supports 20 face databases that can store up to 100,000 total face images. The Analytics+ facial recognition extracts

Real-time Face Recognition

Analytics+ performs real-time facial recognition on up to four (4) streaming video channels simultaneously. The server captures and analyzes facial features to determine gender, age, expression, glasses, moustache, and mask, and then can record the faces and store the associated structured data. The server also filters incoming video to display faces that match target features.

Face Database Management

In addition to the 100,000 facial images, the NVR database also stores names, genders, birthdays, nationality, address, and ID information associated with each facial image. The NVR also offers powerful and configurable database management features that can be applied to each face recognition channel independently.

You Can Also Check:

Sold out

  • 1x Thermal Camera
  • 1x Blackbody working with thermal camera
  • 2x Tripod for blackbody and thermal camera
  • 2x connector for the tripods
  • 1x Fever Screening Management Software

Still have questions?

Give us a call at

866-441-2288

View AllClose

Additional Information

Product Type:
Systems
