Videocomm EV-58150AHD Wireless AHD 1080p Elevator Camera System - 200 Floors

Videocomm EV-58150AHD Wireless AHD 1080p Elevator Camera System - 200 Floors

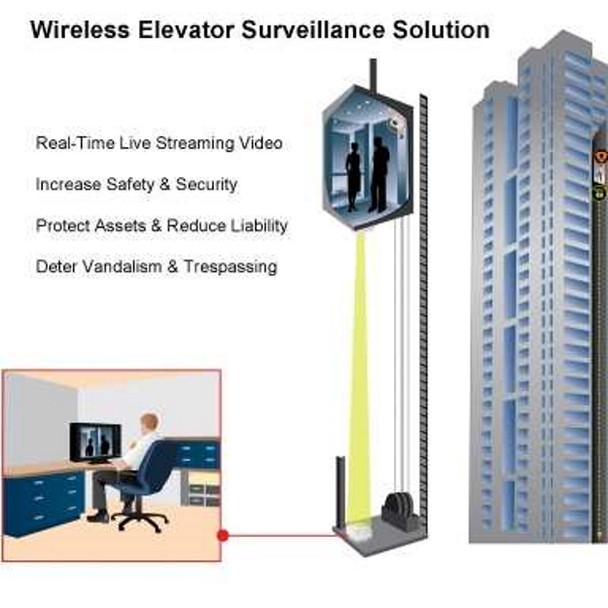

This Wireless Elevator Security Camera System is the most economical solution to deter vandalism & other criminal behavior offering anytime / anywhere remote viewing and monitoring. This system is the best solution for facility and property managers to monitor their assets and minimize liabilities.

Advantage:

• Wireless Digital AHD 1080p elevator video security solution -200 Floors
• Reduce liability by increasing occupants safety and security
• Complies with TSSA, ASME & FCC safety standards
• Economical solution to deter vandalism & criminal behaviour
• Installs in a few hours, minimized elevator down time
• No Connections to the Elevator Mechanics – No re-occurring inspections
• Ready to install kit, No computer or programming software required
• Auto-Select 720p / 1080p video resolution @ 30fps
• AES 128bit encryption for secure High Definition Video
• Economical solution for replacing analog elevator cameras
• Perfect for Elevators in Offices, Schools, Hospitals, Commercial & Residential Buildings

Key Features:

• Operating Frequency:5.185GHz - 5.825GHz OFDM
• Security Format: AES 128 Bit Encryption
• Resolution:Auto-Select 720p / 1080p
• Frame Rate:maximum 30fps
• Video Format:AHDRange & Elevation (Line of Sight):200 Elevator Floors
• Camera Type:User Select 4-IN-1 TVI-CVI-AHD and CVBS
• Camera Lens Type:2.8mm Wide Angle Lens - 110° Viewing Angle
• Camera S/N Ratio:>46dB (Auto Gain Control OFF)
• Camera Minimum Illumination:0.01 Lux @ F1.2
• Video Connector:BNC-Female
• Video Impedance & Level:75 Ohms @ 1 Volt P-P
• Power Supplies Included:2x 12VDC UL-Listed Power Supplies
• Tx & Rx Power Connector:2.1mm Barrel - Input & Output
• Tx & Rx Operating Voltage:12 Volts DC Input
• Tx & Rx Current Consumption:Tx 900mA / Rx 750mA
• Camera Construction:Aluminum Corner Mount Design
• Tx & Rx Construction: IP-67 Rated All-Weather Design
• Antenna Construction:IP-53 Rated All-Weather Design
• Camera Dimensions:7.4 x 5.5 x 1.7 (190mm x 140mm x 44mm)
• Tx & Rx Dimensions:7” x 7” x 4” (178mm x 178mm x 102mm) Each
• Antenna Dimensions:7.8 IN x 5.15 IN / (200mm x 131mm) Each
• Camera Weight:300g (0.6Lbs)
• Weight:14.2lbs / 6.44kg - Shipping
• Tx & Rx Mounting Brackets:Universal Stainless Steel Wall / Pole Mount
• Antenna Mounting Bracket:Universal ABS Plastic - Wall or Pole Mount
• Operating Temperature Range:-40ºF to +170ºF (-40ºC to 77ºC)
• FCC / IC Approved:Yes

Includes:

• Elevator Security Camera,
• Elevator Tx & Rx,
• 2x Antennas,
• Connecting Cable,
• 2x Power Supplies,
• Two Mounting Brackets,
• Owner's Manual & One Year Limited Warranty

Note: Features Embedded Camera Power Output Connector
