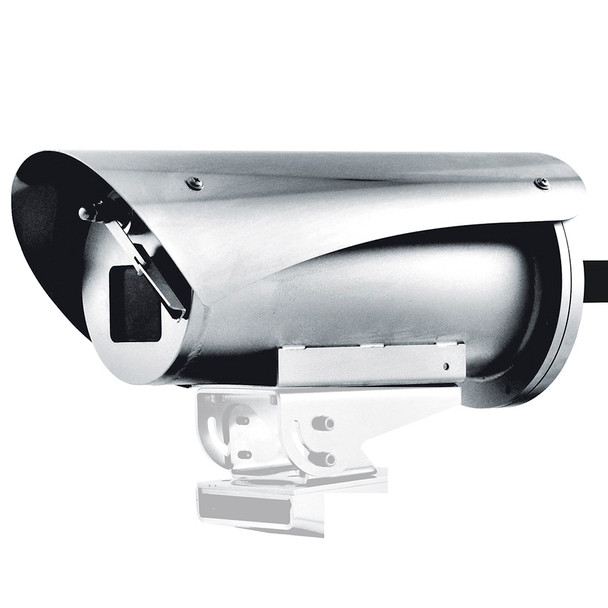

Videotec MVXHD2F0WAZ00A 2MP Explosion-proof Bullet IP Security Camera
The Full HD explosion-protected MAXIMUS MVXHD is perfect for effective video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment, a reality often found in the oil and gas industries or marine and industrial sectors.
The Full HD, 1080p, 60fps, MVXHD camera with 10x or 30x motorised zoom lens for easier setup, offers multiple video streams (H.264/AVC or MJPEG) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.
One striking advantage offered by these cameras is their extremely easy and secure “plug and play″ installation, with multipolar wiring. These cameras arrive ready to use, avoiding the complex electrical connections that are typical of this type of device.
The housing is compact yet functional and is made entirely out of AISI316L stainless steel. Its resistance to corrosion is not only guaranteed, but is also enhanced by way of polishing processes.
Another important feature of the camera is the extended certification temperature range of -60°C to 65°C, along with a sophisticated cold start system, which allows it to operate in harsh environments as standard.
An equally noteworthy point is that the IP66/IP67/IP68 ratings guarantee the complete protection against harsh weather and submersion in up to 5 metres of water for 2 hours. Moreover, the IP69 rating allows the device to be cleaned with high pressure water jets.
These cameras come with wipers and an explosion-proof washer kit is also available, allowing for flawless, maintenance-free cleaning of the front glass.
The MAXIMUS MVX range of cameras meets every installation need, providing maximum performance and excellent value for money.
The MAXIMUS MVX series products are Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, potentially explosive areas, docking procedures).
Key features of Videotec MVXHD2F0WAZ00A
- 2MP
- Image Device: 1/2.8 type Exmor™ CMOS sensor
- Day/Night camera
- 30x optical zoom,
- Lens: f=4.3 mm (wide) ~ 129.0 mm (tele), from F1.6 to F4.7
- Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
- Full HD
- 12-24Vdc/24Vac
- With Wiper
- Cable gland Ex d 3/4" NPT and 4m (13ft) armored cable
- WDR
- T5 -60°C/+65°C
- Protocol ONVIF Profile S
- IP66, IP67, IP68, IP69
- TYPE 6P, TYPE 4X (UL50E)
Compatible Accessories:
- WASEX2T4AT Tank 10l (2.6gal) with integrated manual pump controlled by ATEX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
- WASEX2T4GOR Tank 10l (2.6gal) with integrated manual pump controlled by EAC EX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
- WASEX2T4IN Tank 10l (2.6gal) with integrated manual pump controlled by INMETRO certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
- MBA1S5A Explosion-proof communication box in aluminium, 230Vac
- MBA2S5A Explosion-proof communication box in aluminium, 24Vac
- MBA3S5A Explosion-proof communication box in aluminium, 120Vac
- OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex (operating temperature: from -60°C (-76°F) up to +80°C (+176°F))
- FM1010 EMC filter for Marine certification
- NXWBS1 AISI 316L stainless steel wall bracket with joint
- MHXWFWCA AISI316L stainless steel ball joint
- NXFWBT AISI 316L stainless steel parapet mounting bracket
- NXCOL AISI 316L stainless steel pole adapter module
- NXCW AISI 316L stainless steel corner adapter module
Downloads
Additional Information
Analytics:
|
Motion Detection
|
Built-in Features:
|
Built-in Wiper
|
Camera Style:
|
Bullet
|
Color:
|
Silver
|
Compatible Integration (API):
|
ONVIF
|
Compression:
|
JPEG
MPEG4
MJPEG
H.264
|
Durability:
|
Weatherproof
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
63
2
|
Lens Size:
|
4.3~129mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
Night Vision Range (ft):
|
66
|
Optical Zoom:
|
30x Optical Zoom
|
Protection Code:
|
IP66
IP67
IP68
IP69
|
Resolution:
|
2MP
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Specialized Camera Feature:
|
Explosion-Proof
|
Technology:
|
Network (IP)
|
