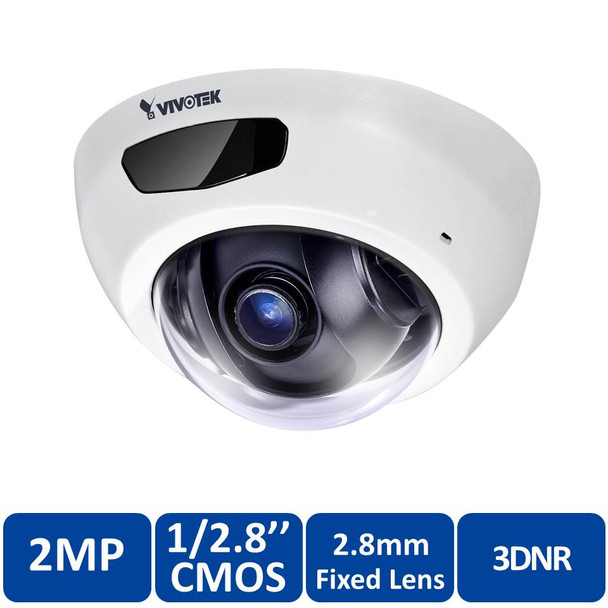

Vivotek FD8166A-N 2MP IR Ultra-Mini Dome IP Security Camera with 2.8mm Fixed Lens

Brand: Vivotek
Part Number: FD8166A-N
Write a Review
Check other similar products:
Discontinued
  • Vivotek FD8166A-N 2MP IR Ultra-Mini Dome IP Security Camera with 2.8mm Fixed Lens
  • Vivotek FD8166A-N 2MP IR Ultra-Mini Dome IP Security Camera with 2.8mm Fixed Lens
  • 2-years-warranty-gold

? Help me pick a security camera

Technical Support Technical Support
  • Field of View (Horizontal) : 113°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Color : White
  • Environmental : Indoor

Description

Vivotek FD8166A-N 2MP IR Ultra-Mini Dome IP Security Camera with 2.8mm Fixed Lens

VIVOTEK's FD8166A-N is an ultra-mini IR fixed dome network camera with a tiny diameter of only 90 mm. Due to its compact, intelligent design and affordable price, the FD8166A-N is an ideal indoor surveillance solution that suits a wide variety of applications such as retail, offices, boutiques and other public areas.

Equipped with a 2 megapixel Full HD sensor enabling viewing resolution of 1920x1080 at 30 fps, the FD8166A-N is capable of capturing high-definition images whether in high contrast or low light environments by deploying WDR Enhanced and SNV technology. When combined with VIVOTEK's Smart Stream II technology, the FD8166A-N can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera. Further, armed with 940nm IR illumination, the FD8166A-N is able to see up to 6 meters in total darkness.

As an all-in-one camera, the FD8166A-N is designed for easy installation and equipped with Power over Ethernet (PoE) functionality, making setup both quick and simple. The FD8166A-N is also completely compatible with VIVOTEK's VAST free 32-channel recording software. With all of these benefits and more, the FD8166A-N is a sure bet to fulfill your surveillance needs.

Key Features:

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Built-in 940nm Invisible IR Illuminators up to 6 M
  • Smart IR Technology to Avoid Overexposure
  • Smart Stream II to Optimize Bandwidth Efficiency
  • WDR Enhanced
  • 3D Noise Reduction
  • Defog
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Compact and Stylish Design
  • Easy Installation

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:
Dome Mini Dome
Color:
White
Compliance:
NDAA Compliant
Environmental:
Indoor
Field of View (Horizontal):
113
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
30fps at 1080P
Night Vision Range (ft):
19
Product Series:
Vivotek C (Competitive) Series
Resolution:
2MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Special Technologies:
Vivotek SNV (Supreme Night Visibility)
Technology:
Network (IP)
