Vivotek IB9360-H 2MP H.265 IR Outdoor Bullet IP Security Camera with 3.6mm Fixed Lens

(No reviews yet) Write a Review
SKU:
IB9360-H
Maximum Purchase:
1000 units
  • Vivotek IB9360-H 2MP H.265 IR Outdoor Bullet IP Security Camera with 3.6mm Fixed Lens
  • Vivotek IB9360-H 2MP H.265 IR Outdoor Bullet IP Security Camera with 3.6mm Fixed Lens
$190.00
$142.50
— You save $47.50
Frequently bought together:

Description

Vivotek IB9360-H 2MP H.265 IR Outdoor Bullet IP Security Camera with 3.6mm Fixed Lens

VIVOTEK's IB9360-H is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9360-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9360-H is encased in robust IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9360-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes

Key Features:

  • H.265 Compression Technology
  • 30 fps @ 1920x1080 (WDR Pro on)
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
View AllClose

Specifications

Specifications

Technical Specifications

System Information
Model
IB9360-H
CPU
Multimedia SoC (System-on-Chip)
Flash
128MB
RAM
256MB
Camera Features
Image Sensor
1/2.9" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
f = 3.6 mm
Aperture
F2.0
Auto-iris
Fixed-iris
Field of View
81° (Horizontal)
44° (Vertical)
95° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.065 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 Lux with IR illumination on
Tilt Range
90°
Rotation Range
180°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
68 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security, Stratocast
Alarm and Event
Alarm Triggers
Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm Events
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for Network 10/100 Mbps PoE connection*1
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6.49 W (IR on)
Max. 3.6 W (IR off)

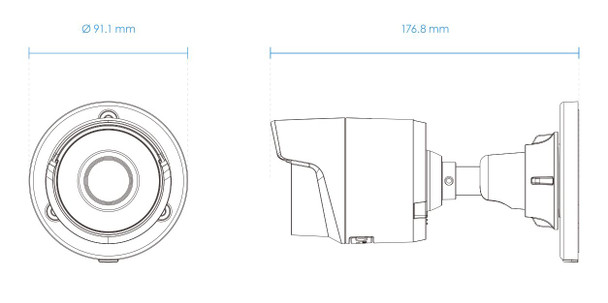

Dimensions
Ø 91.1 x 176.8 mm
Weight
530 g
Casing
IP66, IK10(Housing)
Safety Certifications
CE, FCC Class B, UL, LVD, VCCI, C-Tick
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity
90%
Warranty
24 Months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, alignment sticker, screw pack, cable gland
View AllClose

Additional Information

Manufacturer:
Vivotek
Product Type:
Cameras
Camera Style:
Bullet
Environmental:
Outdoor
Technology:
Network (IP)
Resolution:
2MP
Lens Size:
3.6mm
Lens Type:
Fixed Lens
Compression:
H.265
