Vivotek

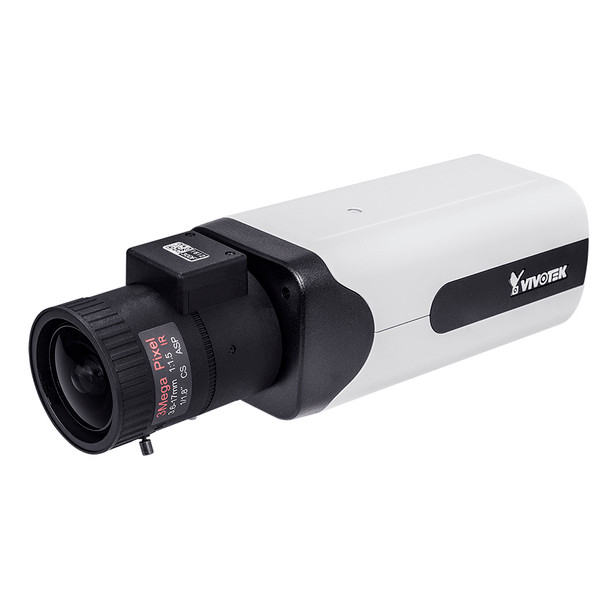

Vivotek IP9165-HP 2MP H.265 Indoor Box IP Security Camera
- SKU:
- IP9165-HP
- UPC:
- 4712123678672
- Maximum Purchase:
- 1000 units
Description
Vivotek IP9165-HP 2MP H.265 Indoor Box IP Security Camera
VIVOTEK's IP9165-HP is a professional H.265 box network camera offering up to 60 fps at 1080p with outstanding image quality that sets it apart from the competition. With the latest VIVOTEK's SNV II, WDR Pro II and Smart Stream III technologies, the camera provides clear imagery in both low light and high contrast environments and greatly reduces bandwidth and storage while retaining the highest quality of video. This unique combination makes the IP9165-HP suitable for a wide range of video surveillance applications, including government and industrial buildings, retail, airports, railway stations, traffic intersections and university campuses.
To enhance the camera's ability to adapt to the challenging environments, precise software controls maintain the iris opening of the IP9165-HP's lens at an optimal level at all times, resulting in superior sharpness as well as depth of field. Finally, the IP9165-HP is also endowed with VIVOTEK's RBF (Remote Back Focus) system, enabling the installer to adjust the focus with greater flexibility and precision.
Key features of Vivotek IP9165-HP
- 2MP
- 60 fps @ 1920x1080
- H.265 Compression Technology
- 3.6 ~ 17 mm, Remote Back Focus, P-iris Lens
- 1/2" Progressive CMOS
- FOV: 28° ~ 100° (Horizontal)
- SNV II (Supreme Night Visibility II) for Low Light Conditions
- WDR Pro II (140dB) to Provide Extreme Visibility in Extremely Bright or Dark Environments
- Remote Back Focus for Easy Focus Adjustments
- Smart Stream III to Optimize Bandwidth Efficiency
- DIS (Digital Image Stabilization) to Control Image Stabilization
- Video Rotation for Corridor View
- Lens Profile for Camera Quality Optimization
- MicroSD/SDHC/SDXC card slot
Supported Lens List
Lens model | focal length (mm) | F # | Iris type | Mount type | IR correction |
AL-239 | 8-80 | 1.6 | DC | C | Yes |
AL-24A | 12-40 | 1.8 | P | CS | Yes |
AL-24B | 3.6-17 | 1.5 | P | CS | Yes |
AL-24D | 25-135 | 1.8 | P | CS | Yes |
Additional Information
Manufacturer: |
Vivotek |
Product Type: |
Cameras |
Warranty: |
3-year Manufacturer Warranty |
Color: |
White |
Environmental: |
Indoor |
Compression: |
MJPEG |
Compression: |
H.264 |
Compression: |
H.265 |
Field of View (Horizontal): |
3 |
Field of View (Horizontal): |
17 |
Lens Size: |
3.6~17mm |
Lens Type: |
Varifocal (Manual Zoom) Lens |
Max. FPS and Resolution: |
60fps at 1080P |
Resolution: |
2MP |
Sensor Size: |
1/2" |
Sensor Type: |
CMOS |
Technology: |
Network (IP) |
Camera Style: |
Box |
Key Features: |
Two-Way Audio |
Key Features: |
ONVIF |
Key Features: |
WDR 140dB |
Key Features: |
Motion Detection |
Key Features: |
SD Card Storage Support |
Vandal Proof: |
No |
SD Card Support: |
Yes |
Weatherproof: |
No |
Datasheet: |
