Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway

Brand: Vivotek
Part Number: IP9172-LPC(Freeway)
Write a Review
Check other similar products:
Discontinued
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 1
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 2
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 3
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 4
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 5
  • Vivotek IP9172-LPC(Freeway) 3MP Night Vision License Plate Capture IP Security Camera for Freeway - 3 Years Warranty

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Field of View (Horizontal) : 12.3°Field of View 35.8°Field of View
  • Max. FPS and Resolution : 55fps at 2048 x 1536 60fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 12~40mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.9" Sensor
  • Protection Code : IP68 IK10
  • Environmental : Outdoor
  • Aperture : F1.8 F2.3

Description

Vivotek IP9172-LPC(Freeway) 3MP IR License Plate Capture IP Security Camera for Freeway

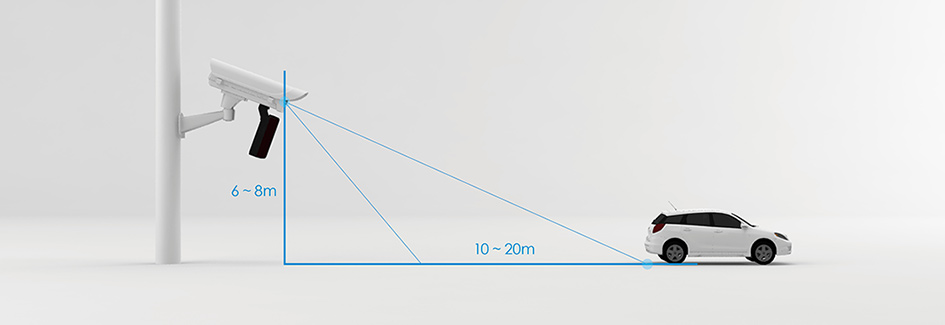

VIVOTEK’s IP9172-LPC (Freeway) is a high-performance, network-based vehicle imaging system designed to provide clear license plate images for reliable recognition in high-speed traffic applications. Adopting a 3-Megapixel global shutter sensor providing high-resolution images to support a wide range of dual lane scenarios and the built-in corresponding pulse mode IR LEDs, the camera can support a maximum car speed of up to 250kmph with lower power consumption.

Employing the unique Auto Exposure Bracketing (AEB) function allows the camera to capture both surrounding and license plate views even at night time. Additionally, the IP9172-LPC is endowed with a 12-40mm focal length remote focus lens. The CaMate IR utilizing CVA Tech provides adjustable beam angles from 20 to 40 degrees for variable distances, enabling the installers to adjust zoom/focus both more precisely and with greater flexibility.


Key Features:

  • Capture Vehicle Speeds of up to 155MPH (250 km/hr)
  • Global Shutter Camera and Pulsed Mode IR Illuminator

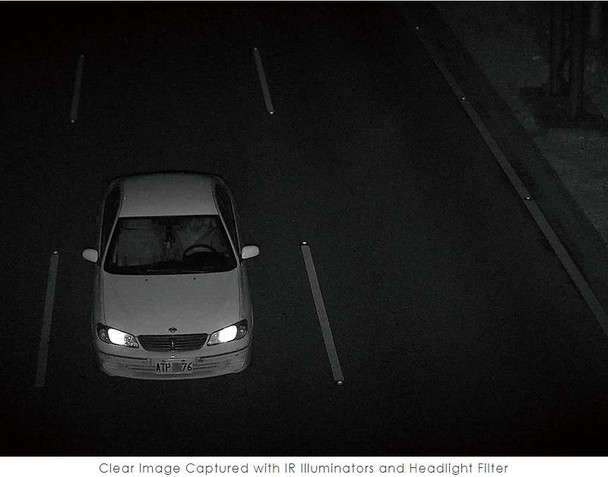

  • Supreme Anti-Glare Capability
  • Automatic Exposure Bracketing Function (AEB)
  • Deal with Reflective and Non-Reflective License Plates by Single Camera
  • Pre-Assembled LPC Kit for Easy Installation
  • Remote Controllable Lens and IR Illuminator for Low Maintenance


Additional Information

Aperture:
F1.8 F2.3
Audio Capability:
Two-Way Audio
Audio Compression:
G.711 G.726
Audio Input:
1x Channel
Audio Output:
1x Channel
Built-in Features:
Built-in Heater Built-in Analytics
Camera Style:
Box
Compliance:
NDAA Compliant
Connection Type:
Wired
Day/Night:
ICR (True Day/Night)
Digital Input:
2
Digital Output:
1
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
12.3 35.8
Iris:
P-iris
Languages:
English Spanish
Lens Size:
12~40mm
Lens Type:
Motorized (Automatic Zoom) Lens
Max Power Consumption:
60 Watts
Max. FPS and Resolution:
55fps at 2048 x 1536 60fps at 1080P
Network Interface:
1x RJ-45 10/100 Mbps
Night Vision Range (ft):
75
Night Vision Type:
Night Vision (IR)
Operating Humidity:
0% to 90%
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Optical Zoom:
3.3x Optical Zoom
Power Supply:
24 VAC 24 VDC
Processor (CPU):
Multimedia SoC (System-on-Chip)
Product Series:
Vivotek Supreme Series
Protection Code:
IP68 IK10
RAM:
1GB
Resolution:
3MP
S/N Ratio:
56 dB
SD Card Support:
SD Card Supported
Sensor Size:
1/1.9"
Sensor Type:
CMOS
Serial Interface:
1x RS485
Special Technologies:
Trend Micro IoT Security
Specialized Camera Feature:
License Plate Recognition (LPR)
Technology:
Network (IP)
Warranty:
2-year Manufacturer Warranty
Wavelength (nm):
850
