Vivotek IT9360-H 2MP IR H.265 Outdoor Turret IP Security Camera with 3.6mm Fixed Lens

Brand: Vivotek
Part Number: IT9360-H
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Vivotek IT9360-H 2MP IR H.265 Outdoor Turret IP Security Camera with 3.6mm Fixed Lens
  • Vivotek IT9360-H 2MP IR H.265 Outdoor Turret IP Security Camera with 3.6mm Fixed Lens
  • Vivotek IT9360-H 2MP IR H.265 Outdoor Turret IP Security Camera with 3.6mm Fixed Lens

Help me pick a security camera

Fast Shipping Fast Shipping
Technical Support Technical Support
  • Compression : H.265,
  • Field of View (Horizontal) : 81°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 3.6mm Lens
  • Protection Code : IP66
  • Environmental : Outdoor
  • Audio Support : Built-in Microphone

Customers Also Viewed

New Product!
Vivotek CU9183-HF 5MP Indoor 1.22mm Pinhole Fisheye Lens, Flat Shape

Vivotek CU9183-HF 5MP Indoor 1.22mm Pinhole Fisheye Lens, Flat Shape

CU9183-HF
$281.00
$196.90
  • Field of View (Horizontal) : 180°Field of View
  • Max. FPS and Resolution : 30fps at 1920 x 1920
  • Lens Type : Fixed Lens
  • Lens Size : 1.2mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Color : Black
  • Environmental : Indoor
  • Sensor Size : 1/2.7"
  • Aperture : F2.0
Network (IP) Network (IP)
4MP 4MP
Camera Lens Camera Lens
Black Black
Discontinued
Vivotek FE9191 12MP H.265 Indoor Fisheye Dome IP Security Camera

Vivotek FE9191 12MP H.265 Indoor Fisheye Dome IP Security Camera

FE9191
  • Compression : H.265,
  • Field of View (Horizontal) : 180°Field of View
  • Max. FPS and Resolution : 20fps at 2992 x 2992
  • Lens Type : Fixed Lens
  • Lens Size : 1.29mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.7" Sensor
  • Color : White
  • Environmental : Indoor
  • Sensor Size : 1/1.7"
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
12MP (4K) 12MP (4K)
White White

Description

Vivotek IT9360-H 2MP H.265 IR Outdoor Turret IP Security Camera with 3.6mm Fixed Lens

VIVOTEK's IT9360-H is a H.265 outdoor turret network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IT9360-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IT9360-H is encased in robust IP66.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IT9360-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes

Key Features

  • 2MP
  • 3.6mm Fixed Lens
  • H.265 Compression Technology
  • 30fps @ 1920x1080 (WDR Pro on)
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Trend Micro IoT Security
  • Built-in Microphone

Specifications

Technical Specifications

System Information
Model
IT9360-H (2.8mm)
IT9360-H (3.6mm)
CPU
Multimedia SoC (System-on-Chip)
Flash
128MB
RAM
256MB
Camera Features
Image Sensor
1/2.9" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
IT9360-H(2.8mm): f = 2.8 mm
IT9360-H(3.6mm): f = 3.6 mm
Aperture
F2.0
Auto-iris
Fixed-iris
Field of View
IT9360-H(2.8mm):
109° (Horizontal)
59° (Vertical)
129° (Diagonal)
IT9360-H(3.6mm):
81° (Horizontal)
44° (Vertical)
95° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.065 Lux @ F2.0 (Color)
<0.005 Lux @ F2.0 (B/W)
0 Lux with IR illumination on
Pan Range
360°
Tilt Range
70°
Rotation Range
360°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
IT9360-H(2.8mm): 68 dB
IT9360-H(3.6mm): 68 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings
Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security, Stratocast, VIVOCloud
Alarm and Event
Alarm Triggers
Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm Events
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection*1
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6 W (IR on)
Max. 3.31 W (IR off)

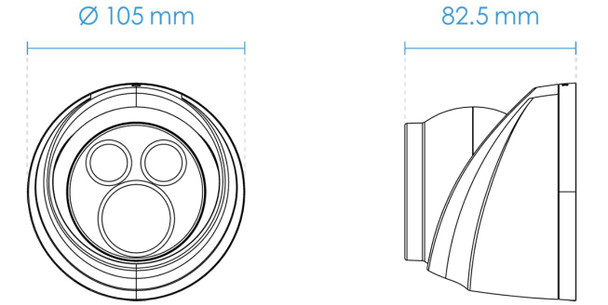

Dimensions
Ø 105 x 82.5 mm
Weight
475 g
Casing
IP66, IK10(Metal Housing)
Safety Certifications
CE, FCC Class B, UL, LVD, VCCI, C-Tick
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity
90%
Warranty
24 Months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, alignment sticker, screw pack, cable gland
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Audio Support:
Built-in Microphone
Camera Style:
Turret
Compression:
H.265
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
81
Lens Size:
3.6mm
Lens Type:
Fixed Lens
NDAA Compliance:
NDAA Compliant
Night Vision Range (ft):
98
Protection Code:
IP66
Resolution:
2MP
SD Card Support:
SD Card Supported
Special Technologies:
Vivotek SNV (Supreme Night Visibility)
Technology:
Network (IP)
