Description

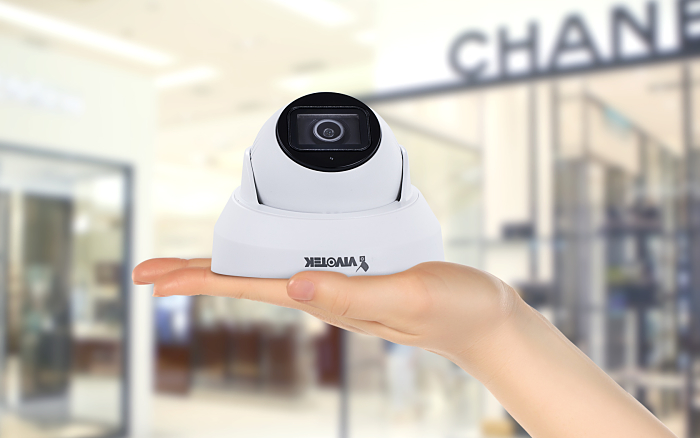

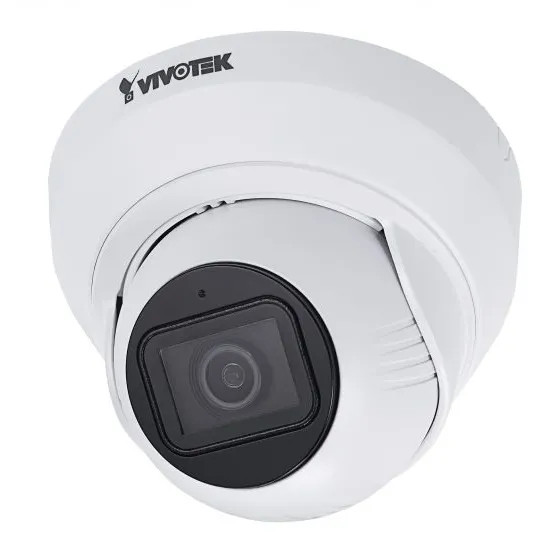

Vivotek IT9389-HF2-v2 5MP H.265 IR Outdoor Turret IP Security Camera
VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.
The IT9389-H-v2 offers a fixed-focal lens of 2.8mm and is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H-v2 is encased in IP66 and IK08 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H-v2 is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
* Depending on scenes
Key Features:
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Built-in IR illuminators, Effective up to 30 meters
- Smart IR Technology to Avoid Overexposure
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK08-rated Housing
- 2.8mm Fixed Lens
Downloads
Compatible products
Additional Information
|
Aperture:
|
F2.0
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
BIS
CB
UL Listed
CE
FCC
VCCI
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
225.1
|
|
Digital Zoom:
|
48
|
|
Dimensions:
|
108 x 79 mm (4.25 x 3.11)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
103
|
|
IR LED Quantity:
|
2
|
|
Identify (ft):
|
22.5
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
7.4 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1920
|
|
Minimum Illumination (B/W):
|
0.01 Lux
|
|
Minimum Illumination (Color):
|
0.06 Lux
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
89.3
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek V (Versatlile) Series
|
|
Protection Code:
|
IP66
IK08
|
|
RAM:
|
1GB
|
|
Recognize (ft):
|
45
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/32000s
|
|
Special Technologies:
|
Vivotek Smart Stream III
Vivotek SNV (Supreme Night Visibility)
Trend Micro IoT Security
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
