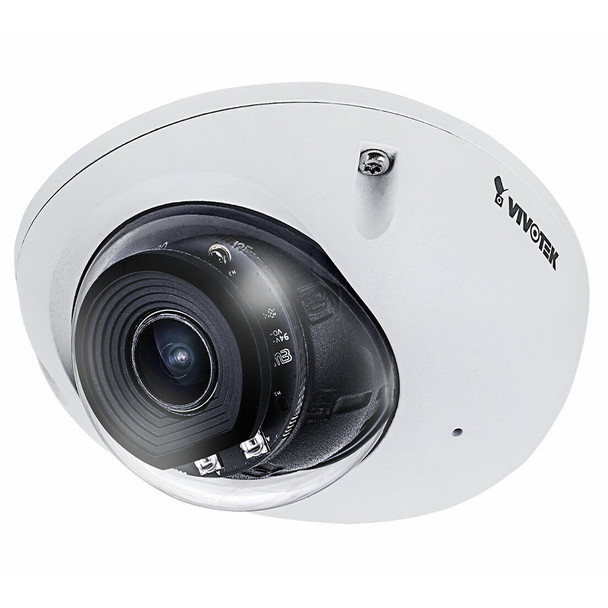

Vivotek MD9560-HF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with 3.6mm Fixed Lens

Brand:
Part Number: MD9560-HF3
Write a Review
  • Vivotek MD9560-HF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with 3.6mm Fixed Lens
  • Vivotek MD9560-HF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with 3.6mm Fixed Lens
  • Vivotek MD9560-HF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with 3.6mm Fixed Lens
$546.24
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265,
  • Field of View (Horizontal) : 89°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 3.6mm Lens
  • Environmental : Outdoor

Description

Vivotek MD9560-HF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera

Key Features

  • 2MP
  • 3.6mm Fixed Lens, FOV: 89° (Horizontal)
  • Built-in microphone
  • H.265 Compression Technology
  • 30 fps @ 1920x1080
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Fast AE for Quick Adaptation to Light Changes
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Weather-proof IP66 and IP67, Vandal-proof IK10 Housing
  • Built-in IR Illuminators, effective up to 20 Meters
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • EN50155 2017 OT1 Compliance for Professional Mobile Surveillance
  • Video Rotation for Corridor Scenario
View AllClose

Specifications

Specifications

Technical Specifications

System Information
Model
MD9560-H(2.8mm)
MD9560-H(3.6mm)
CPU
Multimedia SoC (System-on-Chip)
Flash
128MB
RAM
256MB
Camera Features
Image Sensor
1/2.9" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
MD9560-H(2.8mm): f = 2.8 mm
MD9560-H(3.6mm): f = 3.6 mm
Aperture
MD9560-H(2.8mm): F1.8
MD9560-H(3.6mm): F2.0
Auto-iris
Fixed-iris
Field of View
MD9560-H(2.8mm):
108° (Horizontal)
60° (Vertical)
124° (Diagonal)
MD9560-H(3.6mm):
89° (Horizontal)
47° (Vertical)
105° (Diagonal)
MD9560-H(6mm):
52° (Horizontal)
29° (Vertical)
60° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
Minimum Illumination
MD9560-H(2.8mm):
0.13 Lux @ F1.8 (Color)
0.01 Lux @ F1.8 (B/W)
0 Lux with IR illumination on
MD9560-H(3.6mm):
0.16 Lux @ F2.0 (Color)
0.01 Lux @ F2.0 (B/W)
0 Lux with IR illumination on
Pan Range
±30°
Tilt Range
90°
Rotation Range
±180°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Video Compression
H.265, H264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
MD9560-H(2.8mm): 60 dB
MD9560-H(3.6mm:): 52 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings
Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
External line input
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
ONVIF
Supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security, Stratocast
Alarm and Event
Alarm Triggers
Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm Events
Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
M12 for Network/PoE connection*1
Audio input*1
Digital input*1 (30V, 1A)
Digital output*1 (12V, 50mA)
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 5.5 W (IR on)
Max. 3.3 W (IR off)
Dimensions
98 x 54 x 110.8 mm
Weight
400 g
Casing
IP66, IP67, IK10, NEMA 4X
Safety Certifications
CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118
Operating Temperature
Starting Temperature:
-25°C ~ 55°C (-13°F~ 131°F)
Working Temperature:
-25°C ~ 60°C (-13°F~ 140°F) (IR off)
-25°C ~ 55°C (-13°F~ 131°F) (IR on)
Maximum (intermittent): 70 °C (158 °F)
Humidity
98%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, screwdriver, alignment sticker, desiccant bag
View AllClose

Additional Information

Camera Style:
Dome
Compression:
H.265
Environmental:
Outdoor
Field of View (Horizontal):
89
Lens Size:
3.6mm
Lens Type:
Fixed Lens
NDAA Compliant:
Night Vision Range (ft):
65ft
Resolution:
2MP
Technology:
Network (IP)
