Description

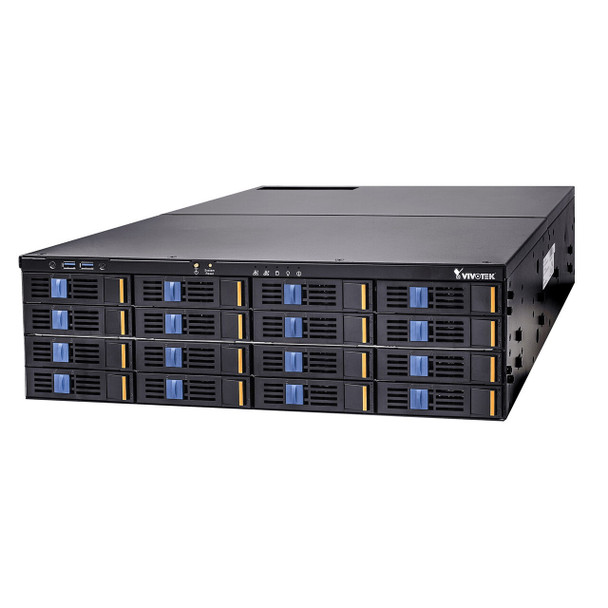

Vivotek NR9782 128 Channel H.265 Network Video Recorder
VIVOTEK’s NR9782 is a full-featured high-performance H.265 NVR. Equipped with a 3U 128-CH 16 Bay Rackmount network appliance, standard RAID capability and H.265 video codec, the total storage capacity of the NVR also endows the NR9782 with scalability and flexibility, making it perfect for large-scale transport or industrial applications as well as public spaces such as campuses.
The NR9782’s 16 hard-drive bay design provides for a storage capacity of up to 160TBs, offering greater than 30% ~ 50% more recording capacity than systems employing H.264 compression. This advance affords users larger storage space for longer durations of video recording. The RAID 0/1/5/6/10 configuration provides further data security in the rare event of a hard drive failure. Further, equipping the NR9782 with a DOM system has resulted in reliability and stability beyond the reach of other NVRs. Meanwhile, the NR9782 supports VIVOTEK’s fisheye network camera “Fisheye Dewarp” function, which provides multiple de-warping modes in live view and playback, ensuring the correct angle of video view and detailed information for flexible usage. This ingenious NVR is also equipped to carry out remote management with a full range of the server/client structures and thus constitutes a robust system for diverse applications.

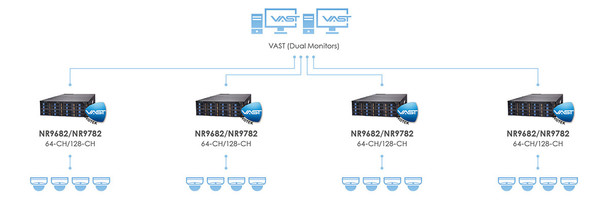

Moreover, the NR9782 features well-built ONVIF compliance and scalable configuration, with VAST CMS empowering users to set up and manage advanced IP surveillance systems with ease. The NR9782 also supports both remote and mobile access via iViewer app, for both iOS and Android handheld devices. The NR9782 represents a great advance in the field, providing users an open, intelligent and seamless NVR to meet market demands.
Key Features:
- H.265/H.264 Compression Technology
- 128-CH Recording, 64 Display
- Support HDMI, Display Port & DVI Simultaneous Output
- 16 Hot-Swappable HDD Bays
- Support RAID 0/1/5/6/10 Storage
- Redundant Power
- VIVOTEK VAST Inside (LiveClient/Playback)
- Dual Lan Giga Network Ports
- ONVIF Open Platform (Project Support Function)
- VIVOTEK Camera Configuration and VAST CMS Integrated
- 16 HDD Slots, up to 10TB each
Downloads
Additional Information
|
Audio Compression:
|
G.711
G.726
AMR
AAC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
CE
LVD
FCC
VCCI
C-Tick
|
|
Channel Capacity:
|
128 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
MJPEG
MPEG4
H.264 SVC
H.264 AVC
|
|
Connection Type:
|
Wired
|
|
Hard Drive Ports:
|
16 SATA Ports
|
|
Languages:
|
English
|
|
Max Power Consumption:
|
500 Watts
|
|
Max. Recording Resolution:
|
2MP
|
|
Max. Storage Capacity:
|
160 TB
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Power Supply:
|
100 to 220 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Processor (CPU):
|
Intel i7
|
|
Product Series:
|
Vivotek Supreme Series
|
|
RAID:
|
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
|
|
RAM:
|
8GB
|
|
Rack Unit (U):
|
3U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Video Output:
|
1x DVI
1x HDMI
1x DisplayPort
|
|
Warranty:
|
3-year Manufacturer Warranty
|
