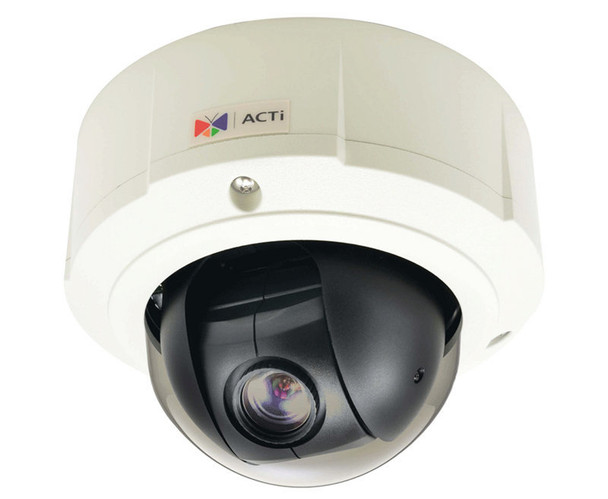

ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera
The ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera features a 10x zoom lens (f4.9 to 49mm) and superior WDR (Wide Dynamic Range) functionality. This 3 megapixel camera uses 1.3 inch progressive scan CMOS image sensor and captures images at a resolution of 1920 x 1080, at 30 frames per second. It bring you an experience like never before, and raises the bar for video excellence in the industry. With superb performance during night time or under low light conditions, this camera can expand your capability to identify objects by person’s attire, hair color, or vehicle’s color, even in challenging illumination conditions.

The ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera has swift panning, zoom, and auto-focus, providing outstanding video evidence with clear details without losing focus, thus making it ideal for large area surveillance. This camera is vandal resistant (IK10 rated) and weatherproof (IP66 rated), and comes with terminal blocks that can be used when an external power adapter and a digital input or output device is required to be connected. It completely revolutionizes the industry of video surveillance with its wide variety of specification and superb performance. It is a strong contender in the IP surveillance market with a primary goal to provide the best experience, by delivering quality, specification, and price at the same time. The ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera is a comprehensive PTZ security camera for high performance requirements.

Key Features of the ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera

  • IP66 Rated: protection against ingress of dust and powerful jets of water
  • Automatic Gain Control: maintains constant brightness level
  • Video Motion Detection: triggers alarm when activity is detected
  • 2Way Audio: communication between command center and area under surveillance
  • Pan/tilt/rotation Mechanism: allows you to select required field-of-view for improved image capture
  • Auto White Balance: adjusts the red and blue signals to get the most natural colors
acti b97 3mp outdoor 10x ptz dome ip security camera
acti b97 3mp outdoor 10x ptz dome ip security camera>

Product Type:
3-year Manufacturer Warranty

Security Camera Features

Network (IP)
Camera Style:
  • Dome
  • PTZ
Key Features:
  • Two-Way Audio
Optical Zoom:
10x Optical Zoom
Technical Specs

ACTi B97 3MP Outdoor 10x PTZ Dome IP Security Camera Specifications

  • Device Type:Outdoor Mini PTZ Camera
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3''
  • Day / Night: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K)
  • Color to B/W Switch: ISP based switch, configurable
  • Mechanical IR Cut Filter: Yes
  • IR Sensitivity Range: 700 - 1100nm
  • Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
  • Focal Length: Zoom, f4.9- 49 mm / F1.8 - 3.0
  • Zoom Ratio: 10x optical
  • Zoom Speed: Max 2 secs
  • Iris: DC iris
  • Focus: Auto focus
  • Horizontal Viewing Angle: 49.56 - 5.62°
  • Manual Panning Speed: 5° - 90°/s
  • Manual Tilting Speed: 5° - 90°/s
  • Preset Panning Speed: 5° - 90°/s
  • Preset Tilting Speed: 5° - 90°/s
  • Panning Range: -175° - 175°(without auto-flip)
  • Tilting Range: 0° - 180° (with E-flip)
  • Control: Remote manual control; 256 preset points; 10 preset tours; Auto scan
  • Preset Panning Accuracy: 1.5°
  • Preset Tilting Accuracy: 1.5°
  • Absolute Positon: Yes
  • Protocol: ACTi URL command, Sony VISCA, Pelco D, Pelco P
  • Video Compression: H.264, MJPEG
  • Max. Frame Rate vs. Resolution: 15 fpsat 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Multi-Streaming: Simultaneous dual streams based on two configurations
  • Bit Rate: 28 Kbps - 6 Mbps (per stream)
  • Bit Rate Mode: Constant, Variable
  • Image Enhancement: Superior WDR (107 dB);; White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; Digital Noise Reduction; Flickerless;
  • Text Overlay: User defined text on video
  • Image Orientation: Image flip and mirror
  • Audio: 2-way
  • Audio Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
  • Ethernet Port: 1, Ethernet (10/100Base-T), RJ-45 connector
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Digital Input: 1, Terminal block
  • Digital Output: 1, Terminal block
  • Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 12.95 W DC 12V / 10.36 W (adapter not included)
  • Weight: 1263 g ( 2.78 lb)
  • Dimensions (Φ x H): 153 mm x 116 mm (6'' x 4.6'')
  • Environmental Casing: Weatherproof (IP66 rated); Vandal proof (IK10 rated), Transparent dome cover
  • Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
  • Starting Temperature: -20°C ~ 50°C (-4°F ~ 122 °F) within 30min
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122 °F)
  • Operating Humidity: 10% ~ 85% RH
  • Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, IK10, NEMA 4X
  • Unified Solution: Fully compatible with ACTi software
  • ISV Integration: Software Development Kit (SDK) available; ONVIF Compliant
  • Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality)
