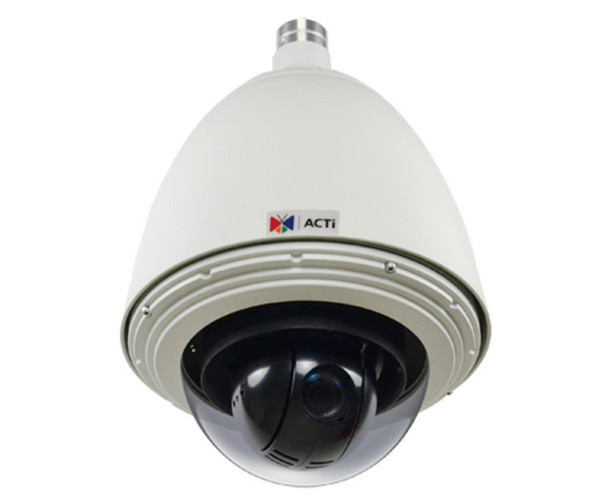

ACTi KCM-8211 2MP Outdoor PTZ Day/Night WDR 18x Zoom IP Security Camera

KCM-8211
Save
34%
ACTi KCM-8211 2MP Outdoor PTZ Day/Night WDR 18x Zoom IP Security Camera
Hover on image to enlarge
$2,761.00
$1,822.00
You save: $939.00 (34%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera day night ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera outdoor
ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera 18x optical zoom ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera 15 fps
ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera
The ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera is one of the latest outdoor PTZ cameras brought to you by ACTi. This security system has great features such as, 18X optical zoom, two-way audio, Advanced WDR and much more. Progressive scan CMOS ensures that you get clear and crisp images at 1920 x 1080 resolution resolution at 15 fps. You are also sure to see images day or night since the mechanical IR cut filter with day and night function along with the advanced WDR allows you to capture video in the dark as well.
This security system has video motion detection that allows you to capture any instances of movement and sends it to the command center. Don’t worry about the videos taking up a lot of storage space. The system uses advanced compression that makes videos lighter and you get to save on bandwidth and storage. ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera has all of the features you need with the reliable quality you deserve.
Key Features of ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera
  • Progressive scan CMOS: delivers clear and crisp images at 1920 x 1080 resolution resolution at 15 fps
  • Day and night function with mechanical IR cut filter: allows you to see images at a minimum of 0 lux up to 15 meters
  • Advanced WDR: captures clear, crisp and detailed images even in conditions of bad lighting
  • Video Motion Detection: alerts the command center of all instances of captured intruder activity
  • Selectable H.264, MPEG-4 SP, MJPEG compressions with: ensures videos are light in size to save on bandwidth
  • Vandal proof IK10 rated and weatherproof IP66 rated casing: makes the security system weather-proof and vandal-proof
acti kcm-8211 2 mp outdoor ptz day/night wdr 18x zoom ip camera
acti kcm-8211 2 mp outdoor ptz day/night wdr 18x zoom ip camera>
Features

Manufacturer:
ACTi
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Environmental:
Outdoor
Discontinued:
no

Security Camera Features

Resolution:
2MP
Technology:
Network (IP)
Camera Style:
  • PTZ
Optical Zoom:
18x Optical Zoom
Technical Specs

ACTi KCM-8211 2 MP Outdoor PTZ Day/Night WDR 18x Zoom IP Camera Specifications
  • Device Type: Outdoor PTZ Camera
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/2.8'' (5.42 x 3.41 mm)
  • Day / Night: Yes
  • Superior Low Light Sensitivity: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
  • Color to B/W switch: ISP based switch, configurable
  • Mechanical IR Cut Filter: Yes
  • IR Sensitivity Range: 700 - 1100 mm
  • Electronic Shutter: 1/13 ~ 1/2,000 sec (50Hz); 1/15 ~ 1/2,000 sec (60Hz) (manual mode); 1/13 ~ 1/10,000 sec (50Hz); 1/15 ~ 1/10,000 sec (60Hz) (auto model)
  • Focal Length: Zoom, f4.7 - 84.6 mm / F1.6 - 2.8
  • Zoom Ratio: 18x optical; 16x digital
  • Zoom Speed: 2 sec (1x ~18x)
  • Iris: DC Iris
  • Focus: Auto Focus
  • Horizontal Viewing Angle: 48.9° ~ 3.6°
  • Manual Panning Speed: 0.5° ~ 90°/s
  • Manual Tilting Speed: 0.5° ~ 90°/s
  • Preset Panning Speed: 0.5° ~ 450°/s
  • Preset Tilting Speed: 0.5° ~ 450°/s
  • Panning Range: 350° (360° pan via Auto-flip)
  • Tilting Range: 0°~180°
  • Control: Remote manual control; 64 preset points; 10 preset tours
  • Preset Panning Accuracy: 0.265°
  • Preset Tilting Accuracy: 0.265°
  • Absolute Positon: Yes
  • Protocol: ACTi URL command, Sony Visca, Pelco D, Pelco P
  • Compression: H.264, MPEG-4 SP, MJPEG
  • Maximum Frame Rate vs. Resolution (H.264, MJPEG): 15 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
  • Maximum Frame Rate vs. Resolution (MPEG-4 SP): 11 fps at 1920 x 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
  • Multi-Streaming: Simultaneous dual steams based on two configurations
  • Bit Rate: 28 Kbps - 6 Mbps (per stream)
  • Bit Rate Mode: Constant, Variable
  • Image Enhancement: Advanced WDR (80 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D Digital Noise Reduction; Flickerless; Defogging
  • Text Overlay: User defined text on video
  • Image Orientation: Image flip and mirror
  • Audio 2-way
  • Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Audio-In: 3.5mm Phone Jack
  • Audio-Out: 3.5mm Phone Jack
  • Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Ethernet Port: 1, Ethernet (10/100Base-T), RJ-45 connector
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input
  • Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
  • Digital Input: 2, cable without connector
  • Digital Output: 2, cable without connector
  • Power Source / Consumption: High PoE (IEEE802.3at) / 33.6W (with heater and fan on), DC 12V / 30W (with heater and fan on)
  • Weight: 6700g (14.8 lb)
  • Dimensions (Φ x H): 275 mm x 454 mm (10.8" x 17.9")
  • Bundled Accessories: Power Adapter
  • Environmental Casing: Weatherproof (IP66 rated); Vandal proof (IK10 rated)
  • Mount Type: Pendant, Wall, Corner, Pole
  • Starting Temperature: -30°C - 45°C (-22°F - 113°F)
  • Operating Temperature: -40°C - 45°C (-40°F - 113°F)
  • Operating Humidity: 10% ~ 85% RH
  • Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
  • Adapter: CE, FCC, UL, PSE, Efficiency level V
  • Unified Solution: Fully compatible with ACTi software
  • ISV Integration: Software Development Kit (SDK) available; ONVIF Compliant
  • Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer
Datasheets

KCM-8211 (KCM-8211_datasheet_20160909-A1.pdf, 1,365 Kb) [Download]
