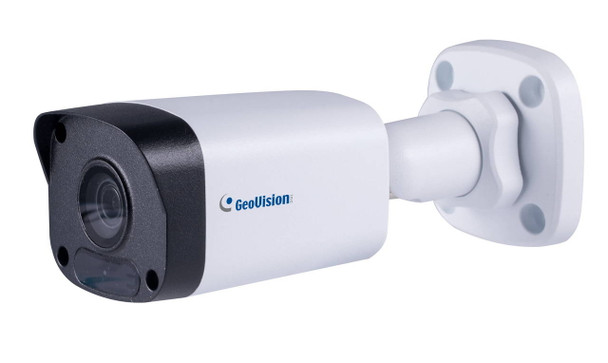

Geovision GV-ABL4701 4MP IR H.265 Outdoor Bullet IP Security Camera 84-ABL470W-0010
Discontinued
$141.93
✅ Help me pick a security camera
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 78°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Fixed Lens
- Lens Size : 4mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP66
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Related Products

Geovision GV-RK1352 Card Reader with Keypad - 520-RK1352-000
GV-RK1352
$123.00
- Protection Code : IP66
- Color : Black
- Environmental : Outdoor
- Access Control Type : Card Readers

Geovision GV-R1352 Outdoor Wiegand Card Reader - 84-R135200-0200
GV-R1352 card reader
$73.55
- Protection Code : IP66
- Environmental : Outdoor
- Access Control Type : Card Readers

Geovision GV-IB25 Infrared Button - 81-IRBIB25-0010
GV-IB25
$69.33
- Color : Silver
- Environmental : Outdoor
- Access Control Type : Button

Geovision GV-TM0100 CIF Thermal Bullet IP Security Camera - 40mm Fixed Lens, 25fps at 352x288
GV-TM0100
$3,535.01
- Compression : H.264, MJPEG,
- Field of View (Horizontal) : 13°Field of View
- Lens Type : Fixed Lens
- Lens Size : 40mm Lens
- Color : White
- Environmental : Outdoor

Geovision GV-LPR1200 1MP License Plate Recognition (LPR) Bullet IP Security Camera - Max. 124.27mph
GV-LPR1200
$1,467.00
- Compression : MJPEG, H.264,
- Max. FPS and Resolution : 30fps at 720P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 4.7~47mm Lens
- Sensor Type : CCD
- Color : White
- Environmental : Outdoor
Customers Also Viewed
Discontinued

Geovision GV-ABL4712 4MP IR H.265 Outdoor Bullet IP Security Camera 84-ABL471W-0010
GV-ABL4712
$290.11
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 91°Field of View 27°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"

Geovision GV-Mount300-1 90D Convex Corner Adapter - 81-MT30010-0001
GV-Mount300-1
$186.15
- Mount Type : Corner Adapter

Geovision GV-EBL4702-2F 4MP H.265 IR Outdoor Bullet IP Security Camera - 84-EBL4702-2010
GV-EBL4702-2F
$231.51
- Compression : H.265,
- Field of View (Horizontal) : 72°Field of View
- Lens Type : Fixed Lens
- Lens Size : 3.8mm Lens
- Environmental : Outdoor
Discontinued

Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
GV-EFD4700-0F
$183.15
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 96°Field of View
- Max. FPS and Resolution : 20fps at 2592 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.7"
- Aperture : F2.0
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-LPC2011 2MP License Plate Recognition Bullet IP Security Camera 84-LPC2011-0010 - Maximum Speed 37mph
GV-LPC2011
$461.53
- Compression : MJPEG, H.264,
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 3~9mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.8"
Discontinued

Geovision GV-ABL8712 8MP H.265 IR Outdoor Bullet IP Security Camera 84-ABL871W-0010
GV-ABL8712
$395.50
- Compression : MJPEG, H.264, H.265,
- Max. FPS and Resolution : 30fps at 2944 x 1656
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2"
Discontinued

Geovision GV-TDR4700 4MP IR H.265 Outdoor Dome IP Security Camera with 2.8mm Fixed Lens
GV-TDR4700
$153.40
- Compression : H.265,
- Field of View (Horizontal) : 100°Field of View
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Environmental : Outdoor
Discontinued

Geovision GV-ABL2701 2MP H.265 IR Outdoor Bullet IP Security Camera 84-ABL270W-G010
GV-ABL2701
$75.99
- Compression : H.264 Plus, H.265, H.264,
- Field of View (Horizontal) : 105°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.7"
Discontinued

Geovision GV-ADR4701 4MP IR H.265 Outdoor Mini Dome IP Security Camera 84-ADR470W-0010
GV-ADR4701
$141.35
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 101°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IK10 IP66
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"

Geovision GV-Mount211P Wall Mount Bracket Kit - 81-MT211P0-0001
GV-Mount211P
$42.49
- Mount Type : Wall Mount

Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010
GV-AVD2700
$165.57
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 30°Field of View 108°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.9" Sensor
- Protection Code : IK10 IP67
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.9"
Discontinued

Geovision GV-EFD2700-0F 2MP H.265 IR Indoor Mini Dome IP Security Camera 84-EFD2700-0010
GV-EFD2700-0F
$117.52
- Compression : H.264 Plus, H.265, H.264,
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Indoor
- Sensor Size : 1/2.7"
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-EBD4700 4MP H.265 Low Lux IR Eyeball Dome IP Security Camera
GV-EBD4700
$145.05
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 100°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

Geovision GV-EBL2702-2F 2MP H.265 IR Outdoor Bullet IP Security Camera 84-EBL2702-2010
GV-EBL2702-2F
$152.85
- Compression : H.264 Plus, H.265, H.264,
- Field of View (Horizontal) : 73°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Lens Size : 3.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

4 Megapixel InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP7342W-28M
CMIP7342W-28M
$153.23
- Compression : MJPEG, H.264, H.264 Plus, H.265, H.265 Plus,
- Field of View (Horizontal) : 103°Field of View
- Max. FPS and Resolution : 30fps at 2688 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

Geovision GV-FER5701 5MP IR H.265 Outdoor Fisheye IP Security Camera
GV-FER5701
$396.61
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 180°Field of View
- Max. FPS and Resolution : 30fps at 2592 x 1944
- Lens Type : Fixed Lens
- Lens Size : 1.05mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.5" Sensor
- Protection Code : IP67 IK10 Plus
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.5"
- Aperture : F2.8
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-BL4713 4MP IR H.265 Outdoor Bullet IP Security Camera
GV-BL4713
$527.47
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 38°Field of View 102°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Description
Geovision GV-ABL4701 4MP IR H.265 Outdoor Bullet IP Security Camera
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP66 standards and can be powered through PoE.
Key features:
- 4MP
- 4mm Fixed Lens
- 78 degree FOV
- 1/3" progressive scan low lux CMOS sensor
- Min. illumination at 0.02 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Intelligent IR
- IR distance up to 30 m (98.4ft)
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP66)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile S) conformant
Compatible Products:
- GV-Mount502 Wall Mount Bracket
- GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter
- It is required to apply patch files to all the supported software.
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
SKU: 84-ABL470W-0010
Downloads
Datasheet
geovision-Datasheet_IPCamABL4701-A1.pdf
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at [email protected] with any design questions.
Additional Information
Alternative SKUs: |
125-ABL4701-000
84-ABL470W-0010
VC-CAG-ABL4701
|
Camera Style: |
Bullet
|
Color: |
White
|
Compression: |
MJPEG
H.264
H.265
|
Durability: |
Weatherproof
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
78
|
Key Features: |
Wide Dynamic Range (WDR)
ONVIF
Night Vision (IR)
|
Lens Size: |
4mm
|
Lens Type: |
Fixed Lens
|
Max. FPS and Resolution: |
30fps at 2048 x 1520
|
Night Vision Range (ft): |
98
|
Protection Code: |
IP66
|
Resolution: |
4MP
|
Sensor Size: |
1/3"
|
Sensor Type: |
CMOS
|
Technology: |
Network (IP)
|
Vandal Proof: |
|
Warranty: |
1-year Manufacturer Warranty
|
Related Products

Geovision GV-RK1352 Card Reader with Keypad - 520-RK1352-000
GV-RK1352
$123.00
- Protection Code : IP66
- Color : Black
- Environmental : Outdoor
- Access Control Type : Card Readers

Geovision GV-R1352 Outdoor Wiegand Card Reader - 84-R135200-0200
GV-R1352 card reader
$73.55
- Protection Code : IP66
- Environmental : Outdoor
- Access Control Type : Card Readers

Geovision GV-IB25 Infrared Button - 81-IRBIB25-0010
GV-IB25
$69.33
- Color : Silver
- Environmental : Outdoor
- Access Control Type : Button

Geovision GV-TM0100 CIF Thermal Bullet IP Security Camera - 40mm Fixed Lens, 25fps at 352x288
GV-TM0100
$3,535.01
- Compression : H.264, MJPEG,
- Field of View (Horizontal) : 13°Field of View
- Lens Type : Fixed Lens
- Lens Size : 40mm Lens
- Color : White
- Environmental : Outdoor

Geovision GV-LPR1200 1MP License Plate Recognition (LPR) Bullet IP Security Camera - Max. 124.27mph
GV-LPR1200
$1,467.00
- Compression : MJPEG, H.264,
- Max. FPS and Resolution : 30fps at 720P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 4.7~47mm Lens
- Sensor Type : CCD
- Color : White
- Environmental : Outdoor
Customers Also Viewed
Discontinued

Geovision GV-ABL4712 4MP IR H.265 Outdoor Bullet IP Security Camera 84-ABL471W-0010
GV-ABL4712
$290.11
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 91°Field of View 27°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"

Geovision GV-Mount300-1 90D Convex Corner Adapter - 81-MT30010-0001
GV-Mount300-1
$186.15
- Mount Type : Corner Adapter

Geovision GV-EBL4702-2F 4MP H.265 IR Outdoor Bullet IP Security Camera - 84-EBL4702-2010
GV-EBL4702-2F
$231.51
- Compression : H.265,
- Field of View (Horizontal) : 72°Field of View
- Lens Type : Fixed Lens
- Lens Size : 3.8mm Lens
- Environmental : Outdoor
Discontinued

Geovision GV-EFD4700-0F 4MP IR H.265 Indoor Mini Dome IP Security Camera 84-EFD4700-0010
GV-EFD4700-0F
$183.15
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 96°Field of View
- Max. FPS and Resolution : 20fps at 2592 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.7"
- Aperture : F2.0
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-LPC2011 2MP License Plate Recognition Bullet IP Security Camera 84-LPC2011-0010 - Maximum Speed 37mph
GV-LPC2011
$461.53
- Compression : MJPEG, H.264,
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 3~9mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.8"
Discontinued

Geovision GV-ABL8712 8MP H.265 IR Outdoor Bullet IP Security Camera 84-ABL871W-0010
GV-ABL8712
$395.50
- Compression : MJPEG, H.264, H.265,
- Max. FPS and Resolution : 30fps at 2944 x 1656
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2"
Discontinued

Geovision GV-TDR4700 4MP IR H.265 Outdoor Dome IP Security Camera with 2.8mm Fixed Lens
GV-TDR4700
$153.40
- Compression : H.265,
- Field of View (Horizontal) : 100°Field of View
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Environmental : Outdoor
Discontinued

Geovision GV-ABL2701 2MP H.265 IR Outdoor Bullet IP Security Camera 84-ABL270W-G010
GV-ABL2701
$75.99
- Compression : H.264 Plus, H.265, H.264,
- Field of View (Horizontal) : 105°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.7"
Discontinued

Geovision GV-ADR4701 4MP IR H.265 Outdoor Mini Dome IP Security Camera 84-ADR470W-0010
GV-ADR4701
$141.35
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 101°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IK10 IP66
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"

Geovision GV-Mount211P Wall Mount Bracket Kit - 81-MT211P0-0001
GV-Mount211P
$42.49
- Mount Type : Wall Mount

Geovision GV-AVD2700 2MP IR H.265 Outdoor Dome IP Security Camera - 84-AVD270W-0010
GV-AVD2700
$165.57
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 30°Field of View 108°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.9" Sensor
- Protection Code : IK10 IP67
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.9"
Discontinued

Geovision GV-EFD2700-0F 2MP H.265 IR Indoor Mini Dome IP Security Camera 84-EFD2700-0010
GV-EFD2700-0F
$117.52
- Compression : H.264 Plus, H.265, H.264,
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.7" Sensor
- Color : White
- Environmental : Indoor
- Sensor Size : 1/2.7"
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-EBD4700 4MP H.265 Low Lux IR Eyeball Dome IP Security Camera
GV-EBD4700
$145.05
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 100°Field of View
- Max. FPS and Resolution : 30fps at 2048 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

Geovision GV-EBL2702-2F 2MP H.265 IR Outdoor Bullet IP Security Camera 84-EBL2702-2010
GV-EBL2702-2F
$152.85
- Compression : H.264 Plus, H.265, H.264,
- Field of View (Horizontal) : 73°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Lens Size : 3.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

4 Megapixel InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP7342W-28M
CMIP7342W-28M
$153.23
- Compression : MJPEG, H.264, H.264 Plus, H.265, H.265 Plus,
- Field of View (Horizontal) : 103°Field of View
- Max. FPS and Resolution : 30fps at 2688 x 1520
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
Discontinued

Geovision GV-FER5701 5MP IR H.265 Outdoor Fisheye IP Security Camera
GV-FER5701
$396.61
- Compression : H.265, H.264, MJPEG,
- Field of View (Horizontal) : 180°Field of View
- Max. FPS and Resolution : 30fps at 2592 x 1944
- Lens Type : Fixed Lens
- Lens Size : 1.05mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.5" Sensor
- Protection Code : IP67 IK10 Plus
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.5"
- Aperture : F2.8
- Audio Support : Built-in Microphone
Discontinued

Geovision GV-BL4713 4MP IR H.265 Outdoor Bullet IP Security Camera
GV-BL4713
$527.47
- Compression : MJPEG, H.264, H.265,
- Field of View (Horizontal) : 38°Field of View 102°Field of View
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/3"
