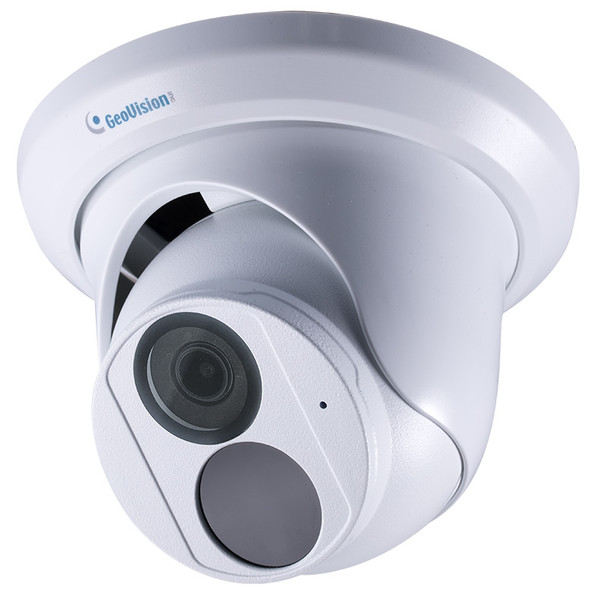

Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 84-EBD274W-0010

Brand: Geovision
Part Number: 84-EBD274W-0010
Write a Review
Check other similar products:
Discontinued
  • Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 1
  • Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 2
  • Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 3
  • Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 3 Years Warranty

? Help me pick a security camera

Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 113°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IP67
  • Environmental : Outdoor
  • Aperture : F2.0
  • Audio Support : Built-in Microphone

Description

Geovision GV-EBD2704 2MP Night Vision Outdoor Eyeball IP Security Camera with 2.8mm Fixed Lens, Built-in Microphone, H.265 - 84-EBD274W-0010

EBD2704 is an outdoor, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Key Features:

  • 1/2.7" progressive scan low lux CMOS sensor
  • Min. illumination at 0.01 lux
  • Dual streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 1920 x 1080
  • 2.8mm Fixed Lens, Fixed Iris, 113 degree FOV, Aperture: F/2.0
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Intelligent IR
  • IR distance up to 30 m (100ft)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Packing List:

  • GV-EBD2704 Eyeball Dome
  • Waterproof Rubber Set
  • Screw kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Notes:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Analytics:
Motion Detection
Aperture:
F2.0
Audio Support:
Built-in Microphone
Camera Style:
Eyeball
Compression:
H.265 H.264 MJPEG
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
113
Image Settings:
Privacy Mask
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
100
Night Vision Type:
Night Vision (IR)
Product Series:
Geovision GV-EBD Series
Protection Code:
IP67
Resolution:
2MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Technology:
Network (IP)
Warranty:
2-year Manufacturer Warranty
