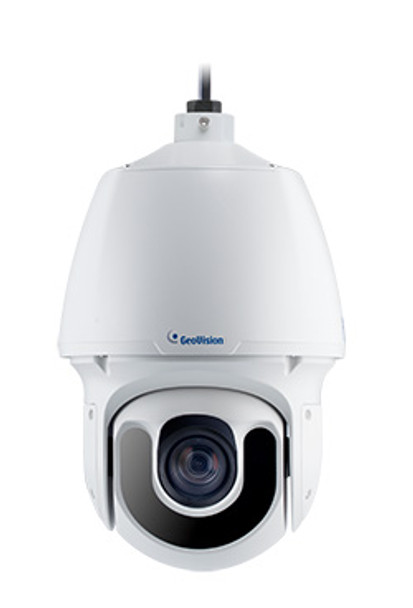

Geovision GV-SD2322-IR (22x) 2MP IR Outdoor Speed Dome IP Security Camera

Geovision GV-SD2322-IR (22x) 2MP IR Outdoor Speed Dome IP Security Camera

The GV-SD2322-IR is an outdoor network PTZ camera that offers 22x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at 30 fps. In low-light environments, night vision is enhanced with its high power LEDs, which allow up to 150 m (492ft) effective IR distance.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capacity. PTZ functions such as Preset, Sequence, Auto Pan, Cruise and Patrol can be programmed and activated by schedule. The GV-SD2322-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

Key features:

• 1/2.8" progressive scan low lux CMOS sensor
• Min. illumination at 0.01 lux (B/W) and 0.03 lux (color)
• Triple streams from H.264 and MJEPG
• Up to 30 fps at 1920 x 1080
• 22x optical zoom and unlimited digital zoom
• Intelligent IR
• IR distance up to 150 m (492ft)
• Day and night function (with removable IR-cut filter)
• Two sensor inputs and one alarm output
• Wide Dynamic Range (WDR)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP66)
• Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
• Support for TV-out
• Two-way audio
• Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
• DC 24V / AC 24V
• Pan 360° endlessly
• Tilt from -15° to 195°
• Pan preset speed at up to 300° /sec and tilt at 240° /sec
• PTZ movement (Preset, Sequence, Auto Pan, Cruise and Patrol)
• PTZ patrol by schedule
• Auto focus
• 3D noise reduction
• Motion detection
• Privacy mask

*The resolutions of stream 1 and 2 both must meet the requirements noted under Specifications.
