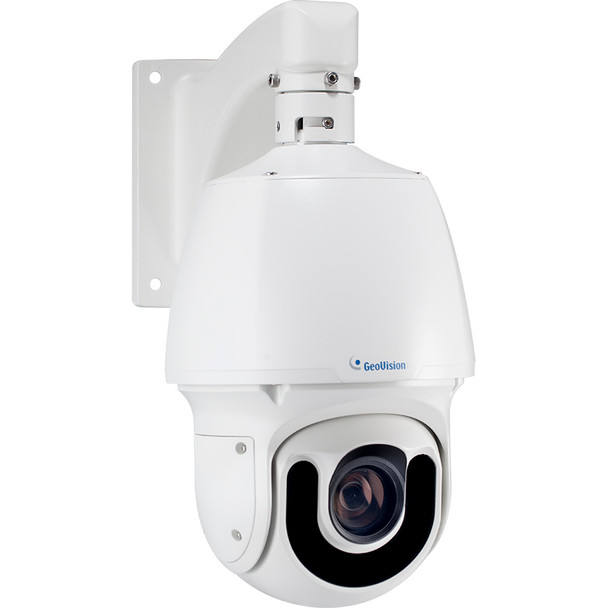

Geovision GV-SD3732-IR 3MP IR H.265 Outdoor PTZ Speed Dome IP Security Camera

Geovision GV-SD3732-IR 3MP IR H.265 Outdoor PTZ Speed Dome IP Security Camera

The GV-SD3732-IR is an outdoor network PTZ camera that offers 33x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2048 x 1536 at 30 fps. In low-light environments, night vision is enhanced with its high power LEDs, which allow up to 150 m (492ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The GV-SD3732-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capacity. PTZ functions such as Preset,Patrol, Sequence, Auto Pan, and Cruise can be programmed and activated by schedule. The GV-SD3732-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

Key Features:

• 1/2.8" progressive scan low lux CMOS sensor
• 4.5~148.5mm Lens
• Horizontal FOV62.93°~3.51°
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2048 x 1536, 60 fps at 1920 x 1080
• 33x optical zoom and unlimited digital zoom
• Intelligent IR
• IR distance up to 150 m (500ft)
• Day and night function with IR-cut filter
• Two sensor inputs and one alarm output
• Wide Dynamic Range Pro (WDR Pro)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP66)
• Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
• TV-out support
• Two-way audio
• Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
• DC 24V / AC 24V
• Pan 360° endlessly
• Tilt from ‐15° to 90°
• Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
• PTZ movement (Preset, Auto Pan and Patrol)
• PTZ patrol by schedule
• Smart settings (Cross line, Intrusion, Auto tracking)
• Intelligent Mark
• Auto focus
• 3D noise reduction
• Motion detection
• Privacy mask
• ONVIF (Profile G, S, T) conformant
• CE, FCC, RoHS, UL compliant

Optional Accessories:

• GV-Mount104 Straight Tube Kit
• GV-Mount105 Straight Tube and Junction Box Kit
• GV-Mount 208-3 Swan Neck Mount
• GV-Mount210 Pendant Tube
• GV-Mount300-1 Convex Corner Adapter Kit
• GV-Mount310-1 Concave Corner Adapter Kit
• GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6")
• GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5")
• GV-Mount501 Convex Corner Box Mount
• GV-Mount702 Extension Tube

Note:

• No memory card slot & local storage function for Argentina.
• Specifications are subject to change without notice.
