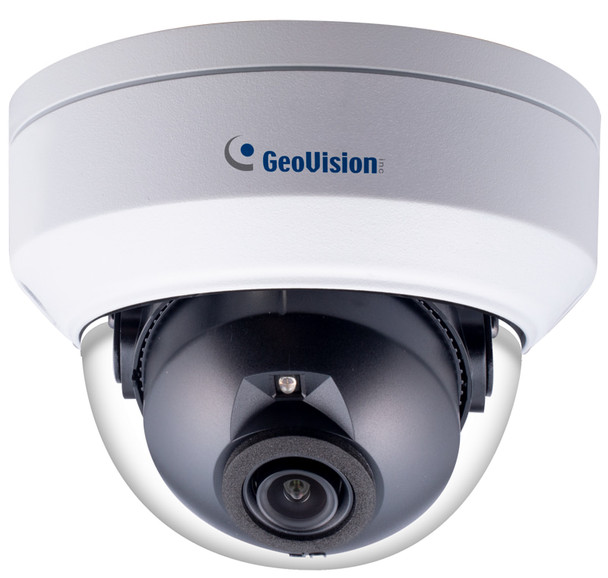

Geovision GV-TDR2704-4F 2MP H.265 Night Vision Outdoor Mini Dome IP Security Camera with 4mm Fixed Lens

Brand: Geovision
Part Number: GV-TDR2704-4F
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Geovision GV-TDR2704-4F 2MP H.265 Night Vision Outdoor Mini Dome IP Security Camera with 4mm Fixed Lens
  • Geovision GV-TDR2704-4F 2MP H.265 Night Vision Outdoor Mini Dome IP Security Camera with 4mm Fixed Lens
  • Geovision GV-TDR2704-4F 2MP H.265 Night Vision Outdoor Mini Dome IP Security Camera with 4mm Fixed Lens

? Help me pick a security camera

Technical Support Technical Support
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 91°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IP67 IK10
  • Environmental : Outdoor
  • Aperture : F2.0

Description

Geovision GV-TDR2704-4F 2MP H.265 Night Vision Outdoor Mini Dome IP Security Camera with 4mm Fixed Lens

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.

Key Features:

  • 1/2.7" progressive scan low lux CMOS sensor
  • 4mm fixed lens, 91 degree field of view
  • Min. illumination at 0.01 lux
  • Dual streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 1920 × 1080
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage
  • 3-axis mechanism (pan / tilt / rotate)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Vandal resistance (IK10)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant
Packing List:
  • GV-TDR2704 Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Torx Wrench
  • Drill Template Paster
  • Download Guide

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Analytics:
Motion Detection
Aperture:
F2.0
Camera Style:
Mini Dome
Certifications:
FCC CE RoHS
Compatible Integration (API):
ONVIF Profile G ONVIF Profile S ONVIF Profile T
Compression:
H.265 H.264 MJPEG
Day/Night:
Day (Color) Night (B/W)
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
91
IR LED Quantity:
1
Image Settings:
Privacy Mask
Iris:
Fixed Iris
Languages:
English German French Czech Italian Russian Portuguese
Lens Mount:
M12
Lens Size:
4mm
Lens Type:
Fixed Lens
Max Power Consumption:
5 Watts
Max. FPS and Resolution:
30fps at 1080P
Minimum Illumination (B/W):
0 lux with IR illumination on
Minimum Illumination (Color):
0.01 Lux at F2.0 AGC ON
Night Vision Range (ft):
100
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Operating Humidity:
10% to 90% (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
12 VDC 1.25A PoE (IEEE 802.3af)
Protection Code:
IP67 IK10
Resolution:
2MP
S/N Ratio:
52 dB
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB WDR Pro
