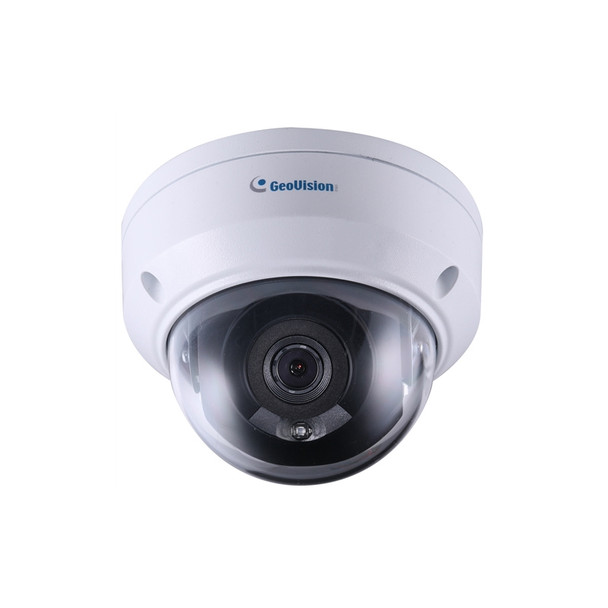

Geovision GV-TDR4700 4MP IR H.265 Outdoor Dome IP Security Camera with 2.8mm Fixed Lens

Brand: Geovision
Part Number: GV-TDR4700
Write a Review
Replacement: 84-TDR483W-2F10
Check other similar products:
Discontinued

Help me pick a security camera

Technical Support Technical Support
  • Compression : H.265,
  • Field of View (Horizontal) : 100°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP67
  • Environmental : Outdoor

Description

Geovision GV-TDR4700 4MP IR H.265 Outdoor Dome IP Security Camera

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Key features:

  • 4MP
  • 2.8mm Fixed Lens
  • FOV: 105 degree
  • 1/3" progressive scan low lux CMOS sensor
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Intelligent IR
  • IR distance up to 30 m (98.4ft)
  • Day and night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Vandal Resistant (IK10)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR Pro)
  • ONVIF (Profile S、Profile G) conformant
Optional Accessories:
  • GV-Mount211P Wall Mount Bracket
  • GV-Mount213 Wall / Ceiling Box Mount
  • GV-Mount420 Pole Mount Bracket
  • GV-PA191 PoE Adapter
Replacement of: GV-TDR4700-1F

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
125-TDR4700-0F10 84-TDR4700-0F10 VC-CAG-TDR4700
Audio Capability:
Two-Way Audio
Camera Style:
Dome
Compression:
H.265
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
100
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
100
Protection Code:
IP67
Resolution:
4MP
SD Card Support:
SD Card Supported
Sensor Size:
1/3"
Sensor Type:
CMOS
Technology:
Network (IP)
