Description

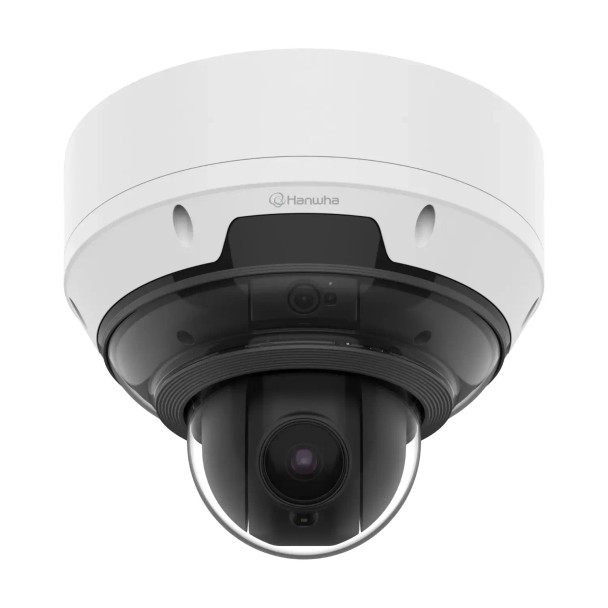

Hanwha Vision PNM-C19183RVTP 5MP Outdoor Multi-sensor IP Security Camera with 1 x 5.42-98.29mm and 3 x 2.4 mm Lens, 18x Optical Zoom and Built-In IR
The Hanwha Vision PNM-C19183RVTP represents the pinnacle of surveillance technology with its innovative all-in-one design featuring 3 fixed 5MP channels plus a 4MP 18x PTZ camera in a compact form factor. This advanced multi-sensor security camera delivers comprehensive coverage and intelligent monitoring capabilities powered by AI analytics for maximum security effectiveness.
With its robust IP66/IK10 weatherproof rating and wide operating temperature range from -40°C to +55°C (-40°F to +131°F), this camera performs reliably in the harshest outdoor environments. The built-in IR illumination provides clear night vision up to 15 meters, ensuring 24/7 surveillance capability regardless of lighting conditions.
The camera features advanced AI-powered analytics including object detection for persons, faces, vehicles, and license plates, along with intelligent video analytics such as virtual line crossing, area intrusion detection, and business intelligence capabilities like people and vehicle counting. The secure element with FIPS 140-3 level 3 and CC EAL6+ certification ensures enterprise-grade cybersecurity protection.
Key Features:
- All-in-one multi-sensor design with 3x 5MP fixed cameras plus 4MP 18x PTZ camera; maximizes coverage while minimizing installation points and infrastructure costs.
- 18x optical zoom with 5.42-98.29mm motorized lens; enables detailed identification of subjects at long distances with precision focus control.
- AI-powered analytics with object detection and business intelligence; provides intelligent event filtering and valuable operational insights for enhanced security management.
- IP66/IK10 weatherproof rating with -40°C to +55°C operating range; ensures reliable performance in extreme weather conditions and vandal-resistant outdoor deployment.
- Built-in IR illumination up to 15 meters with 850nm wavelength; delivers clear night vision surveillance without additional lighting infrastructure.
- PoE++ power (IEEE 802.3bt Type 3) with 42W consumption; simplifies installation with single cable for both power and data transmission.
- Advanced cybersecurity with FIPS 140-3 level 3 secure element; protects against cyber threats with enterprise-grade encryption and authentication.
- Auto tracking and smart zoom capabilities; automatically follows and zooms in on detected objects for enhanced situational awareness.
Downloads
Additional Information
Camera Style:
|
Multi-sensor
PTZ
Dome
|
Compression:
|
H.265
H.264
MJPEG
|
Dimensions:
|
9.9x8.35x9.9in
|
Power Supply:
|
PoE++ (IEEE 802.3bt)
|
Protection Code:
|
IK10
IP66
|
Resolution:
|
5MP
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
|
