Description

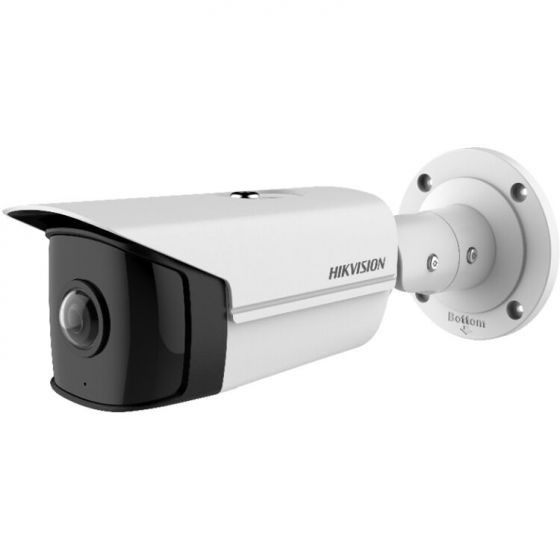

Hikvision DS-2CD2T45G0P-I 4MP Outdoor Bullet IP Security Camera with 1.68mm Lens and Built-In IR
The Hikvision DS-2CD2T45G0P-I is a 4MP outdoor bullet IP security camera that stands out for its ultra-wide coverage and high-resolution performance. Featuring a 1.68mm fixed lens, this camera provides a full 180-degree horizontal field of view, making it an ideal choice for monitoring expansive areas such as parking lots, warehouses, or large storefronts with a single device. It utilizes a 1/2.7 inch progressive scan CMOS sensor to deliver sharp images at a resolution of 2688 x 1520, ensuring that every detail is captured clearly even in complex environments. To handle challenging lighting conditions, the camera is equipped with 120dB True Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR), which work together to balance bright and dark areas and eliminate image graininess. For nighttime surveillance, the built-in infrared illuminators provide visibility up to 20 meters in total darkness, supported by an IR cut filter for seamless day-to-night transitions. The rugged metal housing is rated IP67, ensuring the camera remains fully operational against heavy rain, dust, and extreme temperatures ranging from -30°C to 60°C. Additionally, the device supports advanced H.265+ video compression to significantly reduce bandwidth and storage requirements without sacrificing video quality. This camera is perfectly suited for business owners and facility managers who need comprehensive perimeter security and wide-angle situational awareness without the blind spots typical of standard lenses.
Key Features:
- 4MP high resolution; provides clear and detailed images at a maximum resolution of 2688 x 1520.
- 1.68mm ultra-wide angle lens; delivers a 180-degree horizontal field of view for maximum area coverage.
- 120dB True WDR; ensures high image quality by balancing exposure in scenes with both bright and dark areas.
- Built-in IR illuminators; offers clear night vision imaging for distances up to 20 meters.
- IP67 weather resistance; provides durable protection against water and dust for reliable outdoor use.
- H.265+ video compression; optimizes storage space and network bandwidth efficiency.
- Smart Event features; includes line crossing, intrusion, unattended baggage, and face detection for proactive security.
- Built-in micro SD slot; supports local storage up to 256 GB for data redundancy.
- 1/2.7 inch Progressive Scan CMOS; captures smooth video of moving objects at 25 frames per second.
- 3D Digital Noise Reduction; reduces image noise to provide cleaner video in low-light environments.
- Angle adjustment; allows for flexible positioning with 360-degree pan, 90-degree tilt, and 360-degree rotation.
- Multiple power options; supports both 12 VDC and Power over Ethernet (802.3at) for flexible installation.
- Backlight Compensation (BLC) and Highlight Compensation (HLC); improves visibility by adjusting for strong light sources.
- Electronic Image Stabilization (EIS); helps maintain a steady image in environments prone to minor vibrations.
- ONVIF support; ensures compatibility with a wide range of third-party network video recorders and software.
Downloads
Additional Information
|
Alternative SKUs:
|
DS-2CD2T45G0P-I(1.68MM)
HX-BL2T45G0P
|
|
Analytics:
|
Line Crossing
Intrusion Detection
Face Detection
|
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
REACH
RoHS
FCC
RCM
KC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ISAPI
SDK
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
11.81
|
|
Dimensions:
|
105 x 278 mm (4.1 x 10.9 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
180
|
|
Field of View (Horizontal):
|
180
|
|
Field of View (Vertical):
|
101
|
|
Identify (ft):
|
1.31
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Electronic Image Stabilization (EIS)
Lens Distortion Correction (LDC)
|
|
Image Settings:
|
Brigthness
Saturation
Contrast
Sharpness
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
1.68mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
8.7 Watts
|
|
Max. FPS and Resolution:
|
25fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.028 lux at F2.0 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
4.59
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Privacy Mask:
|
4 area
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
2.62
|
|
Region of Interest (ROI):
|
1
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
